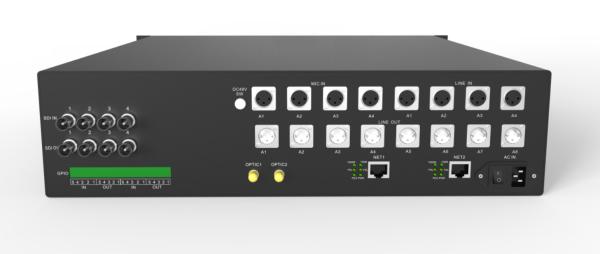

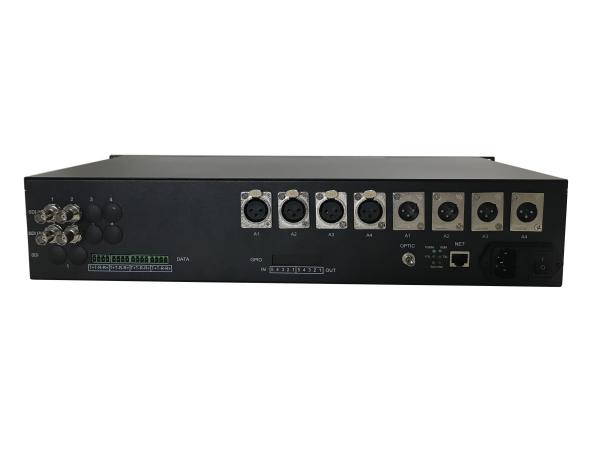

Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Specifications
Brand Name :
Fiber Linker
Model Number :
FL4044
Certification :
CE FCC
Place of Origin :
China
MOQ :
1Pair
Payment Terms :
TT in advance
Supply Ability :
30 pairs per week
Delivery Time :
7 working days
Packaging Details :
Carton
Name :
Bidirectional 3G-SDI Fiber Extender with phantom mic and line audio/GPIO/Gigabit
Channels :
4-ch forward, 2-ch reverse
Quality :
Broadcast
Line Audio :
12-ch
Fiber :
single core or dual core
Solution :
CWDM
ASI/TS :
Compatible
Data :
RS422, contact closure
Phantom MIC :
4-ch
Gigabit :
2-ch
Description

1. Overview


This 3G-SDI Fiber Extender is a multiple functional SDI to fiber and fiber to SDI box, it is highly performed with bidirectional digital video , bidirectional XLR balance analog line audio, phantom Mic in and out, it also have two Gigabit Ethernet, either Ethernet is 1000M bandwidth. It is real broadcast quality and it is used by many TV station or broadcast obvan AV transmission


2. Features


Our 3G SDI series support hot plug, stand-alone, 1U rack mount and 4U rack mount, we also could add other business or functions according to the requirements of customers. OEM&ODM is acceptable. If you have any requirements about video transmission over fiber optic, just contact us, we will supply the best solution


3. Applications

Remote OB Van/Truck
Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
4. Ordering Information
3G-SDI Fiber Optic Extender

FL4024DAP : 4-ch Forward 3G-SDI/ASI, 2-ch reverse 3G-SDI/ASI, 4-ch bidirectional mono XLR analog audio,2-ch duplex RS422, 1-ch 1000M Ethernet, 1-ch bidirectional contact closure, single fiber, single mode, ST, 20KM,2U rack

5. Specifications

3G SDI Input

3G SDI Output

channels

4

Channels

4

Signal standard

SMPTE 424/425M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -2.97Gb/s)

Signal level

800mV nominal

Reflection loss

>15DB

Rise/drop time

200ps nominal

equalization

1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden 1694Acable

Reflection loss

> 15dB

connector

75Ω BNC

Overshoot

10% amplitude

Jitter: < 0.2UI


Optic

Others

Channels

2

Transmission distance

20KM

Type

single mode (multimode optional)

Operating temperature

-45°C~+50°C

Wavelength

1310nm /1550nm

Power

1A@12VDC

Reflection loss

> 15dB

Average time trouble-free

>100000 hours

Connector

FC/PC (SC/PC optional)

Case

1U rack mount

Audio(optional)

Data(optional)

Channels

8-ch bidirecitonal audio(XLR)

Channels

4-ch data(terminal block)

Max.input/output level

-+15 dBu

Data rate

-+15 dBu

Frequency Response

20Hz-24KHz,±0.1dB

Connector

terminal block

SNR

85dB(A weighted)

Crosstalk

< -90dB












Keyword: SDI fiber converter , SDI fiber optical transceiver, SDI fiber extender, SDI fiber transmitter
