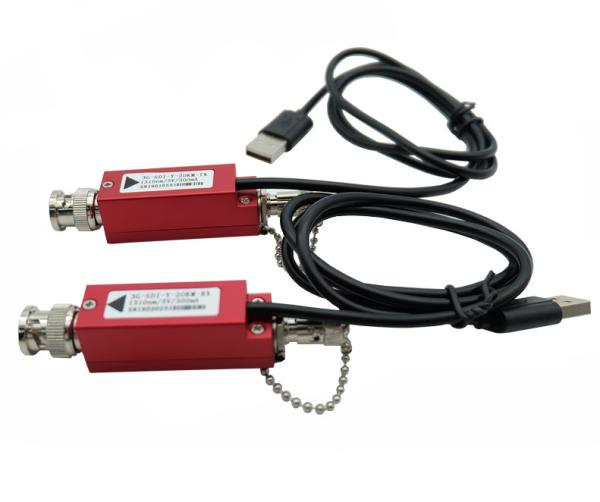

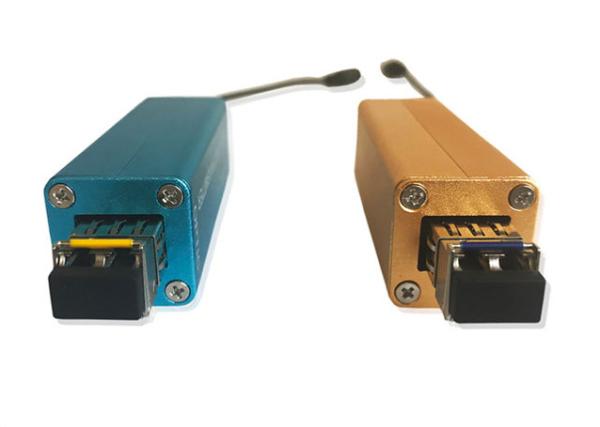

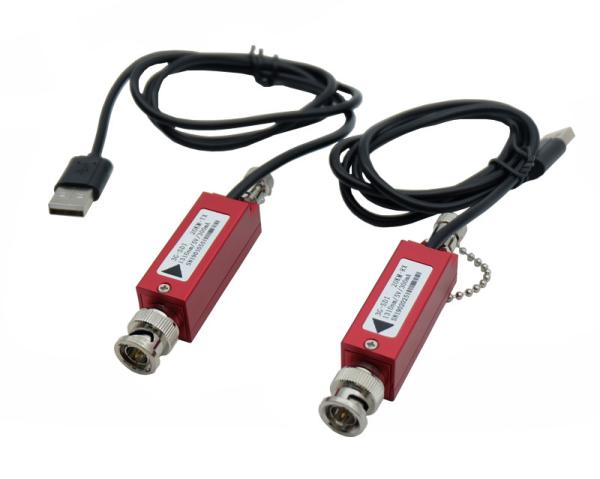

Broadcast miniature Gear Rattler HD-SDI fiber optical extender with pahological
Broadcast miniature Gear Rattler HD-SDI fiber optical extender with pahological
Broadcast miniature Gear Rattler HD-SDI fiber optical extender with pahological
Broadcast miniature Gear Rattler HD-SDI fiber optical extender with pahological
Broadcast miniature Gear Rattler HD-SDI fiber optical extender with pahological
Broadcast miniature Gear Rattler HD-SDI fiber optical extender with pahological
Specifications
Brand Name :
Fiber Linker
Certification :
CE FCC
Place of Origin :
China
MOQ :
1pair
Payment Terms :
TT in advance
Delivery Time :
7days
Packaging Details :
Cartoon
Signal :
HD-SDI
Support :
pathological sdi signal
Size :
MINI KIT
Fiber :
ST
Distance :
10KM
Power :
USB
OEM :
suppport
Description

1. Overview

The miniature gear rattler HD-SDI fiber optical extender is the smalles size for camera and projector feeds. it could be powered by USB directly, easy to install, could transmit one HD-SDI digital video signals to 20KM over one ST optical fiber cable. support SDI pathological test, It is broadcasting quality, could compatible with ASI, TS stream.

2. Features

Our SDI extenders over fiber optic cable is broadcast quality widely used by many tv system integrators from Americas and Europe countries. We could develop and produce fiber optic devices according to your real requirements. Our advantage is to make produciton flexible to meet various specifications.

3. Specifications

HD-SDI Input

HD-SDI Output

channels

1

Channels

1

Signal standard

SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -2.97Gb/s)

Signal level

800mV nominal

Reflection loss

>15DB

Rise/drop time

200ps nominal

equalization

1694Acable,>100m@2970Mbps,Belden

1694Acable,>200m@1485Mbps,Belden 1694A cable, >350m@270Mbps,Belden

Reflection loss

> 15dB

connector

75Ω BNC

Overshoot

10% amplitude

Jitter: < 0.3UI

Optic

Others

Channels

1

Transmission distance

20KM

Type

single mode (multimode optional)

Operating temperature

-45°C~+50°C

Wavelength

1310nm /1550nm

Power

1A@12VDC

Reflection loss

> 15dB

Average time trouble-free

>100000 hours

Connector

FC/PC (SC/PC optional)

Case

Stand alone( 1U rack mount optional)

4. Applications

Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5. Ordering Information
FLS10R1MINI) : 1-ch 3G-SDI,single fiber, ST, 10KM, MINI kit.
