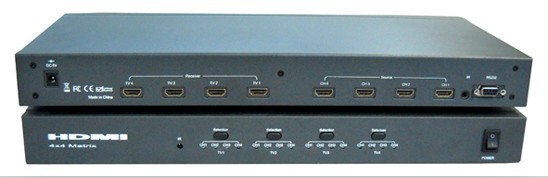

4K60Hz HDMI2.0 4X4 Seamless HDMI Matrix Switcher with Video Wall Function
4K60Hz HDMI2.0 4X4 Seamless HDMI Matrix Switcher with Video Wall Function
4K60Hz HDMI2.0 4X4 Seamless HDMI Matrix Switcher with Video Wall Function
4K60Hz HDMI2.0 4X4 Seamless HDMI Matrix Switcher with Video Wall Function
Specifications
Brand Name :
Fiber Linker
Model Number :
FL4K44H
Place of Origin :
China Beijing
MOQ :
1
Payment Terms :
Western Union, T/T
Supply Ability :
100PCS per month
Delivery Time :
5-8 days
Packaging Details :
Carton
Name :
4K60Hz HDMI2.0 4X4 Seamless HDMI Matrix Switcher with Video Wall Function
HDMI :
4K@60Hz 4:4:4 HDMI2.0 version
Channels :
4 input and 4 output
Switching :
Seamless
Video wall :
Support
Control :
Web, Panel, IR, IP
audio matrix and IR matrix function :
Support
Description

Description

FL4K44H is a high-performance seamless UHD HDMI matrix switcher with 4x HDMI inputs and 4x HDMI outputs. The 18Gbps 4x4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix and Audio matrix. IR matrix routing follows the video routing. Audio extract and insert are supported. The product supports CEC management and strong video wall processing

Features

4 channel HDMI input and 4-ch HDMI output

HDMI 2.0 and HDCP 2.2 compliant

Support 18 Gbps video bandwidth
Support video resolution up to 4K60 4:4:4
Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Support seamless switching, support video wall function
Support CEC management
Support audio matrix and IR matrix function
Support external L/R audio insert on HDMI stream
Support EDID management
Support front panel, RS232, TCP/IP (LAN 10M/100M) control , web control

Specification

Technical
HDMI Compliance HDMI 2.0
Video Bandwidth 18Gbps
Video Resolution Up to 4K60 4:4:4
Color Space RGB YCbCr 4:4:4/4:2:2
HDMI Amplitude T.M.D.S +/- 0.4Vpp
Differential Impedance 100±15ohm
ESD Protection Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
RS232/Ethernet Control
Baud rate and Protocol Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking
Ethernet IE10.0+,HTML5
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 430mm (W)×220mm (D)×44mm (H)
Weight 5Kg
Power Supply AC 110 - 240V
Power Consumption 60W (Max)
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity 10%~50% RH (non-condensing

Application

Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
Digital FPDs and projectors in conference room and auditorium
Kiosk with digital FPDs showing full motion graphic displays from remote systems
PDP displays for information in public sites
LED signboards in streets and in stadiums

4K60Hz HDMI2.0 4X4 Seamless HDMI Matrix Switcher with Video Wall Function
