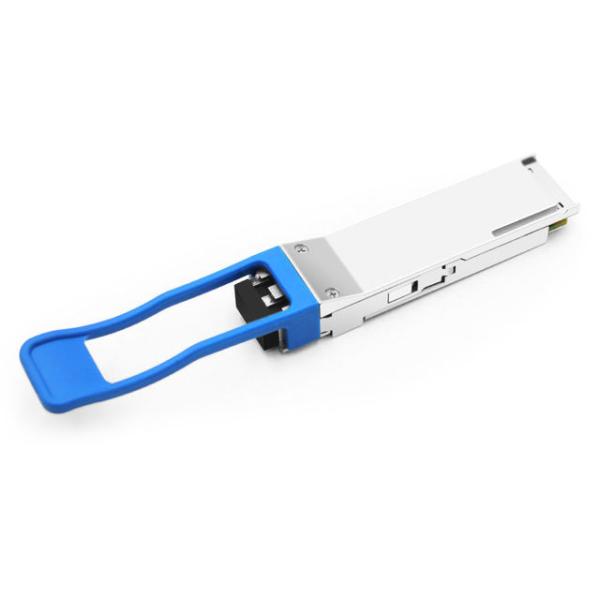

Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Specifications
MOQ :
1
Place of Origin :
China
Description

Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L Transceiver Module (1310nm SMF 1km LC DDM)

Product Details

Arista Networks CompatibleQSFP-40G-LRL4Vendor NameFIBER MALL
Form FactorQSFP+Max Data Rate40Gbps
Wavelength1310nmMax Distance2km
ConnectorLC DuplexTransmitter Type4 Lanes CWDM DFB
Cable TypeSMF
Receiver TypePIN
TX Power-7~2.3dBm
Receiver Sensitivity< -12dBm
Protocols40G Ethernet, Infiniband FibreChannel, SATA/SAS3, MSA CompliantOperation Temperature0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module

Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module
Arista Networks QSFP-40G-LRL4 Compatible 40G QSFP+ LR4L 1310nm 1km LC SMF DDM Transceiver Module

Platform Support


Arista 7050TX-128_48Arista 7060XArista 7050SArista 7500RArista 7050QArista 7260XArista 7150Arista 7250QX-64
Arista Networks 7160Arista 7050QX-32_32SArista 7300Arista 7050TArista 7280SEArista 7050SX-128_64Arista 7500
