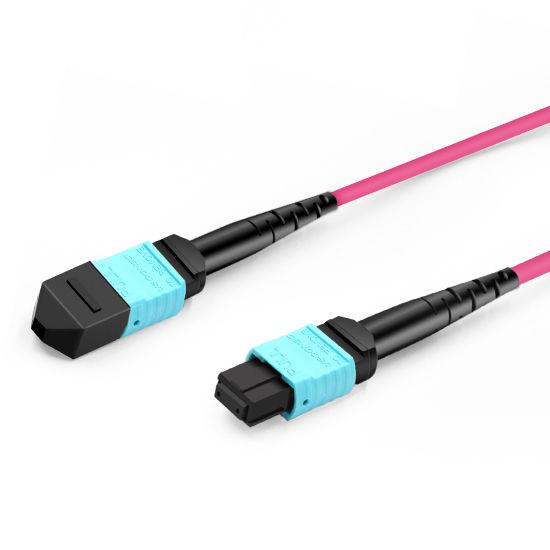

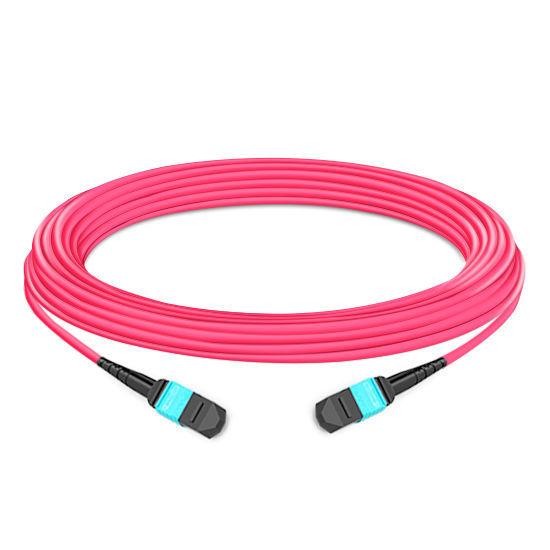

5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
5m (16ft) 12 Fibers Female to Female MTP Trunk Cable Polarity B LSZH Multimode OM4 50/125
Specifications
MOQ :
1
Description

12 Fibers Multimode OM4 MTP Patch Cable 5M (MTP to MTP Cable)

MTP fiber optic cable are designed for high-density application which offers excellent benefits in terms of installation time and space saving. The cable assemblies are used in data center, telecom and backbone application.

Fiber Mall' s 12 fibers MTP Patch cord, using Genuine MTP Connectors (US Conec) with ultra low insertion loss, Multimode 50/125 micron OM4 (Aqua/Violet) fiber cables, are widely applied in 40G/100G fiber networks connectivity.

Product Details

Connector A MTP Female (US Conec) Connector B MTP Female (US Conec)
Fiber Type OM4 50/125μm Multimode Wavelength 850/1300nm
Fiber Count 12 Fibers Distance 5m (16ft)
Glass Fiber Corning ClearCurve® Cable Jacket LSZH
Polish Type UPC to UPC Minimum Bend Radius 7.5mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥20dB
Attenuation at 850nm ≤2.3 dB/km Attenuation at 1300nm ≤0.6 dB/km
Cable Diameter 3.0mm Fiber Color Aqua/Violet
Installation Tensile Load 66 N Long-Term Tensile Load 50 N
Operating Temperature -10°C to +70°C Storage Temperature -40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
