Specifications
MOQ :
1
Description

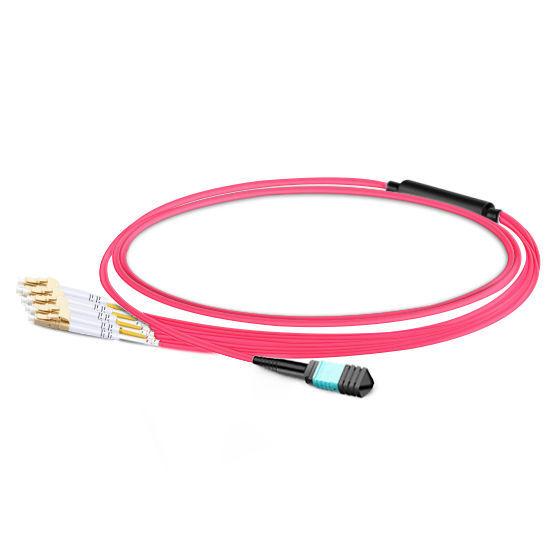

8 Fibers MPO to LC Breakout Cable, 2M (Multimode OM4 50/125 MPO Fanout Cable)

MPO Breakout Cable are designed for high-density application which offers excellent benefits in terms of installation time and space saving. The Cable assemblies are used in 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP28 SR4 to 25G SFP28 SR optics direct connection and high-density data center applications.

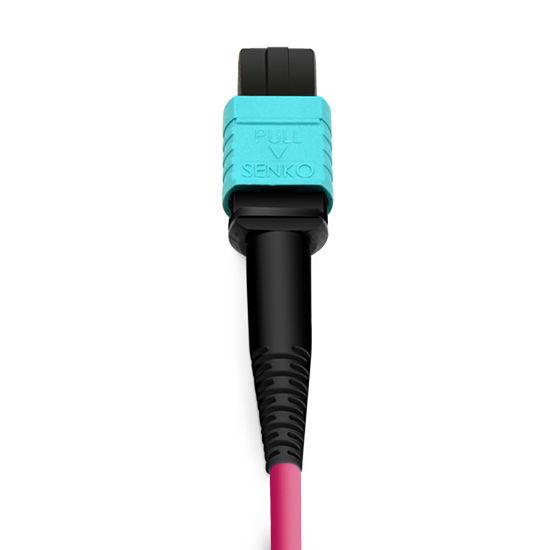

Fiber Mall' s Multimode MPO to LC/UPC Fanout Cable uses SENKO MPO Connectors, corning MMF Multimode OM4 50/125 fiber and features Aqua/Violet, LSZH. The fanout side has 4 LC/UPC duplex connectors. Elite MPO and discrete premium connector Support 40GBASE-SR4 in applicable parallel optics networks compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard.

Product Details

Connector A MPO Female (SENKO) Connector B LC UPC Duplex
Fiber Type OM4 50/125μm Multimode Wavelength 850/1300nm
Fiber Count 8 Fibers Distance 2m (7ft)
Glass Fiber Corning ClearCurve® Cable Jacket LSZH
MPO Connector IL 0.75dB Max (0.35dB Typ.) LC Connector IL ≤0.2dB
MPO Connector RL ≥20dB LC Connector RL ≥20dB
Attenuation at 850nm ≤2.3 dB/km Attenuation at 1300nm ≤0.6 dB/km
Cable Diameter 3.0mm Fiber Color Aqua/Violet
Fan-Out Diameter 2.0mm Minimum Bend Radius 7.5mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Operating Temperature -10°C to +70°C Storage Temperature -40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
