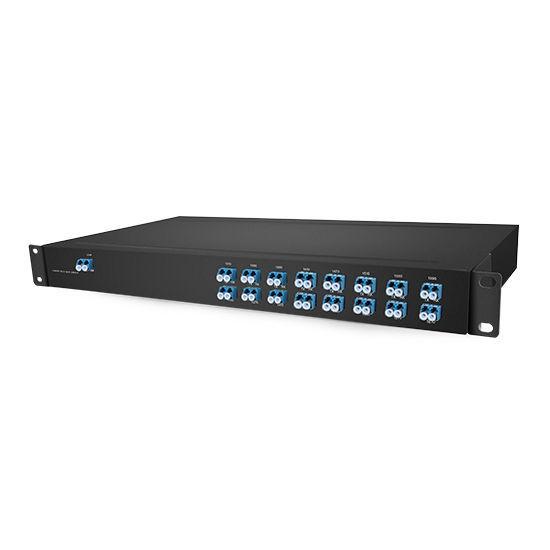

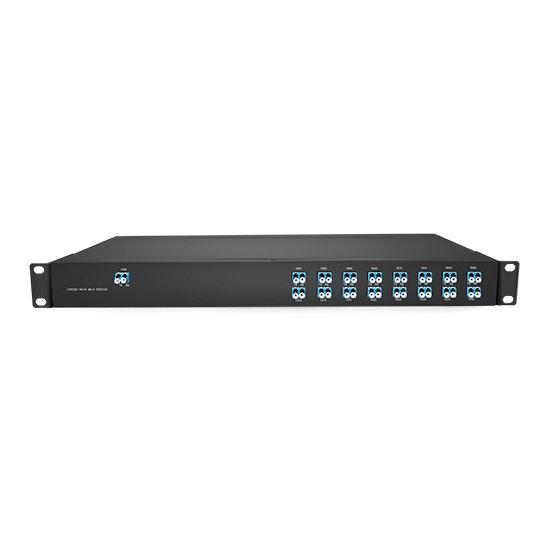

Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
Specifications
MOQ :
1
Description

16 Channels 1XX0 to 1XX0nm Customized LC/UPC Dual Fiber CWDM MUX DEMUX 1U Rack Mount Chassis

Product Details

Operating Wavelength 16 Channels 1270-1610nm Channel Space 20nm
Passband ITU±6.5nm Insertion Loss ≤3.6dB
Directivity ≥ 50dB Return Loss ≥45dB
Pass Band Ripple ≤ 0.5dB Fiber Type SMF-28e or Customer Specified
Adjacent Channel Isolation ≥30dB Non-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dB Polarization Mode Dispersion ≤0.1ps
Maximum Optical Power 500mW Dimensions (HxWxD) 44x482x230mm
Operating Temperature -20°C～+70°C Storage Temperature -40°C～+85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Passive CWDM Double Fiber Mux & Demux Module 16 CH (XX-XXnm Customer Specified) LC/UPC 1U Rack
