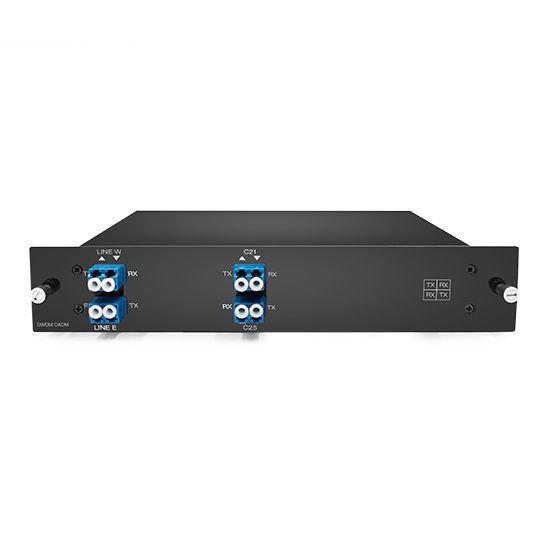

Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Passive DWDM Double Fiber OADM Module 2 DWDM Wavlengths (100GHz Spacing) LGX BOX
Specifications
MOQ :
1
Description

2 Channels DWDM OADM Dual Fiber East and/or West LGX BOX

Product Details

Operating Wavelength 2 Channels C21-C60 Channel Spacing 100GHz
Passband ITU±0.11 Insertion Loss ≤1.3dB
Directivity ≥50dB Return Loss ≥45dB
Transmission Direction West and/or east Line Type Dual Fiber
Adjacent Channel Isolation ≥30dB Non-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dB Polarization Mode Dispersion ≤0.2ps
Maximum Optical Power 500mW Dimensions (HxWxD) 39x208x200mm
Operating Temperature -5°C～+75°C Storage Temperature -40°C～+85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
