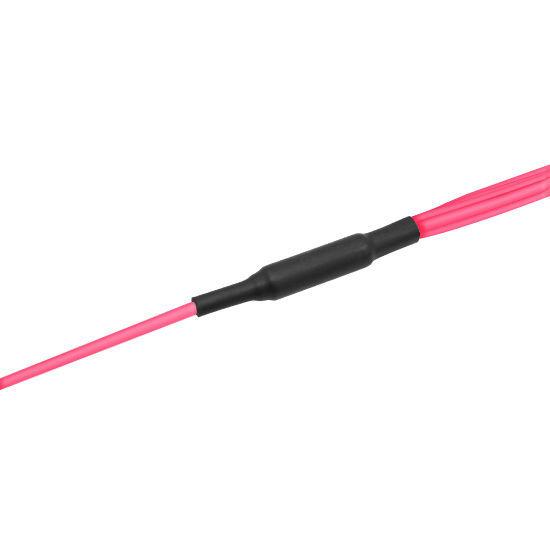

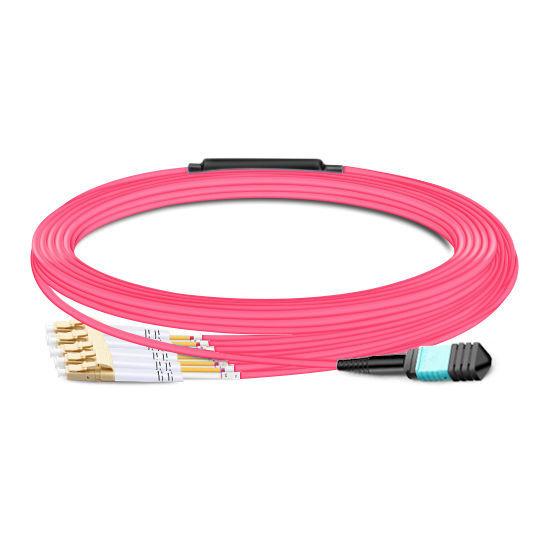

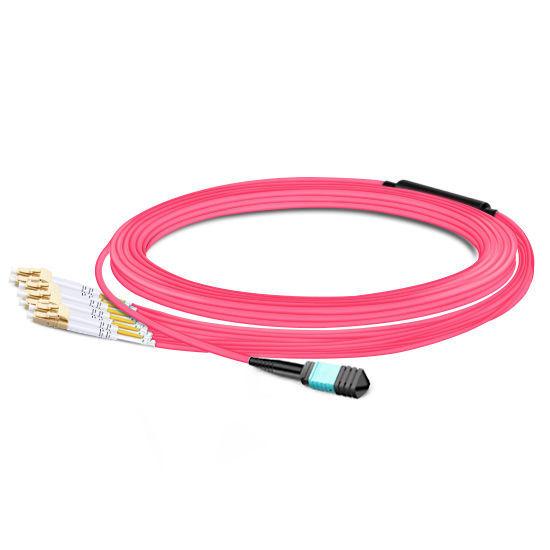

5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
5m (16ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
Specifications
MOQ :
1
Description

Product Details

Connector AMPO Female (SENKO)Connector BLC UPC Duplex
Fiber typeOM4 50/125μm MultimodeWavelength850/1300nm
Fiber Count8 FibersDistance5m (16ft)
Glass FiberCorning ClearCurve®Cable JacketLSZH
MPO Connector IL0.75dB Max (0.35dB Typ.)LC Connector IL≤0.2dB
MPO Connector RL≥20dBLC Connector RL≥20dB
Attenuation at 850nm≤2.3 dB/kmAttenuation at 1300nm≤0.6 dB/km
Cable Diameter3.0mmFiber ColorAqua/Violet
Fan-Out Diameter2.0mmMinimum Bend Radius7.5mm
Installation Tensile Load100 NLong-Term Tensile Load50 N
Operating Temperature-10°C to +70°CStorage Temperature-40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
