Specifications
MOQ :
1
Description

12 Fibers OS2 Single Mode Fiber MTP Patch Cable 10M (MTP to MTP Cable)

MTP fiber optic cable are designed for high-density application which offers excellent benefits in terms of installation time and space saving. The cable assemblies are used in data center, telecom and backbone application.

Fiber Mall' s 12 fibers MTP Patch cord, using Genuine MTP Connectors (US Conec) with ultra low insertion loss, single mode OS2 9/125μm (Yellow) fiber cables, are widely applied in 40G/100G fiber networks connectivity.

Product Details

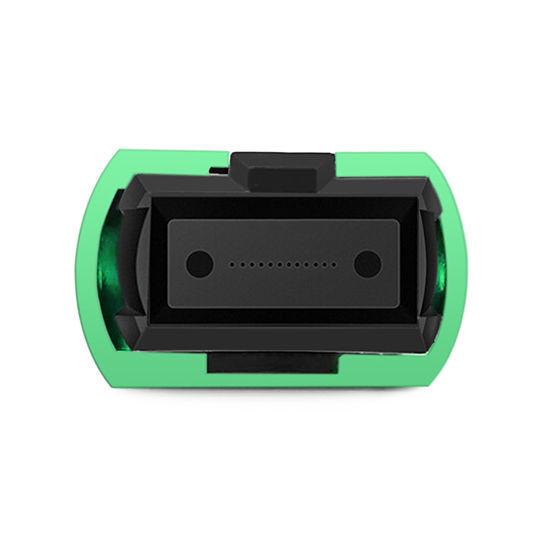

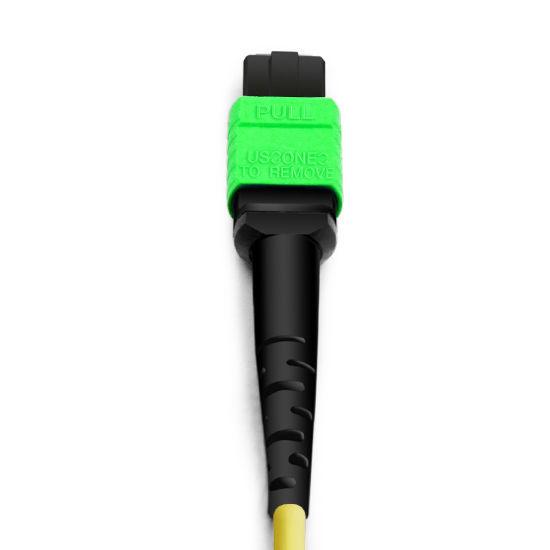

Connector A MTP Female (US Conec) Connector B MTP Female (US Conec)
Fiber Type OS2 9/125μm Single Mode Wavelength 1310/1550nm
Fiber Count 12 Fibers Distance 10m (33ft)
Glass Fiber Corning ClearCurve® Cable Jacket LSZH
Polish Type APC to APC Minimum Bend Radius 10mm
Insertion Loss 0.35dB Max (0.15dB Typ.) Return Loss ≥60dB
Attenuation at 1310nm ≤0.32 dB/km Attenuation at 1550nm ≤0.18 dB/km
Cable Diameter 3.0mm Fiber Color Yellow
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Operating Temperature -10°C to +70°C Storage Temperature -40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
