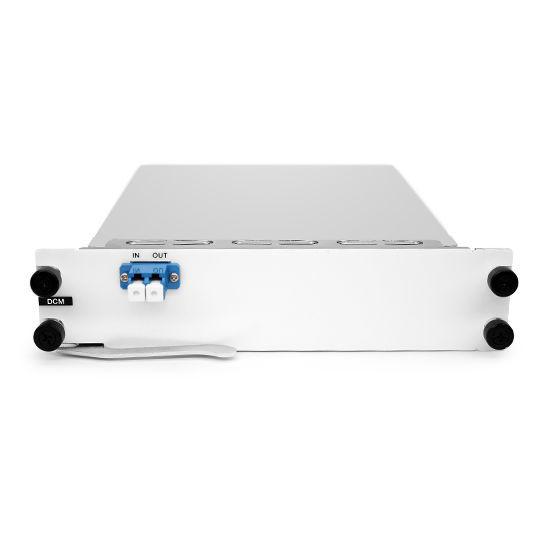

20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
Specifications
MOQ :
1
Description

Dispersion Optical Fiber Module Equivalent G.652 Compensation Distance 20km

Product Details

Compensation Distance 20km Wavelength Range C-Band (1528nm~1564nm)
Dispersion (ps/nm) -340±20 Relative Dispersion Slope 0.004±20%(nm-1)
Insertion Loss ≤3.6 dB Polarization Mode Dispersion ≤0.6ps
Power Consumption 0W Nominal Single-wave Input Optical Power ≤0 dBm
Connector LC/UPC Occupied Slot Number 2 Slots
Working Temperature Range -10 ℃～+60℃ (Typical) Storage Temperature Range -40℃～+85℃

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
20km DCF-Based Passive Dispersion Compensation Module, 3.5dB Low Loss, LC/UPC
