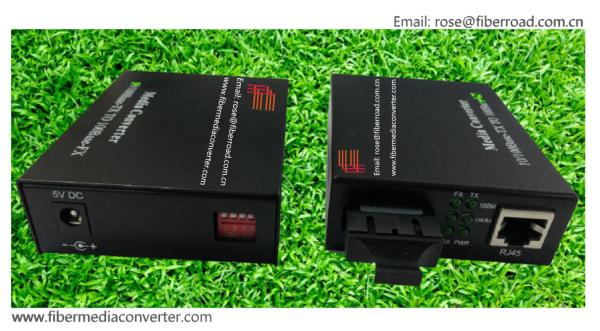

10/100M Fiber Media Converter With Dip Switch , FE TYPE, Support LFP
10/100M Fiber Media Converter With Dip Switch , FE TYPE, Support LFP
Specifications
Brand Name :
FIBERROAD
Model Number :
FR-MC12UD-XXXX
Certification :
CE,FCC.ROHS
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Exw. Shenzhen
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Delivery Time :
3-5days
Packaging Details :
1CTN / 50PCS / 43*28*37CM / 17.20 KGS
Dip Switch :
Support LFP Function
Description
  • 100 Mpbs fiber media converter support Auto-adaptation 10Mbps 100Mbps , convenient for network updating.
  • No need of cooling system, realization of flow control, decrease of broadcast storm.
  • With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensure reliable data transmission and long working life ﹡ Speed 10/100M.
  • Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
  • Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
  • Single RJ-45 electrical port NIC/HUB, auto cross-identification, link to computer network cards or switches or HUB.
  • Supporting the switches to choose between 10/100Mbps store-and forward and straight-through transmission pattern(distinct).
  • With Dip Switch , support LFP enable and Disable Function
  • Supporting 1600byte super data packet transmission.
  • Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/half duplex, data rate.
  • With more than 50,000 hours MTBF, complying with telecom operating standard.
  • Ultra low power dissipation(< 3W, Input:AC110 ~ 240V),low heat, long-time stable work.
  • Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM).
Technical Parameter:
Access Method: 10/100Mbps
Standard: IEEE802.3 ,IEEE802.3u, IEEE802.3x,IEEE802.1q,IEEE802.1p,IEEE802.1d
Wavelength: 850nm/1310nm/1550nm

Distance:

Dual Fiber MM : 550m

Dual Fiber SM : 10/20/30/50/80Km/Single Fiber SM : 20/40/60Km

CAT5 : 100m
Conversion Method: Media Conversion, Store-and-Forward
MAC Address Table: 1 K
Buffer Size: 1Mbit
Flow Control: Duplex : flow control ; Half duplex : back pressure
Time Delay: Store-and-Forward : 9.6us , Straight-through : 0.9us
BER: <1/1000000000
LED Indicator Lamps: 1000M , 100M , FX LINK/ACT, TP LINK/ACT,FDX,POWER
Power Supply: DC5V 1A (external power)
Power Dissipation: <3W
Operating Temperature: 0 ~ 50 ℃
Humidity: 5%~90%
Storage Temperature: -40~ 70 ℃
Dimension: 25mm (H)* 70mm (W)* 93mm (D)
