4*2.5G SFP to 4*2.5G SFP Line OEO Card -,4M~2.5Gbps, 1U Management for xWDM System
4*2.5G SFP to 4*2.5G SFP Line OEO Card -,4M~2.5Gbps, 1U Management for xWDM System
4*2.5G SFP to 4*2.5G SFP Line OEO Card -,4M~2.5Gbps, 1U Management for xWDM System
4*2.5G SFP to 4*2.5G SFP Line OEO Card -,4M~2.5Gbps, 1U Management for xWDM System
Specifications
Brand Name :
FIBERROAD
Model Number :
FR8000-OTU1GQS2S
Certification :
CE,FCC, ROHS
Place of Origin :
CHINA
MOQ :
1-10PCS
Price :
EXW. SHENZHEN IN USD
Supply Ability :
500pcs per month
Delivery Time :
3-5days
Packaging Details :
1CTN/16PCS/17.50KGS/67*33*47CM
Description

Product Introduction

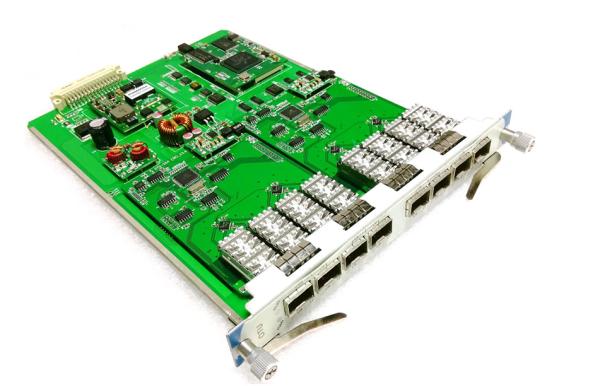

FR8000-OTU1GQS2S is a multi-rate OEO converter card for optical amplification and wavelength conversion. It uses Optical-Electricity-Optical (OEO) conversion principle for the optical signal regeneration and single/multi-mode optical signal conversion to extend the network transmission distance. It can be used in CWDM / DWDM transmission system to achieve wavelength conversion, which is very helpful and cost-effective for the scenario that is short of optical resources. It is a cost-effective high-quality management system when plugged in Fiberroad 1U/6U chassis to implement device configuration, control and maintenance easily.

Features

Wide range of applications

Signal repeating

single/multi-mode optical signal conversion

CWDM / DWDM Wavelength Conversion

dual fiber to single fiber conversion

Support wide data rate of 4M~2.5Gbps

Up to 4 data channels (with 8 SFP fiber modules)

Support SNMP-based network management

Support CLI, web, telnet and NMS(network management system)

Graded management mode (common user, super user or administrator)

FR8000 1U/6U chassis compatibility


Performance Parameters

Parameter

Description
Data Rate 4M~2.5Gbps
Optical interface type SFP to SFP
NMS TELNET,SNMP,WEB
Size OEO Converter Card 26.5(W)× 195(H)× 252(D)
1U Chassis 482.6(W)x350(D)x43.6(H)
6U Chassis 482.6(W)x350(D)x261.6(H)
Power Consumption ≤15W
