8 *1.25G SFP Slot to 1*10G XFP Slot Line card (Support 6U/2.5U/1U management Rack)
8 *1.25G SFP Slot to 1*10G XFP Slot Line card (Support 6U/2.5U/1U management Rack)
8 *1.25G SFP Slot to 1*10G XFP Slot Line card (Support 6U/2.5U/1U management Rack)
8 *1.25G SFP Slot to 1*10G XFP Slot Line card (Support 6U/2.5U/1U management Rack)
Specifications
Brand Name :
FIBERROAD
Model Number :
FR8000-TMUX8G
Certification :
CE,FCC, ROHS
Place of Origin :
CHINA
MOQ :
1-10PCS
Price :
EXW. SHENZHEN IN USD
Delivery Time :
3-5days
Packaging Details :
1CTN/16PCS/17.50KGS/67*33*47CM
Description

Product Introduction

The Lambda FR8000-TMUX8 Muxponders use advanced TDM technology to transport 8 separate Gigabit Ethernet data streams into a 10 Gbps XFP-based trunk port. This solution provides significant cost reduction and excellent fiber utilization when compared to discrete optical multiplexing. The FR8000-TMUX8 incorporates 8 SFP-based access interfaces that can accommodate various types of SFP. The trunk port is an XFP 10Gbps permitting flexible connectivity options between the muxponders either in a WDM system or directly between two modules.as well as provide double XFP interfaces, which can Achieve 1 +1 protective,Enhance the security of the system

Features

10 Gbps trunk port rate

It provides 8 standard SFP slots and 1 XFP slot;

The trunk port can provide double XFP interfaces, which can Achieve 1 +1 protective,Enhance the security of the system

8 GE ports at the client side are isolated from each other; Point-to-Point interconnection of up to 8 LANs 8 Independent 1GE services over one DWDM wavelength It supports loopback setting of the client side and the line side;

Advanced network management features:

support for SNMP-based network management

supporting CLI, WEB, TELNET and other network management approach, Full graphical managemen

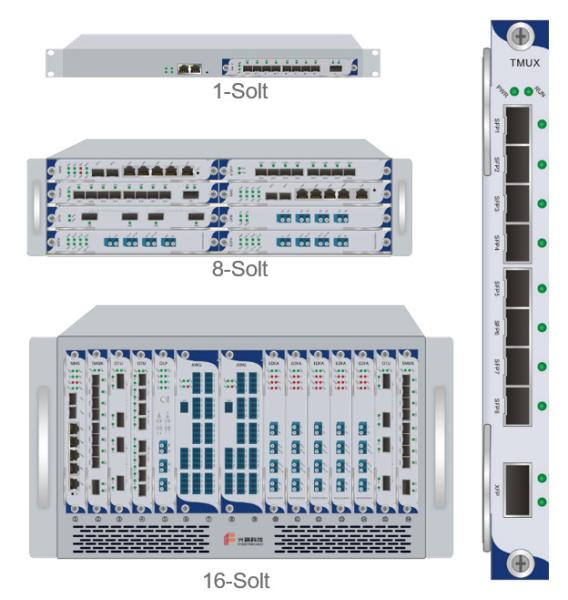

FR8000 chassis compatibility

Fit FR8000-CH01 1-slot powered chassis

Fit FR8000-CH08 8-slot powered chassis

Fit FR8000-CH16 16-slot powered chassis

Performance Parameters

System parameters Technical indicators
Center wavelength Compliance with ITU-I standard
Data Rate (Gbps)

Client Side: 100M/1000BaseFX,100/1000BaseTX

Line Side:10.3Gbps
Optical interface type Client Side:8xSFP Line Side:1xXFP
NMS TELNET,SNMP,WEB

Size

 OTU Module 26.5(W)× 195(H)× 252(D)
1-slot chassis 482.6(W)x350(D)x43.6(H)
8-slot chassis 482.6(W)x360(D)x109(H)
16-slot chassis 482.6(W)x360(D)x261.6(H)
Environment Operating Temperature -10℃ ~ 60℃
Storage Temperature -40℃ ~ 80℃
Relative humidity 5% ~ 95% Non-condensing
Power Consumption ≤15W

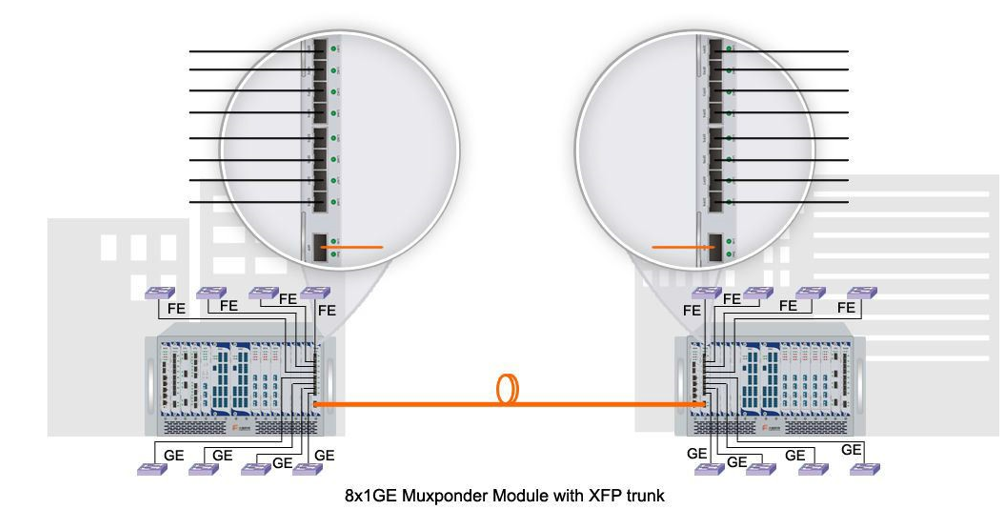

Application

8 *1.25G SFP Slot to 1*10G XFP Slot Line card (Support 6U/2.5U/1U management Rack)

Model Function /Protocols Client line
FR8000-TMUX8G 8 x GE (SFP) TDM module with XFP line port SFP x8 XFP x1
