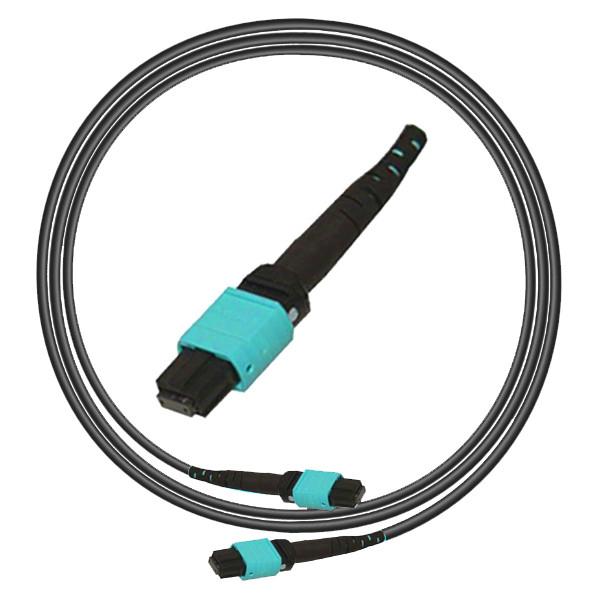

MPO MTP Fiber Trunk Cable 24 fiber G657A1 OM4 aqua

Features:
● Connector: MPO/MTP to MPO/MTP, female/male
● Polishing: UPC/APC
● Fiber Count: 24 fiber
● Fiber Type: G652D/G657A1/G657A2/OM3/OM4/OM5
● Cable Diameter: 3.0mm/4.5mm/custermized
● Cable Jacket: LSZH, OFNP(plenum), OFNR(PVC)
● Jacket Color: yellow/aqua/violet/customized
● Insert Loss: SM(MPO)≤0.6dB, SM(MTP)≤0.35dB, MM(MPO)≤0.7dB, MM(MTP)≤0.35dB
● Return Loss: SM(MPO)≥50dB, SM(MTP)≥50dB, MM(MPO)≥25dB, MM(MTP)≥30dB
● Polarity: Type A/B/C
● Operating temperature: -40ºC~+80ºC

Description:
The single-mode and multimode MTP/MPO products are multi fiber connectors used in high-density backplane applications in data and telecommunications system, which can extends the link from the regional distribution to the equipment area. The MTP/MPO connector can combine multiple branch fibers into a cable to reduce the installation time, providing significant space and cost savings. MTP/MPO patch cord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4,8,12,16 or 24 fibers.
The MPO connector brands include MTP®, SENKO, Nissin etc.

Application:
● Data center
● Fiber Access Network
● Data Processing Center
● Data Communication Application
● Data Center Infrastructure
● Storage Area Network
● 10G/40G/100G Ethernet Standard Access
● Pre-termination connectivity between stations
