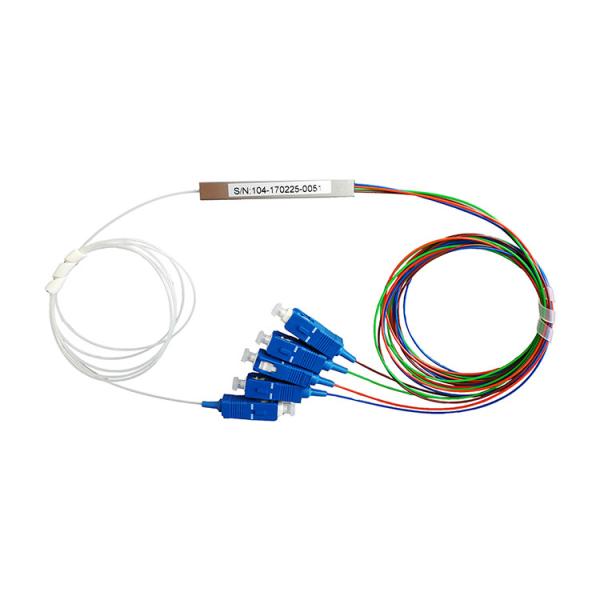

4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
Specifications
Brand Name :
UT-King
Model Number :
PLC-M104SU
Certification :
CE.ROSH,ISO9001
Place of Origin :
China
MOQ :
2 PCS
Payment Terms :
T/T, Western Union,Credit Card,
Supply Ability :
10000pcs/per week
Delivery Time :
3-5 workdays
Packaging Details :
1 pcs 1 Plastic boxes
Product Name :
PLC splitter
Type :
Mini Type 1*4
Application :
FTTH Networking
Fiber type :
G657A1
Connector type :
SC/UPC
Wavelength :
1260-1650nm,1310nm/1550nm
Fiber length :
1m,1.5m or Customized
Item :
plc splitters fiber spliter
Insertion loss :
≤7.3dB
Package :
1pcs 1 Plastic boxes
Model :
SM/MM
Dimension :
60*7*4mm
Description

High Quality Mini Type Steel Tubular G657A1 Fiber Optic 4 Way PLC Splitter 1x4 SC/UPC Connector

Description

UT-King Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

Features

  • Low Insertion loss and Low PDL
  • Uniform power splitting
  • High reliability
  • Excellent environmental stability
  • Compact size and various package

High Environmental Stability

Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity.

Excellent Quality Chips

Loss of light is not sensitive for wavelength, and it can meet the transmission needs of different wavelengths.

Compact Structure

Small size, it can be directly installed in a variety of transfer box and just take up little space.

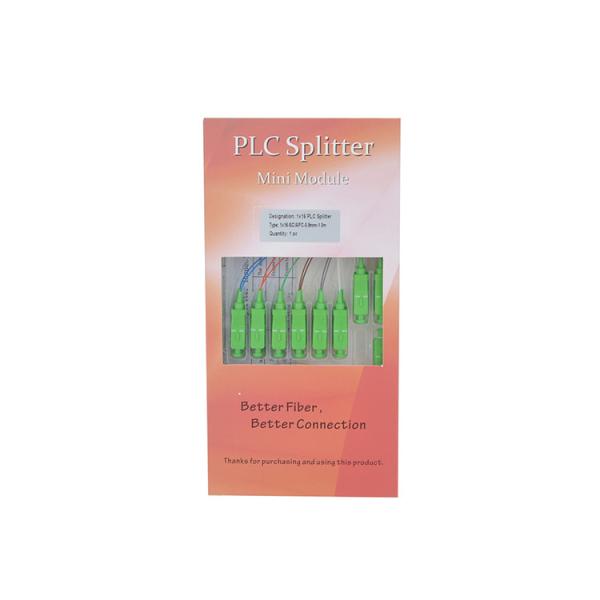

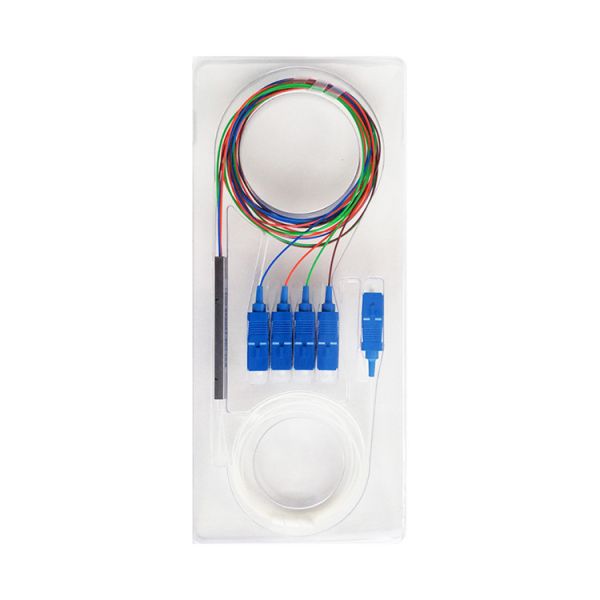

Exquisite Packaging

The design and packaging is exquisite to ensure the product in good condition.

Strict Quality Control

We guarantee that every product to the hands of customers are subject to stringent testing standards.

High-quality Wire Rod

Excellent PVC wire, good strength and tenacity, long lifespan.

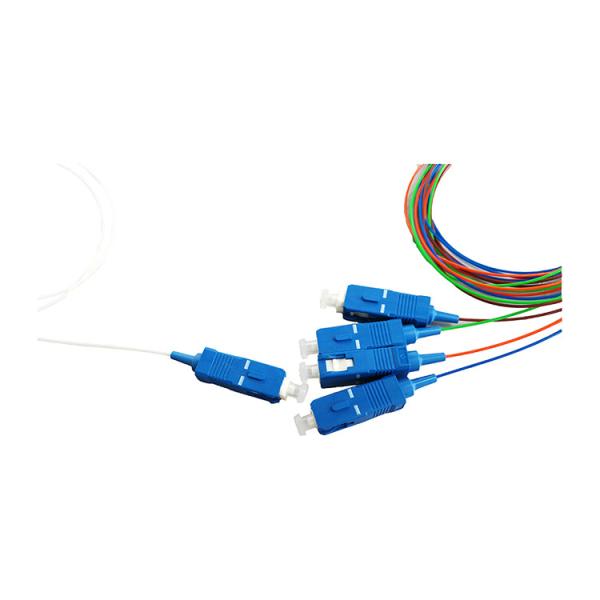

Simple and Easy Connection

Specification

Item

1x2

1x3

1x4

1x6

1x8

1x12

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.1

≤6.4

≤7.4

≤9.3

≤10.5

≤12.8

Loss uniformity(dB)

≤0.4

≤0.4

≤0.6

≤1.6

≤0.8

≤1.2

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.2

≤0.2

≤0.2

≤0.25

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

40×4×4

60×7×4

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Item

1x16

1x24

1x32

1x48

1x64

1x128

Operating Wavelength(nm)

1260-1650

Connector

SC/FC/LC

Ferrule section

UPC/APC

Fiber Type

G657A1 or as customers' order

Insertion loss(dB)

≤13.8

≤15.8

≤16.8

≤18.7

≤20.5

≤24.1

Loss uniformity(dB)

≤1.2

≤1.5

≤1.5

≤2.0

≤2.0

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.25

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

60×7×4

60×12×6

N/A

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Item

2x2

2x4

2x8

2x16

2x32

2x64

2x128

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.5

≤7.9

≤10.8

≤14.1

≤17.3

≤21.1

≤24.8

Loss uniformity(dB)

≤0.9

≤1.1

≤1.2

≤1.5

≤1.8

≤2.2

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

≤0.5

Size(mm)(LxWxH)

50×4×4

60×7×4

N/A

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

4 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A14 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A14 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A14 Way 1x4 Fiber Splitter Optical Power 1550nm Steel Tubular G657A1
