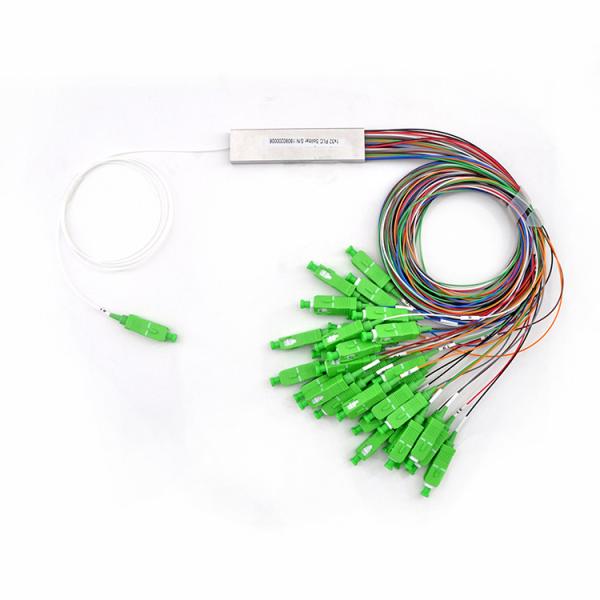

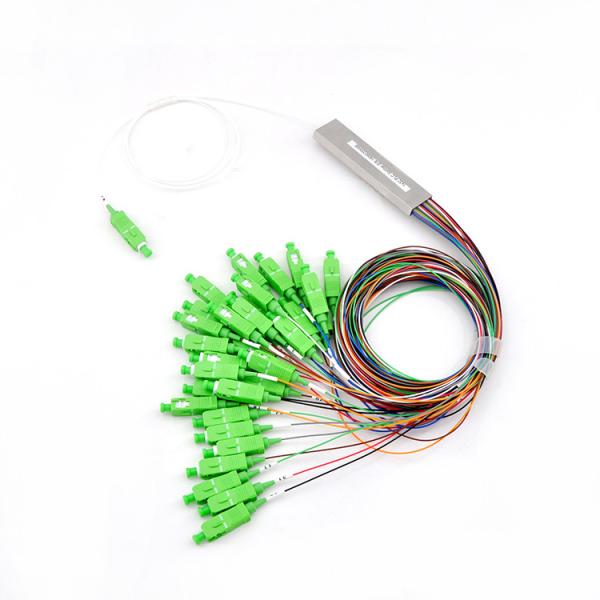

Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
Specifications
Brand Name :
UT-King
Model Number :
PLC-M132SA
Certification :
CE.ROSH,ISO9001
Place of Origin :
China
MOQ :
2 PCS
Payment Terms :
T/T, Western Union,Credit Card,
Supply Ability :
10000pcs/per week
Delivery Time :
3-5 workdays
Packaging Details :
1 pcs 1 Plastic boxes
Product Name :
PLC splitter
Type :
Mini Type 1x32
Application :
FTTH Networking
Fiber type :
G657A1
Connector type :
SC/APC
Wavelength :
1260-1650nm,1310nm/1550nm
Fiber length :
1m,1.5m or Customized
Item :
GPON spliter
Insertion loss :
≤16.8dB
Package :
1pcs 1 Plastic boxes
Model :
SM/MM
Dimension :
80*20*6mm
Splitter Ratio :
1*32
Fiber Diameter :
0.9mm
Description

Fiber Optic ANATEL Gpon Splitter FTTH 1x 32 PLC Divisor SC/APC Connector

Description

UT-King's PLC splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.PLC splitter: Losses are not sensitive to the wavelength, spectral uniformity is higher, it is more compact and is lower cost with greater degrees of splitting. However, device fabrication process is more complex. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

PLC Splitter is a component that splits the optical light power from one route into different routes. Molex PLC Splitter offers premium factory controlled optical performance on a variety of connectors that enable fast, economical installation.

Features

  • Wide Operating Wavelength Range: 1260-1650nm
  • Low PDL
  • Low Insertion Loss
  • Excellent Channel IL Uniformity
  • Compact Size
  • High stability and reliability

Specification

Item

1x2

1x3

1x4

1x6

1x8

1x12

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.1

≤6.4

≤7.4

≤9.3

≤10.5

≤12.8

Loss uniformity(dB)

≤0.4

≤0.4

≤0.6

≤1.6

≤0.8

≤1.2

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.2

≤0.2

≤0.2

≤0.25

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

40×4×4

60×7×4

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Item

1x16

1x24

1x32

1x48

1x64

1x128

Operating Wavelength(nm)

1260-1650

Connector

SC/FC/LC

Ferrule section

UPC/APC

Fiber Type

G657A1 or as customers' order

Insertion loss(dB)

≤13.8

≤15.8

≤16.8

≤18.7

≤20.5

≤24.1

Loss uniformity(dB)

≤1.2

≤1.5

≤1.5

≤2.0

≤2.0

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.25

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

60×7×4

60×12×6

N/A

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Item

2x2

2x4

2x8

2x16

2x32

2x64

2x128

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.5

≤7.9

≤10.8

≤14.1

≤17.3

≤21.1

≤24.8

Loss uniformity(dB)

≤0.9

≤1.1

≤1.2

≤1.5

≤1.8

≤2.2

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

≤0.5

Size(mm)(LxWxH)

50×4×4

60×7×4

N/A

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Fiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc SplitterFiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc SplitterFiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc SplitterFiber Optic Anatel 1x32 Lc Apc Connector Divisor SC Mini Plc Splitter
