Specifications
Brand Name :
UT-King
Model Number :
PLC-M104SA
Certification :
CE.ROSH,ISO9001
Place of Origin :
China
MOQ :
2 PCS
Payment Terms :
T/T, Western Union,Credit Card,
Supply Ability :
10000pcs/per week
Delivery Time :
3-5 workdays

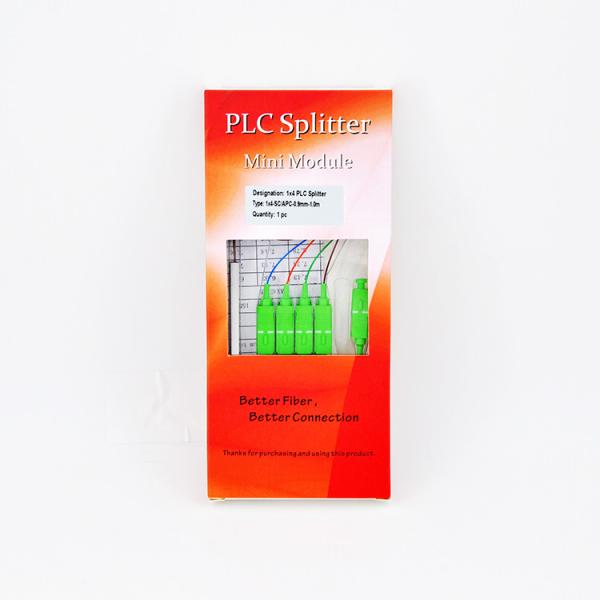

Packaging Details :
1 pcs 1 Plastic boxes
Product Name :
PLC splitter
Type :
Mini Type 1*4
Application :
FTTH Networking
Fiber type :
G657A1
Connector type :
SC/APC
Wavelength :
1260-1650nm,1310nm/1550nm
Fiber length :
1m,1.5m or Customized
Item :
high quality plc splitters fiber spliter
Insertion loss :
≤7.3dB
Package :
1pcs 1 Plastic boxes
Model :
SM/MM
Dimension :
60*7*4mm
Description

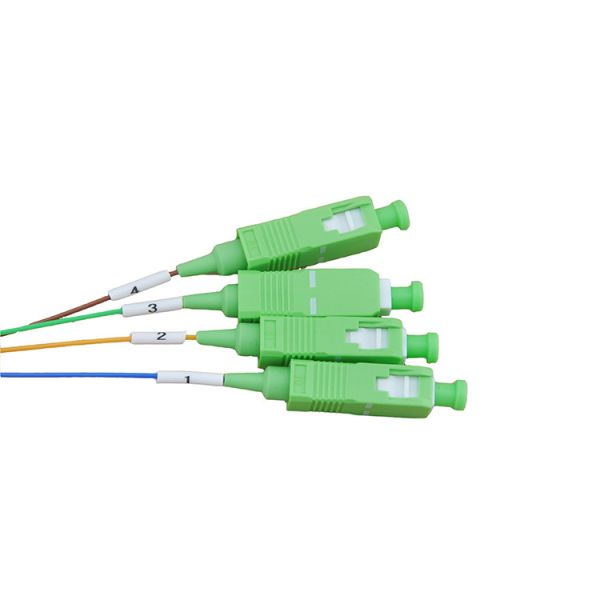

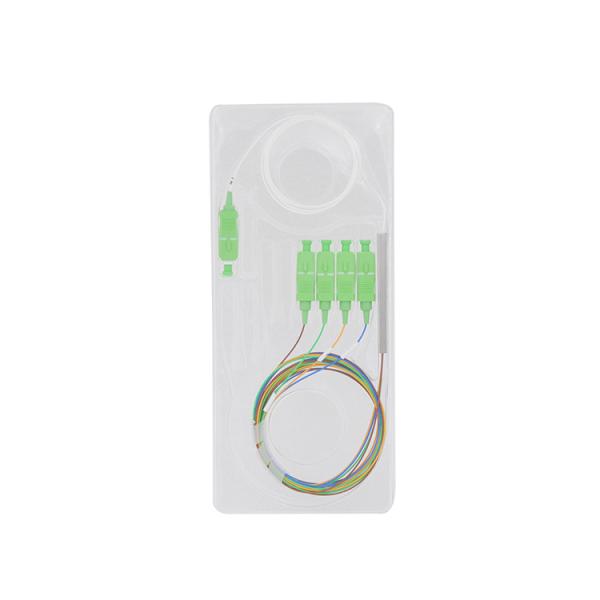

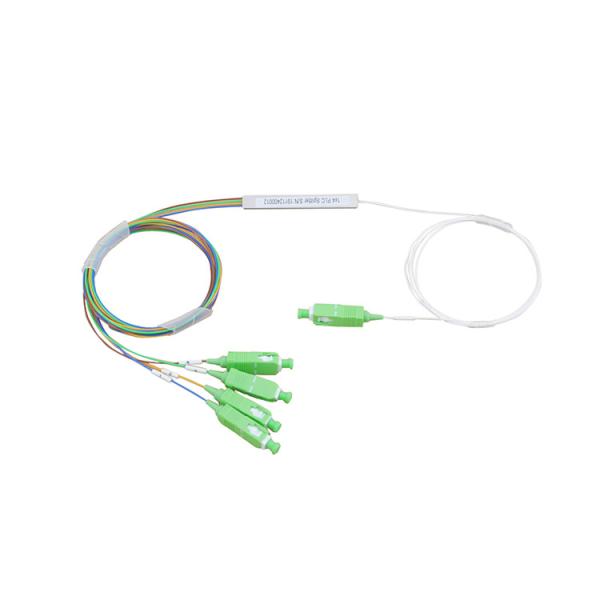

UT-King Mini Type Steel Tubular Fiber Optic PLC Splitter 1x4 sc/apc connector

Description

UT-King Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

Features

  • Low Insertion loss and Low PDL
  • Uniform power splitting
  • High reliability
  • Excellent environmental stability
  • Compact size and various package

Specification

Item

1x2

1x3

1x4

1x6

1x8

1x12

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.1

≤6.4

≤7.4

≤9.3

≤10.5

≤12.8

Loss uniformity(dB)

≤0.4

≤0.4

≤0.6

≤1.6

≤0.8

≤1.2

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.2

≤0.2

≤0.2

≤0.25

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

40×4×4

60×7×4

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Item

1x16

1x24

1x32

1x48

1x64

1x128

Operating Wavelength(nm)

1260-1650

Connector

SC/FC/LC

Ferrule section

UPC/APC

Fiber Type

G657A1 or as customers' order

Insertion loss(dB)

≤13.8

≤15.8

≤16.8

≤18.7

≤20.5

≤24.1

Loss uniformity(dB)

≤1.2

≤1.5

≤1.5

≤2.0

≤2.0

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.25

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

Size(mm)(LxWxH)

60×7×4

60×12×6

N/A

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85

Item

2x2

2x4

2x8

2x16

2x32

2x64

2x128

Operating Wavelength(nm)

1260-1650

Fiber Type

G657A1 or as customers' order

Connector

SC/FC/LC

Ferrule section

UPC/APC

Insertion loss(dB)

≤4.5

≤7.9

≤10.8

≤14.1

≤17.3

≤21.1

≤24.8

Loss uniformity(dB)

≤0.9

≤1.1

≤1.2

≤1.5

≤1.8

≤2.2

≤2.5

Return Loss(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Polarization Dependent Loss(dB)

≤0.2

≤0.2

≤0.3

≤0.3

≤0.4

≤0.4

≤0.4

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

≥55

Temperature correlation loss

-40～85℃(dB)

≤0.5

≤0.5

≤0.5

≤1.5

≤0.5

≤0.5

≤0.5

Size(mm)(LxWxH)

50×4×4

60×7×4

N/A

Working Temperature(℃)

-40～85

Storage Temperature(℃)

-40～85
