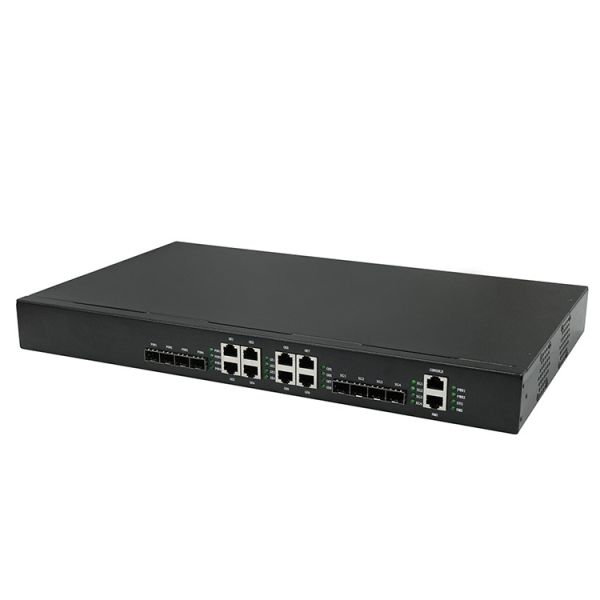

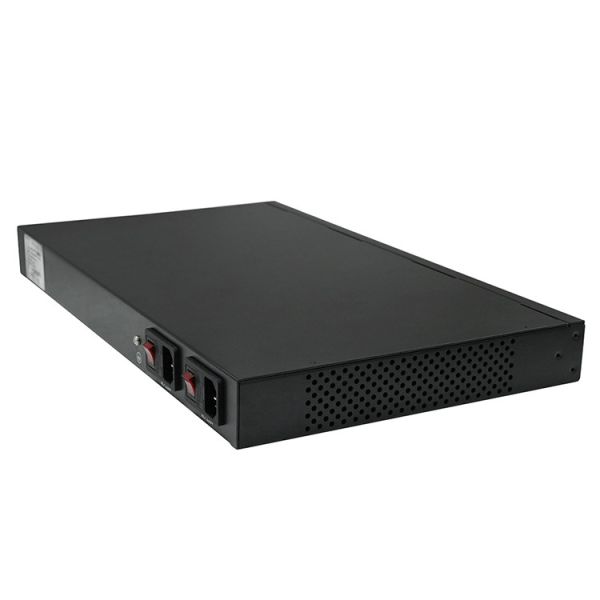

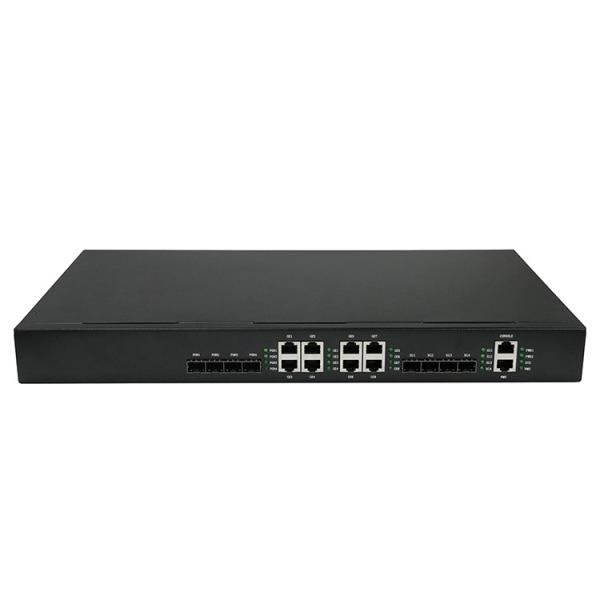

Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Triple Play 4 Port Epon Olt Optical Line Termination 1U FTTB
Specifications
Brand Name :
UT-King
Model Number :
EP7004
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10pcs/day
Delivery Time :
3-5 workdays
Packaging Details :
1 pcs 1 carton
Product name :
EPON OLT
Power supply :
AC: input 100～240V　50/60Hz; DC: input 36V～75V;
Pon port :
4
Type :
4 pon olt
Wavelength :
RX 1310nm,TX 1490nm
Power consumption :
40W
Application :
FTTH FTTB FTTX
Weight :
5kg
Max splitting ratio :
1:64
Oem/odm :
Yes,Welcome
Warranty :
1 year
Operating temperature :
0 ~ 50 degrees C
Description

Fiber Optic OLT EPON Triple Play FTTB FTTH 1U 4 Port EPON OLT Equipment

Description

EPON OLT 4PON(UT-EP7004) ,the most effective access technology, is increasingly used in telecom broadband access, cable broadband access, FTTx, intelligent electric grid and surveillance.It is a small rack type EPON OLT. It consists of a EPON OLT and the network management card. I wors with EPON ONU series and ODN to establish a passive optic network.

Each PON port of 4 ports EPON OLT can support 64(max) terminal ONUs. It supports 10～20km transmission distance at the base of high bandwidth, and supplies full line speed L2/L3 transition capacity.

It supports maximum 256 Logical Link Identifiers (LLID) and Dynamic Bandwidth Allocation (DBA). It is adapt to small fiber access network, such as towns, villages, which don’t have large quantity users. 4 Ports EPON system greatly lowers the cost to establish network and assure high bandwidth. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.

Features

  • Complies with ITU.G.984.x, provides comprehensive GPON network compatibility
  • Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
  • Fiber access and gigabit port provide incredibly fast transfer speeds
  • Supports OMCI remote management

Parameter

Item

EP7004
Service Port 4*PON port,4*1.25G SFP & 8*10/100/1000M RJ45 for uplink
Operating wavelength

1310 (RX)/1490(TX)

1.25G Upstream /1.25G Downstream
Capacity 1:64(max)
Redundancy Design Support AC input or DC input
Power Supply

AC: input 100～240V　50/60Hz;

DC: input 36V～75V;
Power Consumption ≤40W
Dimensions (Width x Height x Depth) 440mm×44mm×260mm
Weight (Full-Loaded) ≤4.6kg
Environmental Requirements

Working temperature: -10°C～55°C

Storage temperature: -40°C～70°C

Relative humidity: 10%～90%, non-condensing
Item

EPON traits

Support IEEE802.3ah

Support DBA with minimum1Kbps granularity adjustable

Support 1Gbps up link and down link symmetrical bandwidth

Support AES-128 encryption to each Logical Link Identifier

Support powerful OAM function, implement telnet management, maintenance and upgrade

Support auto discovery and auto register of ONU (real-time operation)
Network management

Support GUI management based on SNMP

Support Local serial interface management and local serial interface management and Telnet GUI management based on CLI
Other functions

Support IGMPv1/v2 protocol report, query and leave message mouse

Support DHCP Snooping

Support Ipv4 address learning based at DHCP Snooping

Support ARP Snooping, QoS etc
