1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm
Specifications
Brand Name :
Huawei
Model Number :
HG8245Q2
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
1PCS
Supply Ability :
1000PCS/Week
Delivery Time :
3-5days
Packaging Details :
1pcs/box
Application :
fiber to the home
Color :
White
Function :
4FE+2TEL+WIFI
Product name :
gpon ONU/ONT
Power supply :
12V 1A
Connector Type :
SC/UPC
Connector :
RJ45
PON port :
SC
Wavelength :
1310/1490nm
Weight :
About 0.5 Kg
Size :
265 mm x 176 mm x 82 mm
Description

Original Echolife GPON ONU 4GE+1TEL+2USB+WIFI FTTH Dual Band WiFi HG8245Q2 same Function as HG8245U

Description

Huawei HG8245Q2 FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses GPON technology to implement ultra-broadband access for users. This model offers 4 GE+2 POTS+1 USB+2 WiFi(4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port, and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data, and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Features

  • Smart Wi-Fi coverage
  • SIP/H.248 auto-negotiation
  • Any port any service
  • Parental control
  • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
  • Smart service

Application

  • Smart Wi-Fi coverage
  • SIP/H.248 auto-negotiation
  • Any port any service
  • Parental control
  • L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Specification

Model HG8245Q2
Working environment Operating temperature: 0ºC to 40ºC
Environment humidity: 5% to 95% (noncondensing)
Typical power consumption 8 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
　 System power supply: 11–14 VDC, 2 A
WLAN 802.11ac
Support IPv4 or IPv6 IPv4 and IPv6
Network-side Port GPON
User-side Ports 1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB
Indicators POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Dimensions 265 mm x 176 mm x 82 mm

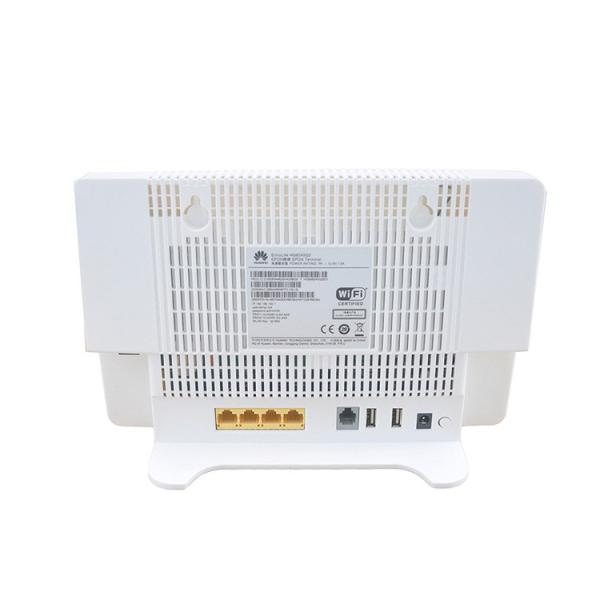

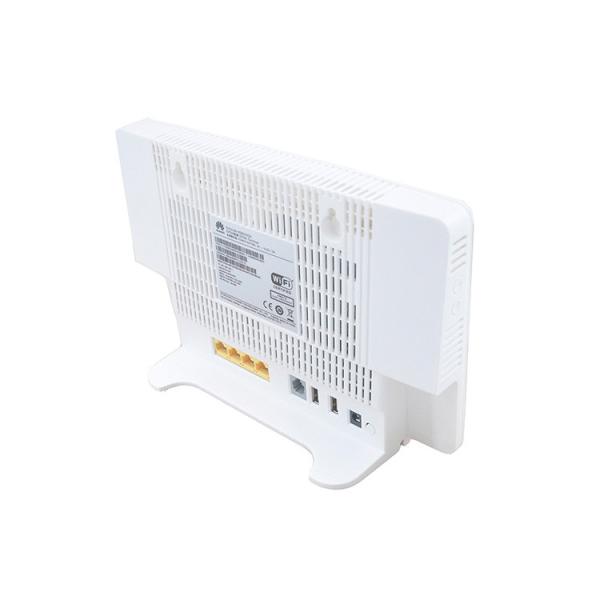

Detailed Images

1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm1TEL Dual Band Gpon Optical Network Unit Modem Ont 2 USB 82mm

FAQ

Q: What is the difference between Huawei HG8245Q2 and Huawei HG8546M (GE)?

A: The main difference is Huawei HG8245Q2 comes with 2.4G/5G WiFi, Huawei HG8546M (GE) only 2.4G WiFi. Huawei HG8245Q2 comes with 4GE ports, Huawei HG8546M (GE) with 1GE ports.

Q: Does Huawei HG8245Q2 comes with Europe type adapter?

A: Yes, it comes with EU type adapter.

Q: Does Huawei HG8245Q2 login page is English?

A: Yes, it is English version.

Q: Does Huawei HG8245Q2 with CE label in the back?

A: Yes.

Q: Does Huawei HG8245Q2 interface name in English?

A: Yes.
