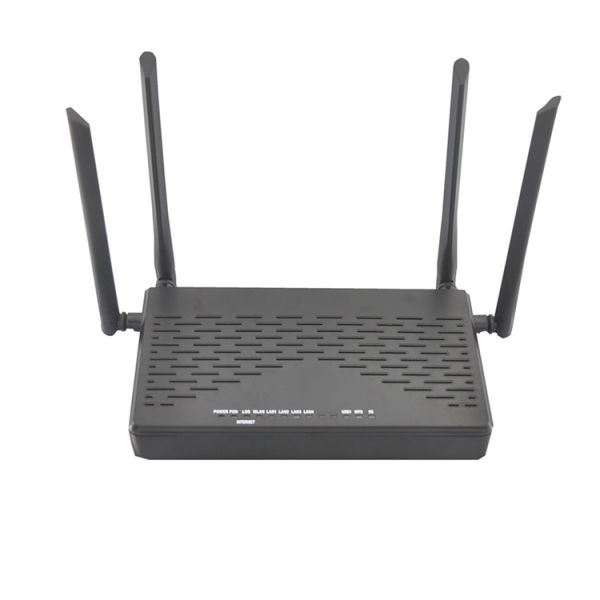

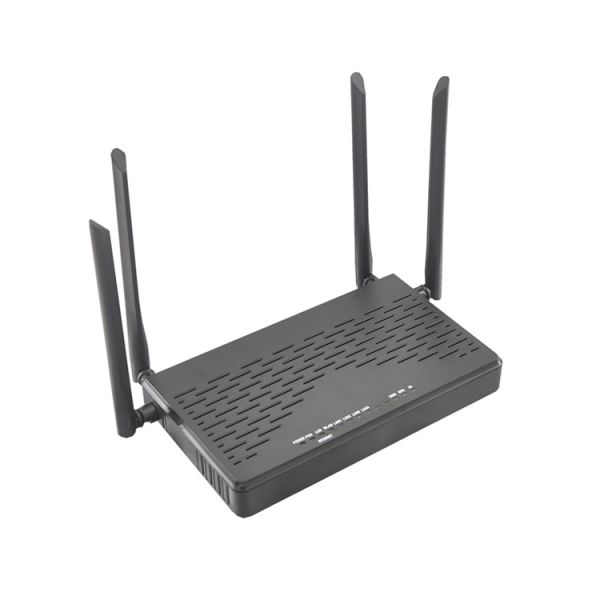

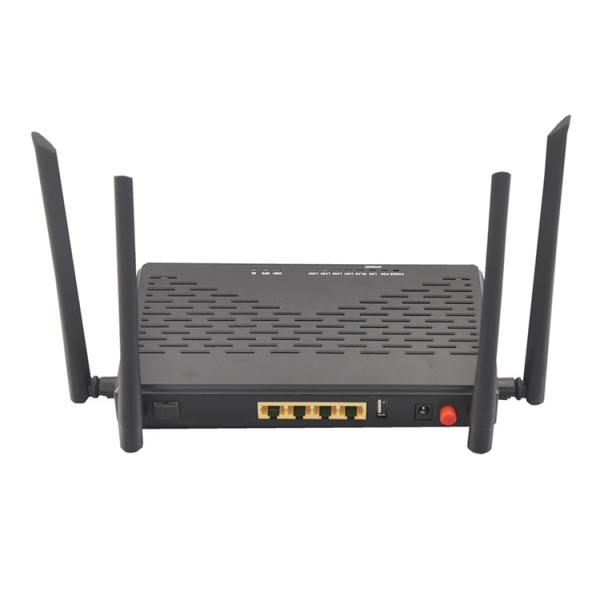

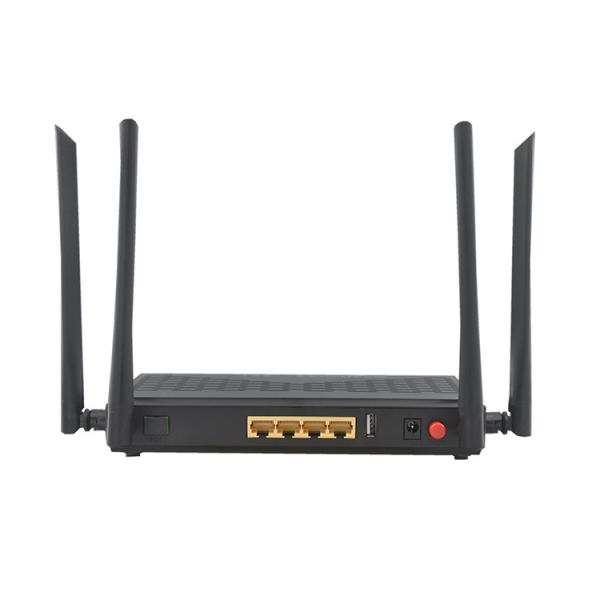

2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
2.4G 4GE FTTH 5.8G Gpon Onu Wifi Router Dual Band AC 4 Port
Specifications
Brand Name :
UT-King
Model Number :
GP4483
Certification :
CE,ROHS,ISO9001
Place of Origin :
China
MOQ :
10 pcs
Supply Ability :
1000 pcs/week
Delivery Time :
3-5days
Packaging Details :
1pcs/box
product name :
gpon onu
function :
4GE+WIFI
Application :
FTTH FTTB FTTX Network
Color :
Black
Wavelength :
Tx 1310nm,Rx1490nm
Type :
FTTH Onu
Warranty :
1 Year
Power supply :
12V 1A
WIFI :
2.4G&5.8G
Chipset :
ZTE
Description

UT-King FTTH 4GE+WIFI 2.4G&5.8G GPON ONT Dual Band AC 4 GPON Port Fiber To The Home

Product Introduction

UT-GP4481 is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation
Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution.
It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port.
With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences, and WIFI(2.4G & 5G).

Product Description

*Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 provides comprehensive GPON

network compatibility
*Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
*Fiber access and gigabit port provide incredibly fast transfer speeds
*Supports OMCI (ONU Management Control Interface) remote management
Item Description
GPON Standards ITU-T G.984.1, G.984.2, G.984.3, G.984.4
Chipset ZX279100a+ MTK 7603+MTK7612+ MTK 9642
Interface

1 SC/UPC PON Port

4 10/100/1000Mbps RJ45 Ports

2 POTS Port

1 USB

WIFI (2.4G & 5G)
Data Rates & Wavelength

Upstream:1.244Gbps, 1310nm

Downstream:2.488Gbps, 1490nm
Distance 0~ 20Km Max
External Power Supply DC 12V/2A

Dimensions

(Length * Width *Height)

 200mm×140mm×40mm
Weight (Full-Loaded) ≤0.5kg

Environmental

Requirements

Workingtemperature:0°C~40°C

Storagetemperature:-40°C ~70°C

Relativehumidity:10%~90%,non-condensing

Product Features:

Item Description
Quality of Service
Service Flow Classification based on VLAN
Schedule rules Support SP/WRR
Upstream Priority Label Support 802.1D User Priority
Rate Limit and Traffic shaping
Congestion Control Support Tail-Drop
Advanced Features
Upstream and Downstream FEC
Dynamic Bandwidth Allocation(DBA) support
NSR/SR
Up to 7 T-CONTs and 4095 GEM Ports
Optical power detection, Dying Gasp
Terminal Silent mechanism
802.3az EEE Energy Conservation
VLAN
802.1Q tag VLAN
VLAN transparent mode/VLAN translation
mode/VLAN trunk mode
Authentication based on SN and Password
VLAN Auto Detect
Security
AES Encryption
Packet Filter based on VLAN
Management
Managed by Web, OMCI and Telnet,
Specified the management IP,
Reset to Factory default by Reset button or Web UI,
Real-time statistics, Optical Diagnostic
IGMP
IGMP v2/v3
IGMP Snooping/Proxy

Package Conent

  1. Gigabit GPON Terminal
  2. Quick Installation Guide
  3. Power Adapter
