ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
Specifications
Brand Name :
ZTE
Model Number :
GTGH
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
USD 1300-1500per pieces
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs one week
Delivery Time :
5-12 work days
Packaging Details :
10/20 pcs 1 carton
Product name :
ZTE Service Board
GPON Port :
16-GPON Port
Port Rate :
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Optical Fiber Type :
SC UPC
Encapsulation Type :
SFP
Operating Wavelength :
Tx: 1490 nm, Rx: 1310 nm
Dimension :
22.86 mm x 237.00 mm x 395.40 mm
Description

ZTE 16-port GPON OLT interface board offering service access ZTE GTGH Service Card

Product Features
  • High Density:
    – 16 GPON ports per card, up to 1:128 split ratio
  • GPON Function:
    – Support ONU power saving management defined in G.987.3
    – 1024 T-CONTs per PON port, 4096 GEM ports per PON port
  • High TM Performance:
    – Support H-QOS
    – 1024 queues and 356 schedulers per PON port
    – Support color-sensitive RED and WRED discard algorithm
  • Clock / Time Function:
    – Receive 1PPS+TOD signals and send them to the ONU through a PON channel
  • Low Power Consumption:
    – Newly developed lower power GPON MAC chip
    – Reduce 30% power consumption on industry average
Product Paramenters
Brand
ZTE
Model
GTGH
GPON Port
16-GPON Port
Type
C++ Module: Single Fiber Bidirectional Optical Module, Class C++
Operating Wavelength
Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type
SFP
Port Rate
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power
C++ Module : 4.50 dBm
Maximum Output Optical Power
C++ Module : 8.00 dBm
Maximum Receiver Sensitivity
C++ Module : -30 dBm @10E-10
-32 dBm @10E-10
Optical Connector Type
SC/PC
Optical Fiber Type
Single-mode
Reach
20.00 km
Overload Optical Power
C++ Module : -12.0 dBm
Extinction Ratio
8.2 dB
Weight
1kg
Dimensions (W x D x H)
22.86 mm x 237.00 mm x 395.40 mm

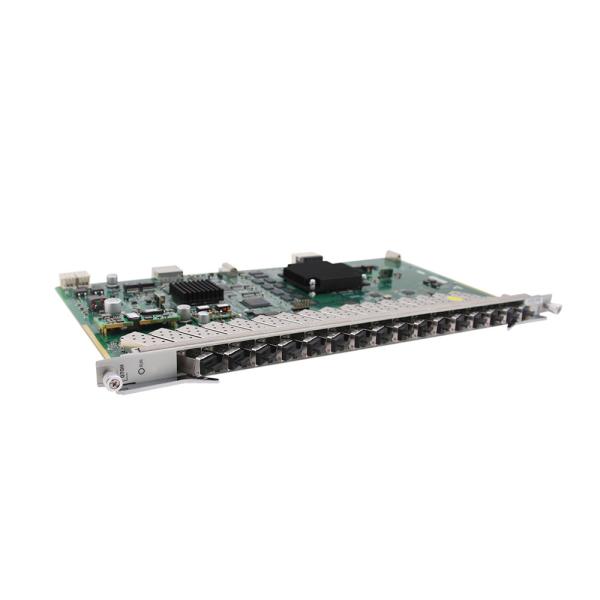

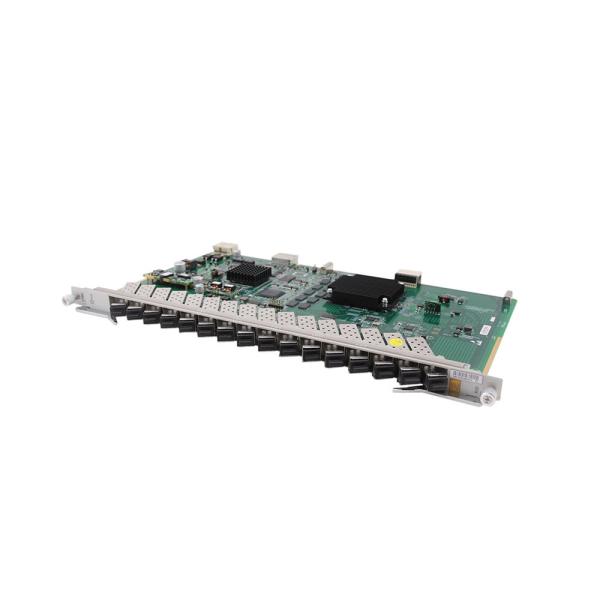

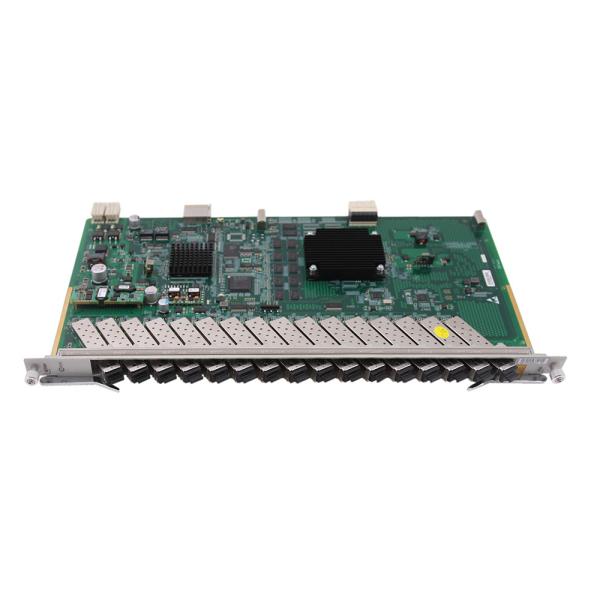

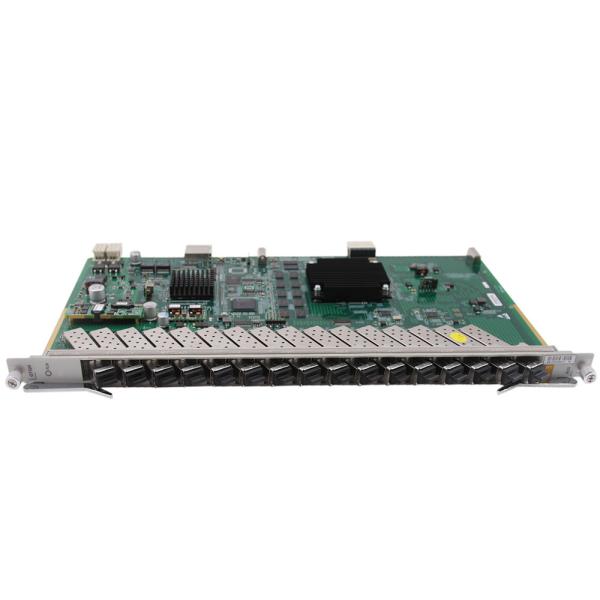

Details Images

ZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service CardZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service CardZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service CardZTE 16 Port GPON OLT Interface Board Offering Service Access ZTE GTGH Service Card
