Specifications
Brand Name :
UT-King
Model Number :
XP6281
Certification :
RoHS, CE, ISO9001
Place of Origin :
Guangdong
MOQ :
1 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
5-10 days
Packaging Details :
1set/box
Application :
FTTH FTTB FTTX Network
Product Name :
XPON ONU
Function :
2GE+1POTS+2WIFI +CATV
Chipset :
Realtek RTL9607C
Wavelength :
Tx 1310nm, Rx 1490nm
RX sensitivity :
< -27dBm @ 1490nm
Connector Type :
SC/APC
DC power supply :
DC 12V/1A, external AC-DC power adaptor
Keywords :
ONU XPON
Button :
RST, Power, WiFi, WPS, Pair
Description

New Style FTTH ONT Device XPON ONU 2GE+1POTS+2WIFI ONT XP6281 CATV ONU XPON

XPON ONU/HGU(XP6281) devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON and EPON technology, which have high ratio of performance to price, and the technology of 802.11b/g/n/ac WiFi (2T2R), Layer 2/3 and high quality as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-TG.984.x and IEEE802.3x.

Features :

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Integrated OMCI or OAM remote configuration and maintenance function.
  • Support rich QinQ VLAN functions and IGMP Snooping multicast features.
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
  • Support 802.11b/g/n/ac WiFi(2T2R) function.
  • Support NAT, Firewall function.
  • Support IPv4 and IPv6 dual stack.
Specification:

Item

Description
Chipsets Realtek RTL9607C
Optical interface

1 XPON interface, SC single-mode/single-fiber,

Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Optical Wavelength Tx 1310nm, Rx 1490nm
Optical interface SC/APC
RX sensitivity < -27dBm @ 1490nm
Wireless Compliant with IEEE802.11b/g/n/ac
Operating frequency: 2.4-5.8GHz
support MIMO, rate up to 1200Mbps,
2T2R,two external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
WLAN throughput

100Mbps @ 40users, 1518bytes, no-encryption

107Mbps @ 40users, 512bytes, encryption
LAN interface

2*10/100/1000Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
CATV interface RF, WDM ,optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: 0~-15dBm
MER: ≥32dB@-15dBm
DC power supply DC 12V/1A, external AC-DC power adaptor
Button RST, Power, WiFi, WPS, Pair
Power consumption ≤ 10W
Operating condition

Operating temp: 0 ~ +55℃

Operating humidity: 10~90% (non-condensed)
Storing condition

Storing temp: -30 ~ +60℃

Storing humidity:10~90%(non-condensed)
Dimension 180mm×110mm×40mm(L×W×H)
Net Weight 0.24Kg

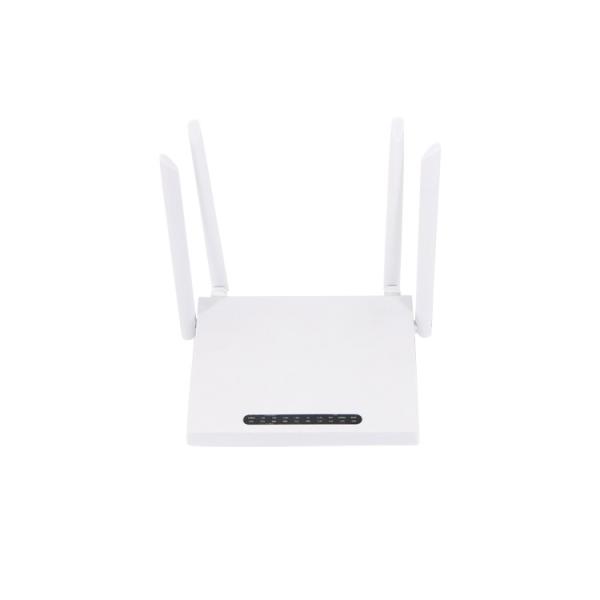

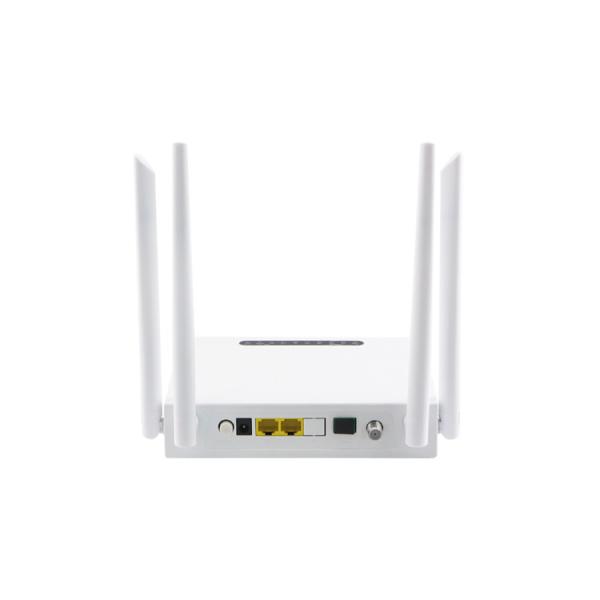

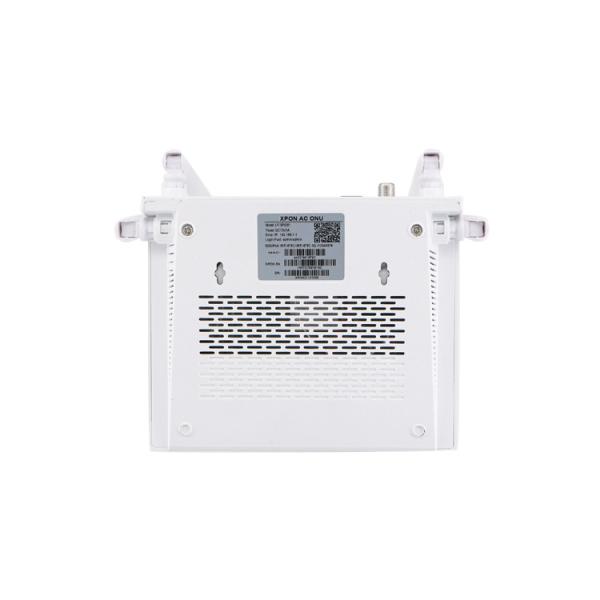

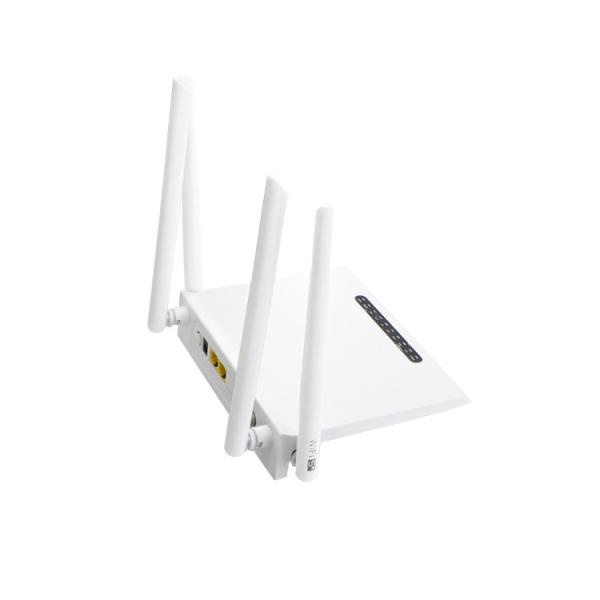

Details of Picture :


FTTB FTTH XPON ONU 2GE + 1POTS + 2WIFI ONT XP6281 CATVFTTB FTTH XPON ONU 2GE + 1POTS + 2WIFI ONT XP6281 CATVFTTB FTTH XPON ONU 2GE + 1POTS + 2WIFI ONT XP6281 CATVFTTB FTTH XPON ONU 2GE + 1POTS + 2WIFI ONT XP6281 CATVFTTB FTTH XPON ONU 2GE + 1POTS + 2WIFI ONT XP6281 CATV
