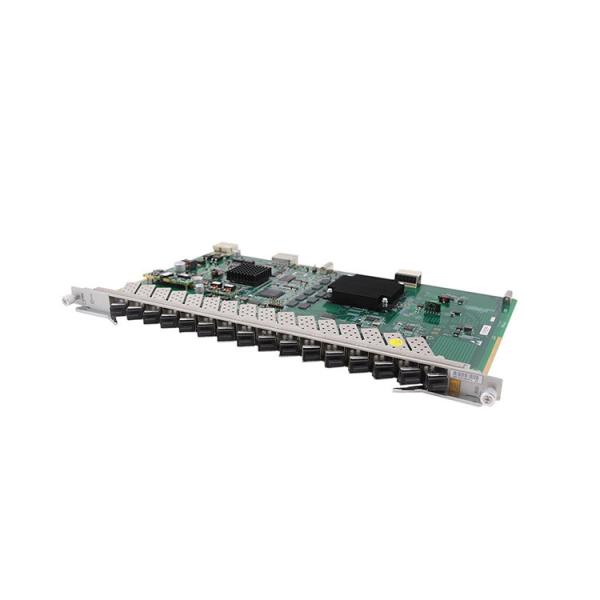

16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card
16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card
16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card
16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card
Specifications
Model Number :
GTGH
Place of Origin :
Guangdong, China
Brand Name :
ZTE
Packaging Details :
carton
Price :
$1,200.00/pieces 1-4 pieces
Type :
FTTx Solutions, C++ Module: Single Fiber Bidirectional Optical Module, Class C++
Use :
FTTH FTTB FTTX Network
Product name :
ZTE Service Board
Model :
GTGH
GPON Port :
16-GPON Port
Operating Wavelength :
Tx: 1490 nm, Rx: 1310 nm
Port Rate :
Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Encapsulation Type :
SFP
Optical Fiber Type :
SC/PC
Dimensions :
22.86 mm x 237.00 mm x 395.40 mm
Keywords :
16 Port Gpon Board
Description

16-port GPON OLT interface board for ZTE C300 OLT GTGH Service Card

Product Description

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board cost.

Specification

Brand

ZTE

Model

GTGH

GPON Port

16-GPON Port

Type

C++ Module: Single Fiber Bidirectional Optical Module, Class C++

Operating Wavelength

Tx: 1490 nm, Rx: 1310 nm

Encapsulation Type

SFP

Port Rate

Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

Minimun Output Optical Power

C++ Module : 4.50 dBm

Maximum Output Optical Power

C++ Module : 8.00 dBm

Maximum Receiver Sensitivity

C++ Module : -30 dBm @10E-10

-32 dBm @10E-10

Optical Connector Type

SC/PC

Optical Fiber Type

Single-mode

Reach

20.00 km

Overload Optical Power

C++ Module : -12.0 dBm

Extinction Ratio

8.2 dB

Weight

1kg

Dimensions (W x D x H)

22.86 mm x 237.00 mm x 395.40 mm

16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card

Packing & Delivery

16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card

Company Profile

16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card

16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card

16 Port GPON OLT Interface Board For ZTE C300 OLT GTGH Service Card

FAQ

1. who are we?
We are based in Guangdong, China, start from 2015,sell to South America(30.00%),North America(15.00%),Southeast Asia(15.00%),Mid East(10.00%),Domestic Market(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
ONU,Fiber Optic Fast Connector,Fiber Optic PLC Splitter,Fiber Optic Distribution Box,Fiber Cable.

4. why should you buy from us not from other suppliers?
We specialize in manufacturing and selling of fiber optic products and accessories. Rich experiences in massive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,CIP,DDP；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Portuguese,Russian
