Specifications
Brand Name :
UT-King
Model Number :
SC5203
Certification :
ISO9001,RoHS,CE,SGS
Place of Origin :
china
MOQ :
100 pcs
Payment Terms :
T/T, Western Union,credit card, MoneyGram, Western Union, D/P, D/A
Supply Ability :
10000pcs/week
Delivery Time :
3-5days
Packaging Details :
1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Insertion loss :
≤0.2db
Application :
FTTH FTTB FTTX Network
Connector type :
SC/UPC SC/APC
Return loss :
upc≤45db,Apc≤55db
Color :
Green/Blue
Product name :
sc fiber optic connector
Fiber type :
SM
Operating temperature :
-40 to +85 degree
Durability :
≤ 0.25db typical change
Name :
fast connector
Connector :
fiber optic connector
Fiber cable type :
3x2mm Flat cable
Length :
52mm
Description

UT-King FTTH Fiber Optic Fast Connector KOC FAOC Field Assembly Optical Connector

Description

  • UT-King FTTH Fiber Optic Fast Connector KOC FAOC Field Assembly Optical Connector SC Fast Connector
    KOC’s SC Hard type Field Assembly Optical Connector(FAOC) is designed for fast and simple field termination of FTTH Drop cable and Indoor cables without any extra manufacturing process like polishing and epoxy on the ferrule. The FAOC is made with high precision and quality zirconia ferrule and provide a highly reliable connection in most of the fiber optic network application.UT-King’s UT-SC5203 Field Assembly Optical Connector(FAOC) is designed for fast and simple field termination of FTTH Drop cable and Indoor cables without any extra manufacturing process like polishing and epoxy on the ferrule. The FAOC is made with high precision and quality zirconia ferrule and provide a highly reliable connection in most of the fiber optic network application.
  • For Singlemode Fiber, Multimode Fiber, as well as choose to 900 microns, 3.0mm and the introduction of cable 8 font type.
  • Fasten design makes installation easy. For connecting to other devices and fiber optic panels.
  • No electrical power supply is needed to assemble the Fast SC Connector.

Features

  • 1.Highly stable and reliable performance
  • 2.Intermateability IEC 61754-4
  • 3.EU regulation : RoHS
  • 4.Flammability Grade : UL94 V-0(Optional)
  • 5.High Success Rate design and technology
  • 6.Reusable termination capability(up to 5 times)
  • 7.Reliable optical performance
  • 8.Low insertion loss ,high return loss
  • 9.Installs fast,operates easy
  • 10.Convenient for field installation

Applications

  • Premise environments
  • Connections at the desk for LAN environments
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber (FTTx) applications
  • Repair and replacement requirements
  • Equipment test leads

Specification

Product Name
Field Assembly Optical Connector
Model No.
UT-SC5203
Connector Type
SC/APC & SC/UPC
Apply for
FTTH Cable 2x3mm φ3.0mm φ2.0mm φ0.9mm
Length
≤52mm
Insertion Loss
UPC≤0.2dB Max 0.4dB
APC≤0.3dB Max 0.5dB
Return Loss
UPC≥50dB
APC≥55dB
Average Assembly Time
2.5 Mins
One Assembly Success Rate
≥98%
Repeat Assembly
≥5 Times

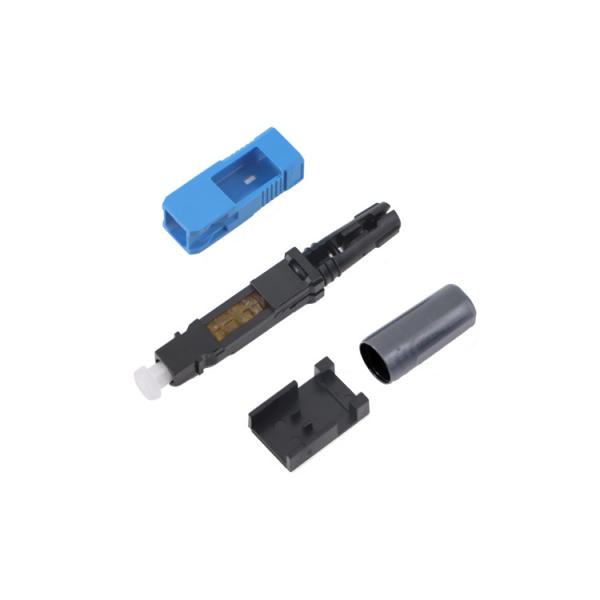

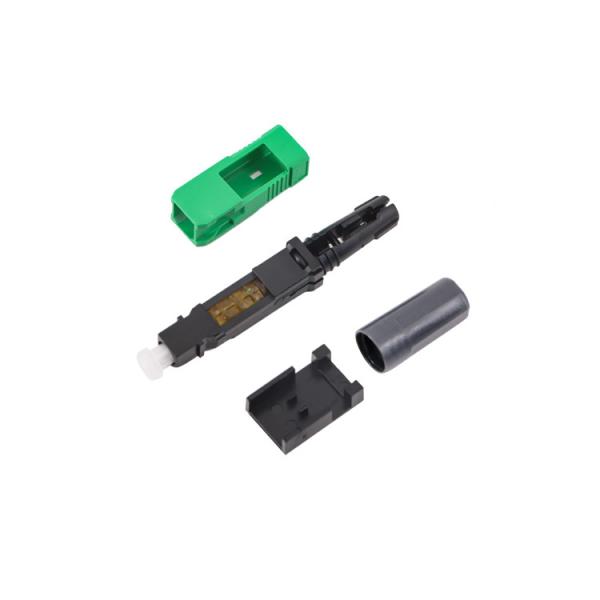

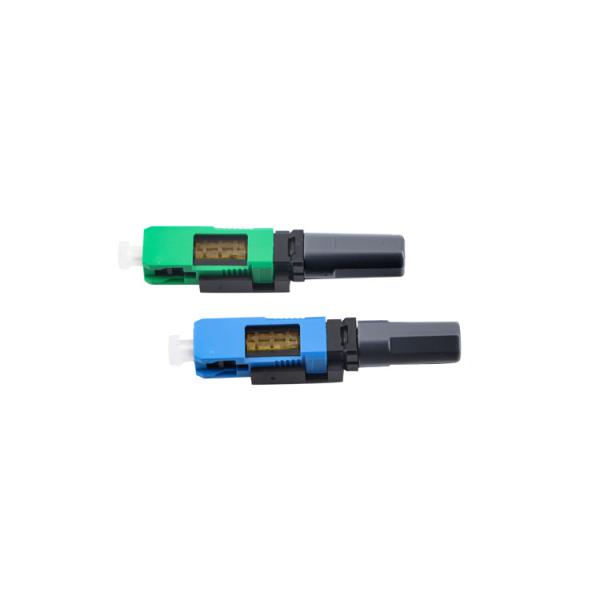

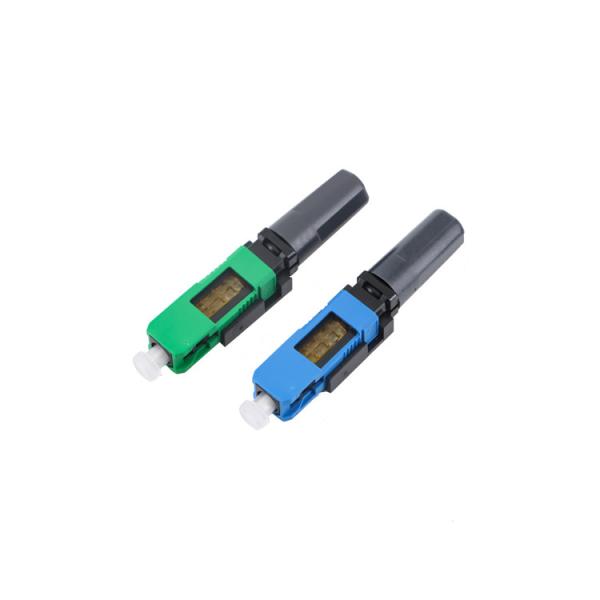

Pictures:
UT-King FTTH Fiber Optic Fast Connector KOC FAOC Field Assembly Optical ConnectorUT-King FTTH Fiber Optic Fast Connector KOC FAOC Field Assembly Optical ConnectorUT-King FTTH Fiber Optic Fast Connector KOC FAOC Field Assembly Optical ConnectorUT-King FTTH Fiber Optic Fast Connector KOC FAOC Field Assembly Optical Connector

FAQ

1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.

2. Can I get a free sample?
Yes,send inquiry,you will get free sample.

3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.

4. What is your MOQ?
No MOQ for any sample test.

5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.

6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)

7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
