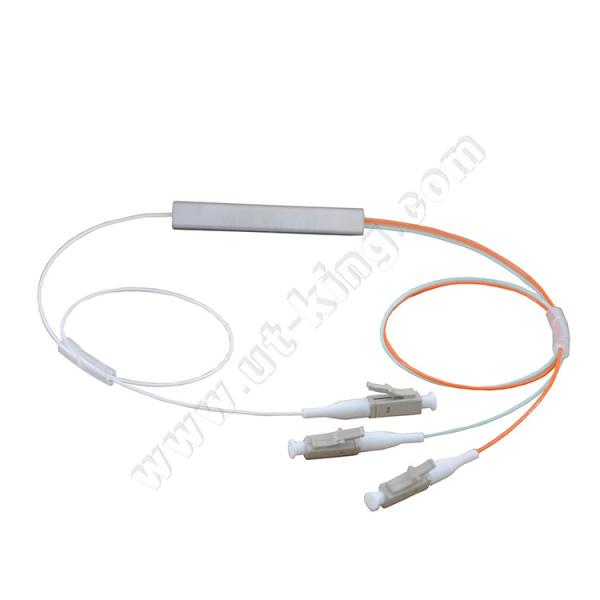

Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Compact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
Specifications
Brand Name :
UT-King
Model Number :
LC 1x2 OM3
Certification :
RoHS, CE, ISO9001
Place of Origin :
Guangdong
MOQ :
1 pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs per week
Delivery Time :
5-10 days
Application :
FTTH FTTX Solution
Type :
Mini Type 1x2
Fiber Type :
G657A1
Connector Type :
LC/UPC
Wavelength :
805nm
Model :
SM/MM
Insertion Loss :
4.5dB
Splitter Ratio :
1*2
Return Loss（dB） :
≥55
Keywords :
PLC Splitter
Description

FTTH Splitter Divisor PLC OM3 1x2 Cable Fiber Optic Steel Tube PLC Splitter

Description

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network (EPON,BPON,GPON etc ) connected local and terminal equipment and realize the optical signal devide.

UT-King provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.We produce all kinds of PLC splitters of fiber optic and sell at home and aboard: mini module type, LGX module type, steel tube type, bare fiber type, ABS plastic module type, Rack type, fusion module tray type, splitter closure type... etc.

Features

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: From 1260nm to 1650nm
  • Wide Operating Temperature: From -40°C to 85°C
  • High Reliability and Stability

Specification

Item 1x2 1x3 1x4 1x6 1x8 1x12
Operating Wavelength(nm) 1260-1650
Fiber Type G657A1 or as customers' order
Connector SC/FC/LC
Ferrule section UPC/APC
Insertion loss(dB) ≤4.1 ≤6.4 ≤7.4 ≤9.3 ≤10.5 ≤12.8
Loss uniformity(dB) ≤0.4 ≤0.4 ≤0.6 ≤1.6 ≤0.8 ≤1.2
Return Loss(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Polarization Dependent Loss(dB) ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.25
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

Temperature correlation loss

-40～85℃(dB)

 ≤0.5 ≤0.5 ≤0.5 ≤1.5 ≤0.5 ≤0.5
Size(mm)(LxWxH) 40×4×4 60×7×4
Working Temperature(℃) -40～85
Storage Temperature(℃) -40～85
Item 1x16 1x24 1x32 1x48 1x64 1x128
Operating Wavelength(nm) 1260-1650
Connector SC/FC/LC
Ferrule section UPC/APC
Fiber Type G657A1 or as customers' order
Insertion loss(dB) ≤13.8 ≤15.8 ≤16.8 ≤18.7 ≤20.5 ≤24.1
Loss uniformity(dB) ≤1.2 ≤1.5 ≤1.5 ≤2.0 ≤2.0 ≤2.5
Return Loss(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Polarization Dependent Loss(dB) ≤0.25 ≤0.3 ≤0.3 ≤0.4 ≤0.4 ≤0.4
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

Temperature correlation loss

-40～85℃(dB)

 ≤0.5 ≤0.5 ≤0.5 ≤1.5 ≤0.5 ≤0.5
Size(mm)(LxWxH) 60×7×4 60×12×6 N/A
Working Temperature(℃) -40～85
Storage Temperature(℃) -40～85
Item 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Operating Wavelength(nm) 1260-1650
Fiber Type G657A1 or as customers' order
Connector SC/FC/LC
Ferrule section UPC/APC
Insertion loss(dB) ≤4.5 ≤7.9 ≤10.8 ≤14.1 ≤17.3 ≤21.1 ≤24.8
Loss uniformity(dB) ≤0.9 ≤1.1 ≤1.2 ≤1.5 ≤1.8 ≤2.2 ≤2.5
Return Loss(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Polarization Dependent Loss(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.4 ≤0.4 ≤0.4
Directivity(dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55

Temperature correlation loss

-40～85℃(dB)

 ≤0.5 ≤0.5 ≤0.5 ≤1.5 ≤0.5 ≤0.5 ≤0.5
Size(mm)(LxWxH) 50×4×4 60×7×4 N/A
Working Temperature(℃) -40～85
Storage Temperature(℃) -40～85

Details of Picture

Compact FTTH OM3 1x2 Fiber Steel Tube PLC SplitterCompact FTTH OM3 1x2 Fiber Steel Tube PLC Splitter
