Specifications
Brand Name :
ZTE
Model Number :
F670L
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
USD 24-26 per pieces
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs one week
Delivery Time :
7-14 work days
Packaging Details :
10/20 pcs 1 carton
Product name :
GPON ONU/ONT
Material :
Plastic
Downlink :
1x10/100/1000Mbps
Power adapter :
EU,US,UK,AU
Dimension :
30 mm x 115 mm x 94 mm
Color :
White
Optical Interface :
SC APC/UPC
Configuration :
4GE+1POTS+2WIFI
Power Supply :
12V 1.5A
WIFI :
2.4G & 5.8G
Firmware :
English
Description

Best price ZTE Dual Band ONT with 4GE+1POTS+2WIFI 2.4G/5.8G F670L GPON ONU

Product Overview:
ZTE ZXHN F670L FTTH is a dual band Gigabit Premium triple-play GPON gateway. It comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance.

Product Feature:

* Flexible Management Mode
The F670L can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plus TR-069 complying with BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.

* Quality of Service (QoS)
The QoS features of the F670L enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and VoIP freely based on their individual service plans. So, service providers could deliver real multi-play applications to users and increase network efficiency.

* Highly Reliable Feature
Dual-Band concurrent Wi-Fi mode so that its Wi-Fi speed can reach up to 1.2Gbps, consisting of 300Mbps (802.11n 2×2 @ 2.4GHz) and 866Mbps (802.11ac 2×2 @5GHz). The dual image ensures uninterrupted services during software download or upgrade, thereby enhancing software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the POTS port, and 1.5 kV for the Ethernet ports.
Product Paramenters
Brand
ZTE
Model
F670L
GPON Port
1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Subscriber interface
4GE+1pots+1USB+WIFI 2.4G &5G
Modes
Bridge, Router, AP
Wavelength downstream
1490nm
Upstream Wavelength
1310nm
Sensitivity
-28 dBm
Consumption
9 W
Dimensions
205 x 120 x 28 mm
Working temperature and humidity
0°C – 40°C, 5% – 95%
Power
12 IN DC
GPON properties
8x T-CONT, 32 GEM ports
Support
VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management
Local (WEB), OMCI, TR069

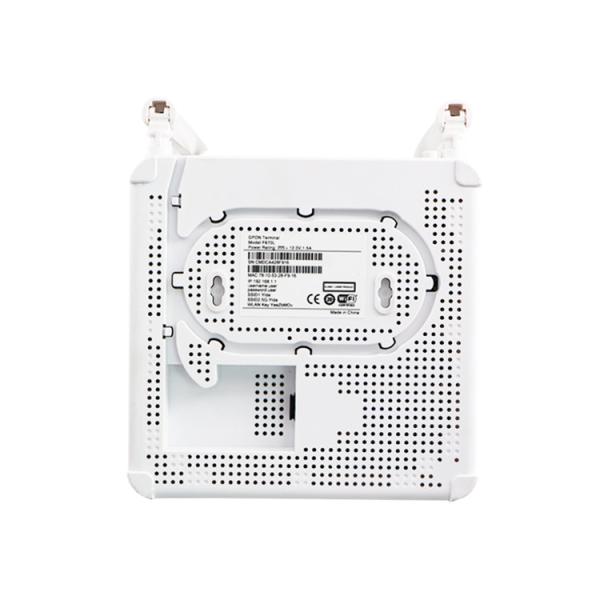

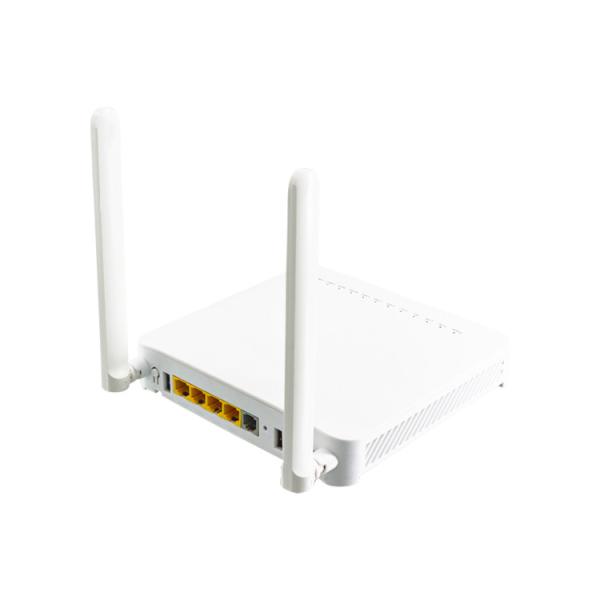

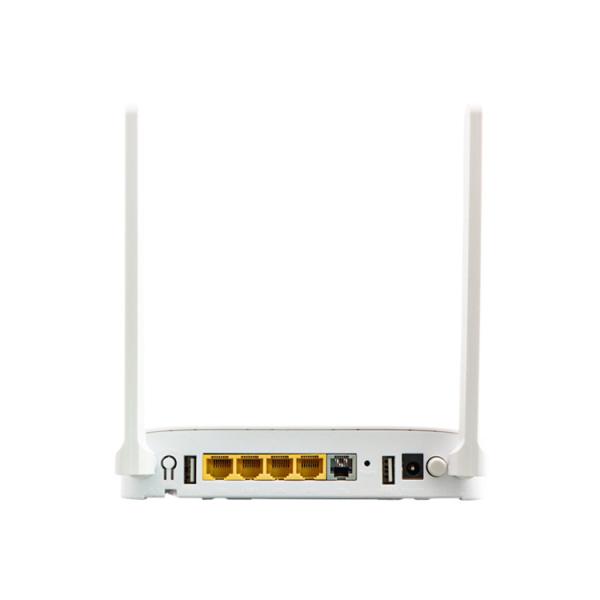

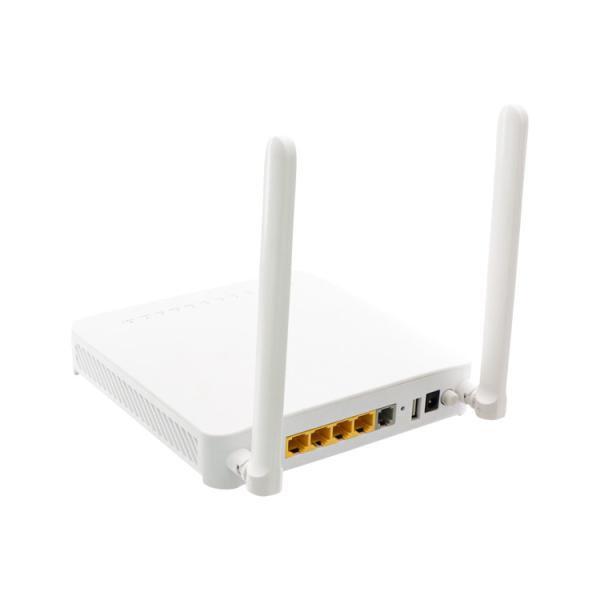

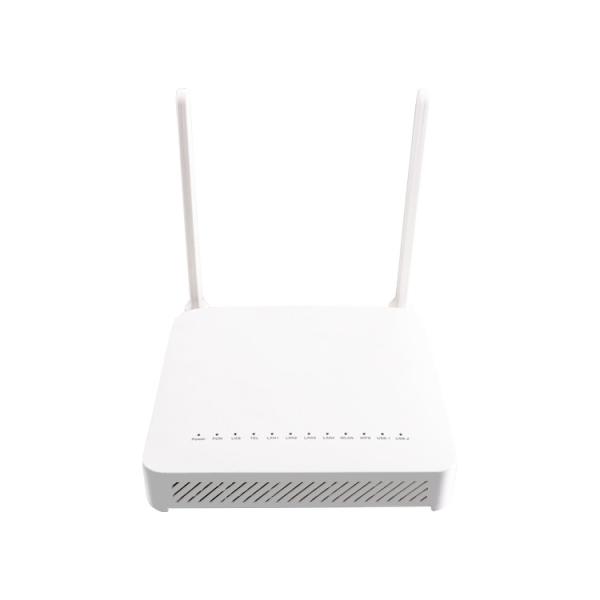

Detail image

ZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8GZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8GZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8GZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8GZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8GZTE F670L GPON Dual Band ONT With 4GE 1POTS 2WIFI 2.4G / 5.8G
