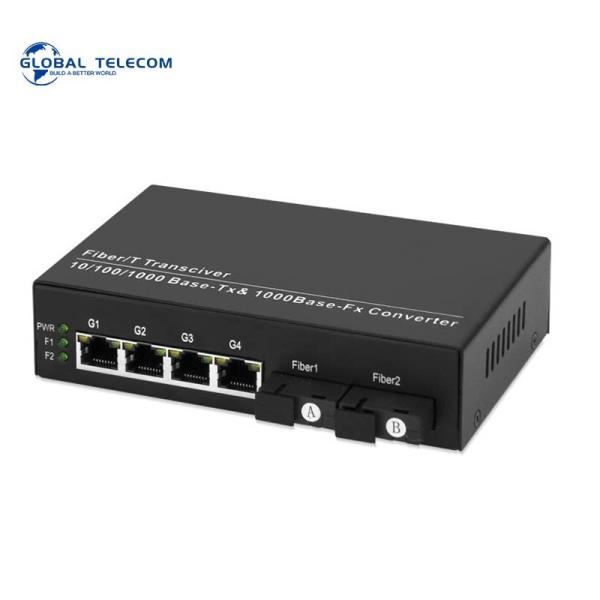

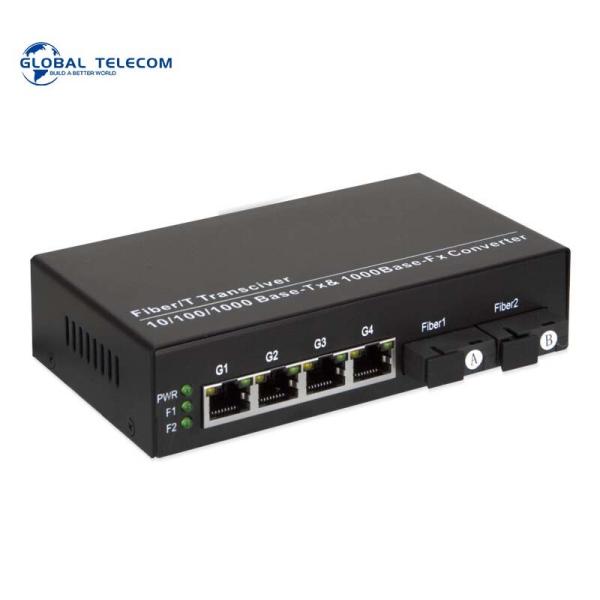

1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
Specifications
Brand Name :
OEM/ODM
Model Number :
2Fiber 4RJ45
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-10 work days
Packaging Details :
stander packing
Product Name :
Fiber Optic Media Converter
Connector :
4RJ-45, 2port fiber
Wavelength :
1310nm/1550nm
Transmision Distance :
20KM
Storage Temperature :
- 40 ~ 70 °C
Fiber Type :
Single Mode
Description

SC 1000Mbps SM Single Fiber 2Fiber 4RJ45 WDM

Fiber Optic Media Converter

Description:

10/100 / 1000M auto-adaptive Ethernet fiber optical transceiver, using the latest design, high-performance chips, high-quality optical transceiver module, stable function and excellent quality, adaptability, and common network equipment can normally connection. For telecommunications, broadcasting, broadband networks that require high-speed, high data traffic and high-performance, high-reliability Ethernet environment.

1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45

Features
1Automatic-compatible with 10Mbps, 100Mbps and 1000Mbps, easy for upgrading network
2Unique IC solution applied
3Supports 10/100Mbps and 10/100/1000M full/half duplex and auto-negotiations ,easy upgrades
4Supports VLAN transmission
5Stable performance more than 50 thousands hours with fault-free
6Different power supply to meet customers’ requirement
7The largest transmission distance reach 120 kilometers
8Dual or single fiber, multi or single mode, for customers’ choice
9All interface with thunder and lightning protection
10In conformity with safety code of FCC, CE and RoHS.
1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
Specification
1 Rate: self-adaptive 10/100M or 10/100/1000M
2 Protocol supported: IEEE802.3/IEEE802.3U etc.
3 Cable type: single / dual fiber
4 Optic mode: single / multimode
5 Transmission mode: half / full duplex
6 Ethernet interface: RJ-45
7 Optic interface: SC/FC/ST
8 Optic wavelength: 850nm, 1310nm, 1550nm
9 Power: 2.5W
10 Power supply: AC220V/0.5A, DC-48 V /0.5A, DC5V/1A
11 Working temperature: 0~50°C
12 Working humidity: 5%-95%
13 Storage temperature: -40°C~70°C
14 Storage humidity: 5%~95%(no-condensing)

1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45

1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45

Cautions:
1. This product is suitable for indoor application.
2. Put on the dust cover of fiber interface when not used.
3. It is forbidden to stare at the TX fiber-transfer end with naked eyes.
4. Single optical fiber transceiver must be used in pair (See the attachment description in delivery).

1000Mbps SM Sc Fiber Media Converter 20KM Transmission 2 Fiber 4 RJ45
