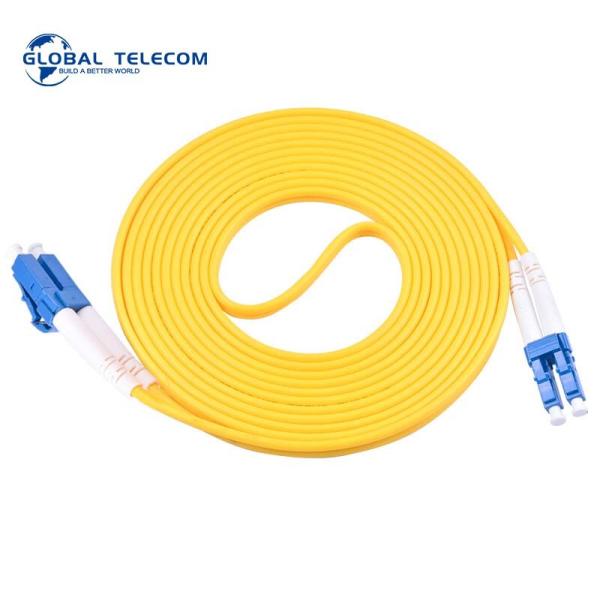

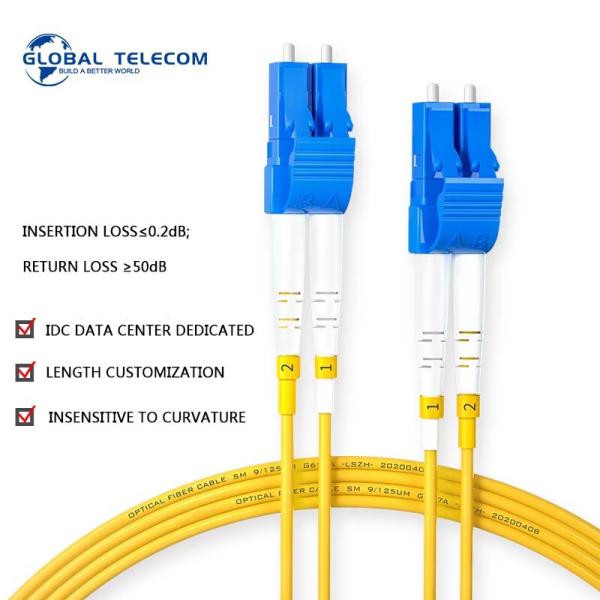

duplex 2mm 3mm Fiber Optic Patch Cord , Lc To Lc Fiber Patch Cable SM
duplex 2mm 3mm Fiber Optic Patch Cord , Lc To Lc Fiber Patch Cable SM
duplex 2mm 3mm Fiber Optic Patch Cord , Lc To Lc Fiber Patch Cable SM
duplex 2mm 3mm Fiber Optic Patch Cord , Lc To Lc Fiber Patch Cable SM
duplex 2mm 3mm Fiber Optic Patch Cord , Lc To Lc Fiber Patch Cable SM
duplex 2mm 3mm Fiber Optic Patch Cord , Lc To Lc Fiber Patch Cable SM
Specifications
Brand Name :
Huayixin or OEM
Model Number :
LC UPC
Certification :
CE/Rosh/ISO9001
Place of Origin :
China
MOQ :
100 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
usually 10 working days after payment or depends on quantity
Packaging Details :
stander packing
Fiber type :
Simplex and Duplex
Application :
FTTH FTTB FTTX Network
Connector type :
LC UPC to LC UPC
Length :
1m 2m 3m or Customized
Insertion loss :
< 0.2dB
Return loss :
≥50dB
Color :
yellow
jacket Material :
LSZH
Quality control :
100% test before shipping
Fiber :
G652D, G655,G657A
Polish :
PC/UPC/APC
OEM :
Avaiable
Description

lc to lc patch cord single mode SM 9/125um duplex 2.0mm 3.0mm LC UPC optical optic fiber patch cord

Features:
Low insertion loss and back reflection loss
Good Durability
Good exchangeability
High temperature stability

Specifications:
Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
Repeatability: ≦0.1
Durability ≦0.2dB typical change, 1000 matings
Interchangeability: ≦0.2dB
Tensile Strength : >10kg
Operating Temperature: -40 ~ 85℃

Applications:

CATV / Metro, Active device termination,Telecommunication networks, Local Area Networks (LANs)Data processing networks, Test equipment, Premise installations, Wide Area Networks (WANs)

Specification
Insertion loss
≤0.25dB Mean (Standard)
Interchangeability
≤0.2dB
Return loss
SM UPC≥50dB SM APC≥60dB MM PC≥35dB
Vibration
≤0.2dB
Operating temperature
-40~75°C
Maximum pulling force
70N(2.0mm cable) 100N(3.0mm cable)
Geometric Specification( if Customer requested)
Items
Parameter
Polishing
PC
APC
ROC
SC/FC/ST
10 ~ 25mm
5 ~ 12mm
LC/MU
7~ 25mm
5 ~ 12mm
Apex Offset
≤ 50um
Fiber Spherical Height
±100nm
Angle
——
8 ± 0.5
