OEM Drop Wire Fiber Optic 2 Core Ftth Indoor Cable FRP KFRP Steel Strength Member
OEM Drop Wire Fiber Optic 2 Core Ftth Indoor Cable FRP KFRP Steel Strength Member
OEM Drop Wire Fiber Optic 2 Core Ftth Indoor Cable FRP KFRP Steel Strength Member
OEM Drop Wire Fiber Optic 2 Core Ftth Indoor Cable FRP KFRP Steel Strength Member
Specifications
Brand Name :
Huayixin and OEM
Model Number :
1-4 core indoor and outdoor
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000KM per month
Delivery Time :
5-8 working days after payment
Packaging Details :

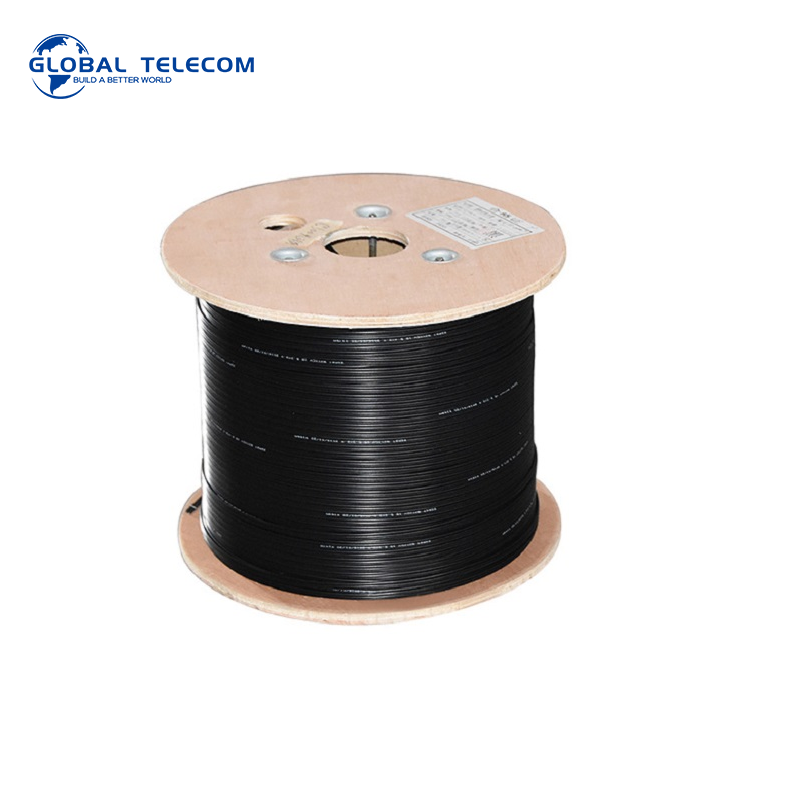

1KM or 2KM per roll
Application :
FTTH, FTTH FTTB FTTX Network, OUTDOOR, telecommunication, Telecom
Product name :
FTTH Indoor Cable
Color :
Black & White
Number of conductors :
≥ 1
Fiber type :
G652D G657A1 G657A2 G657
Jacket :
LSZH, LSZH/PVC, PVC or LSZH, PVC outer sheath
Fiber count :
2, 1, 1-12, 2/4/6/8/12 Core, 4 Cores/Fibers
Length :
0.5m/1m/2m/5m/customized, 2KM, or as required, 1km or 2km, 500m
Oem :
Available, Welcome!!!,
Description

FTTH Drop Cable Singldemode FRP/KFRP/Steel Strength Member Fiber Optic Cable

Description:

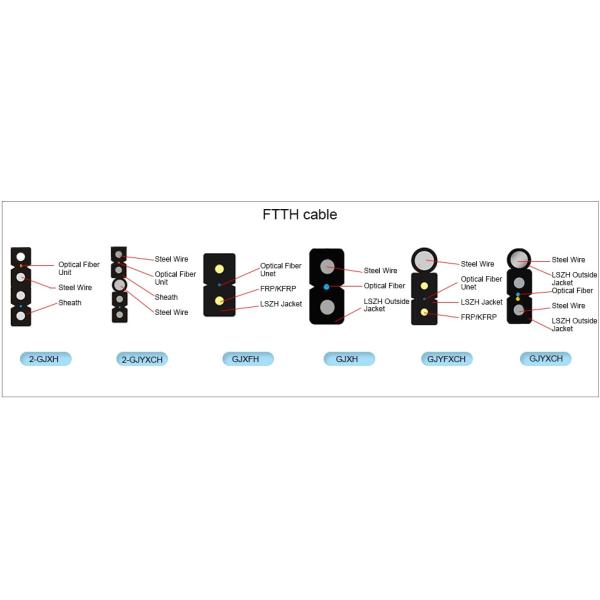

  • The optical fiber unit is positioned in the center.

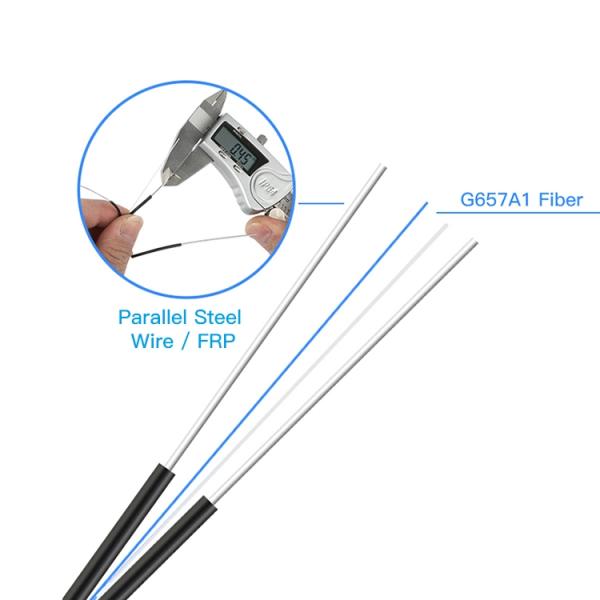

  • Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
  • Then the cable is completed with a black or white color LSZH sheath.

Features:

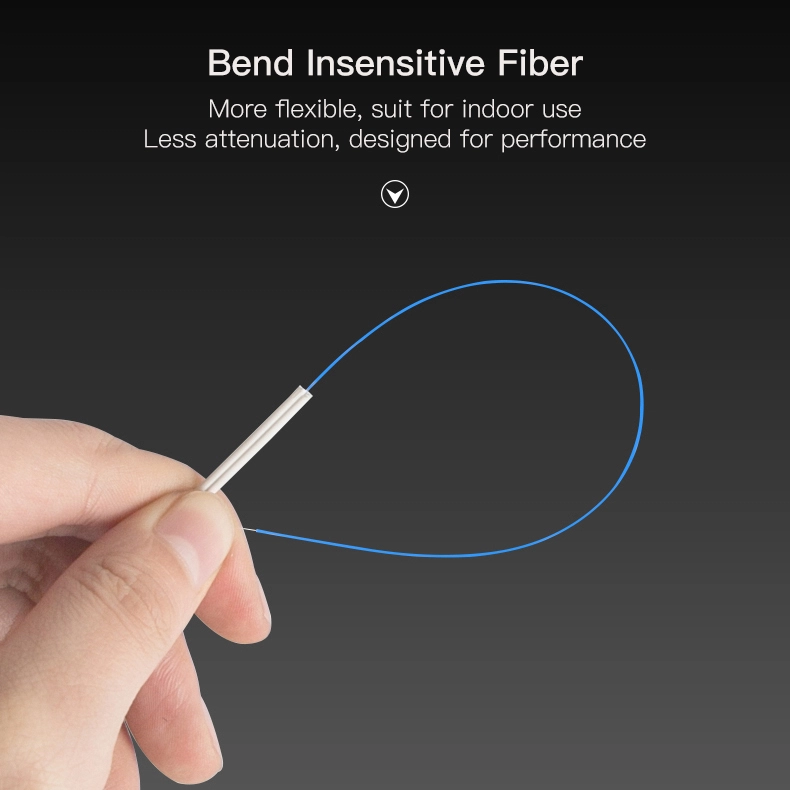

  • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel strength members ensure good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability
  • Novel flute design, easily strip and splice, simplify the installation and maintenance

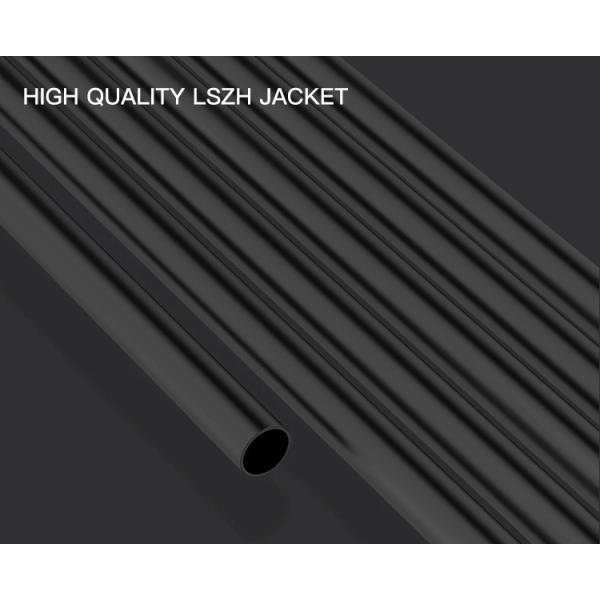

  • Low smoke, zero halogen and flame retardant sheath
  • Simple structure, light weight and high practicability

Application:

  • Used in indoor cabling, especially used for FTTH
  • Used as access building cable

Fiber Characteristic:

Cable code

Fiber

Count

Cable diameter

mm

Cable

weight

Kg/km

Tensilse

Strength

Long/Short term

N

Crush

Resistance

Long/Short term

N

Bedning

Radius

Dynamic/Static

mm
GJXFH-1 1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
GJXFH-2 2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
GJXFH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
GJXH-1 1 (2.0±0.2)×(3.0±0.2) 9 30/60 300/1000 15/30
GJXH-2 2 (2.0±0.2)×(3.0±0.2) 9.5 30/60 300/1000 15/30
GJXH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000

15/30

Optical Characteristics:

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20°C)		 @850nm ≤3.5 dB/km ≤3.5 dB/km
@1300nm ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.45 dB/km ≤0.50 dB/km
@1550nm ≤0.30 dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
