JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing
Specifications
Brand Name :
JDSU VIAVI
Model Number :
MTS-4000
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-8 work days
Packaging Details :
stander packing
Type :
testers & tools, Testers &Tools
Commodity :
JDSU VIAVI MTS-4000 OTDR Touch Screen
Wavelength :
1310/1550dB
Dynamic Range :
35/33dB
Event Dear Zone :
2m
Long Dynamic Range :
50dB
Attenuation Dead Zone :
8m
Application :
fiber loss testing
Description

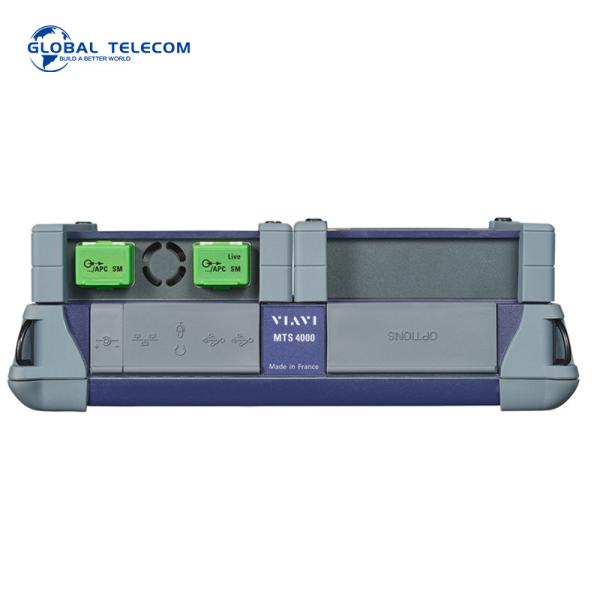

JDSU VIAVI MTS-4000 OTDR Touch Screen
Description:
All-in-one Access/FTTx/Triple-Play Services Test Set
The MTS-4000 is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access/FTTx networks and triple-play services. Modular in design, the MTS-4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

Highlights
· Large 7-inch indoor/outdoor color display
· Cost-effective, compact and handheld platform
· Multi-layer network solution from physical to services layer
· Highly scalable with up to 2 field-replaceable modules
· Connection checker with VFL, power meter and video inspection scope options
· Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet

JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

Features:
· Lightweight platform: only 1.4kg/3 lbs
· Intuitive graphical user interface with touchscreen option
· Extended battery life using smart Lithium ion cell
· Scripting capability for automation, simplification and automatic data reporting
· Easy Internet access via installed web browser
· Remote control access allowing remote assistance from any expert user
· Integration of basic applications such as HTML and PDF reader
· Comprehensive suite of PC software tools for post-processing of test results with FiberTrace (OFS-100) andFiberCable (OFS-200)
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing
Applications:
· Fiber test applications include OTDR, PON meter, video inspection scope, laser source/power meter, and VFL
· Copper test applicationsinclude volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz
· Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet port
· VDSL and ADSL testingusing Infineon Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.
Model LM
Last Mile		 MA
Metro Access		 QUAD
Single/Multi
Wavelength (nm) 1310/1550
1625/1650
(1625 filtered)		 1310/1550
1625/1650
(1625 filtered)		 850/1300
1310/1550
Dynamic range (dB) 32/30
30/28		 37/35
35/34		 27/25
37/35
EDZ* (m) 1 0.9 0.8/0.8/0.9
ADZ** (m) 4 4 4
Range*** (km) 20 60 20/60
