SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
Specifications
Brand Name :
Huayixin or OEM
Model Number :
GJYXFCH/GJXH/GJYXCH
Certification :
CE/Rosh/ISO9001
Place of Origin :
China
MOQ :
10KM
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000KM Per month
Delivery Time :
usually 15 working days after payment or depends on quantity
Packaging Details :
1KM or 2KM per roll
Name :
FTTH optical drop cable
Jacket :
PE or LSZH
Fiber :
G652D/G657A1/G657A2
Fiber mode :
Single mode
Fiber Number :
1/2/4 core
OEM :
Avaiable
Sample :
Avaiable
Warranty :
5 years
Description

  • ftth fiber optic cable drop cable 1 core 2 core 4 core G652D G657A1 LSZH jacket single mode optical drop cable

  • Characteristic:

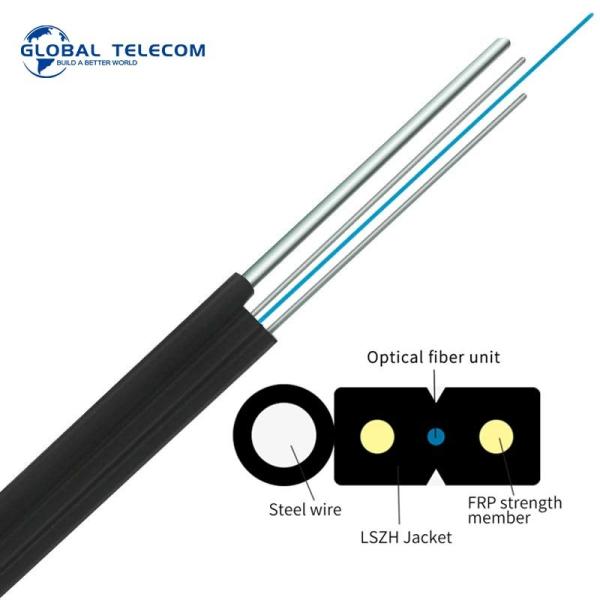

  1. Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
  2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
  3. Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
  4. Simple structure , light weight and high practicability
  5. special flute desigh , easily strip and splice , simplify the installation and maintenance
  6. Low smoke , zero halogen and flame retardant sheath
  • Optical Characteristic:
Model
 142 242 342 442
Type G.652D G.657A 50/125 μm 62.5/125 μm

Attenuation(+20 ℃)		 850nm ≤3.0dB/km ≤3.5dB/km
1300nm ≤1.5dB/km ≤1.5dB/km
1310nm ≤0.40dB/km ≤0.35dB/km
1550nm ≤0.3dB/km ≤0.25dB/km
Brandwidth(Class A) 850nm ≥500MHz.km ≥200MHz.km
1300nm ≥1000MHz.km ≥600MHz.km
Numerical Aperture 0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wave length ≤1260nm ≤1480nm
  • Technical Parameters
Fiber Cores Cable OD(mm) Cable/Weight(kg/km) Tensile Strength(long/short term) Crush Resistance(long/short term N/100mm Bending Radius Static/Dynamic mm
1 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
2 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
4 (2.0±0.2)* (5.5±0.2) 21 60/120 300/1000 15/35
6 (2.0±0.2)* (6.0±0.2) 22 60/120 300/1000 15/35

SM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop WireSM FTTH Drop Fiber Optic Cable G652D G657A1 Zero Halogen Fiber Optic Drop Wire
