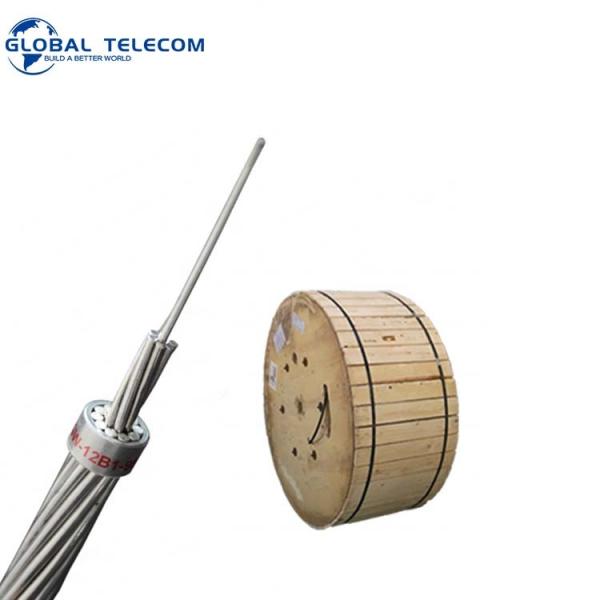

OEM G652d Opgw Fiber Optic Cable For Outdoor Use 24 Core 48 Core
OEM G652d Opgw Fiber Optic Cable For Outdoor Use 24 Core 48 Core
OEM G652d Opgw Fiber Optic Cable For Outdoor Use 24 Core 48 Core
OEM G652d Opgw Fiber Optic Cable For Outdoor Use 24 Core 48 Core
Specifications
Brand Name :
Huayixin Or OEM
Model Number :
OPGW
Certification :
CE/Rosh/ISO9001
Place of Origin :
China
MOQ :
Customized
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
3000KM Per month
Delivery Time :
15 working days after payment
Packaging Details :
wooden Drum Packing
Product Name :
OPGW Fiber optic cable
FIber Type :
G652D/G657A1/G657A2
Crush Resistance Long/Short Term N/100mm :
300/1000
Jacket Color :
Black, White or Grey
Storage temperature :
-40~70℃ for fiber optic cables
Working temperature :
-30~70℃ for fiber optic cables
Length :
Customized
OEM :
Avaiable
Packing :
wooden bucket for fiber optic cables
MOQ :
Customized
Description

opgw power Aeirlal ground wire 24 core 48 core opgw fiber optic cable single mode g652d opgw fiber ooptic cable

Product Description:

OPGW cable is suitable for installation on new power lines with double function of ground wire and communication.It is the short form of Optical Fiber Composite Overhead Ground Wire. Especially for installation on normal voltage and extra high voltage power lines. OPGW cable can replace conventional ground wire of old power line with increasing fiber communication function. OPGW cable conduct short circuit current and provide lightning resistance.

Single Layer Central Tube OPGW
Model Cross Section Cores OD(mm) Weight (KG/KM) RTS (KN) Short Circuit KA2s
OPGW-12(40.6; 4.7) 32 12 7.8 243 40.6 4.7
OPGW-24(54; 8.4) 42 24 9 313 54 8.4
OPGW-24(43.5; 10.6) 42 24 9 284 43.5 10.6
OPGW-36(55.9; 17.5) 54 36 10.2 394 67.8 13.9
OPGW-48(73.7: 17.5) 61 48 10.8 438 73.7 17.5
OPGW-48(55.1; 24.5) 61 48 10.8 358 55.1 24.5
OPGW-54(80.8; 21.7) 68 54 11.4 485 80.8 21.7
OPGW-60(54.5; 41.7) 75 60 12 459 63 36.3
OPGW-60(54.5; 41.7) 76 60 12 385 54.5 41.7

Double Layer Central Tube OPGW
Model Cross Section Cores OD(mm) Weight (KG/KM) RTS (KN) Short Circuit KA2s
OPGW-12(121.7; 42.2) 96 12 13 671 121.7 42.2
OPGW-24(141.0; 87.9) 127 24 15 825 141 87.9
OPGW-24(77.8;128.0) 127 24 15 547 77.8 128
OPGW-28(121.0;132.2) 145 28 16 857 121 132.2
OPGW-36(138.2;183.6) 163 36 17 910 138.2 186.3
OPGW-36(99.9;213.7) 163 36 17 694 99.9 213.7

Double layer Stranded OPGW
Model Cross Section Cores OD(mm) Weight (KG/KM) RTS (KN) Short Circuit KA2s
OPGW-24(55.4; 62.9) 89 24 12.6 381 55.4 62.9
OPGW-24(90.0; 86.9) 110 24 14 600 90.0 86.9
OPGW-28(64.6;85.6) 104 28 13.6 441 64.6 85.6
OPGW-36(79.0;129.5) 127 36 15 537 79.0 129.5
OPGW-36(85.0;148.5) 137 36 15.6 575 85.0 148.5
OPGW-48(98.6;162.3) 145 48 16 719 98.6 162.3

Three layer Stranded OPGW
Model Cross Section Cores OD(mm) Weight (KG/KM) RTS (KN) Short Circuit KA2s
OPGW-28(343.0; 191.4) 232 28 20.15 1696 343 191.4
OPGW-26(116.5; 554.6) 254 26 21 889 116.5 554.6
OPGW-48(366.9;687.7) 347 48 24.7 2157 366.9 687.7
OPGW-96(358.7;372.1) 282 96 22.5 1938 358.7 372.1

Central type description:

The central stainless steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their design is fully adapted to the most common electric line needs.

Characteristic:

1. High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability .

2. Engineering support supervising and providing its own line of accessories hardware .

3.Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lightening

4. To construct OPGW must cut power, resulting in greater loss, thus OPGW must be used in constructing high pressure line over 110kv;

5. Apply to the transformation of old lines.
