Specifications
Brand Name :
Global Telecom Or OEM
Model Number :
GYTC8S
Certification :
CE/Rosh/ISO9001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000KM per month
Delivery Time :
5-8 working days after payment
Packaging Details :
Wooden packing / Customized
Name :
fiber optic launch cable
Number of conductors :
up to 144 core
Fiber type :
G652D/G657 ; SM or MM
Color :
Black
Jacket material :
PE, TPU, PVC/LSZH
Operating temperature :
-55~+85°C
Warranty :
30 years
Description

Product Description:

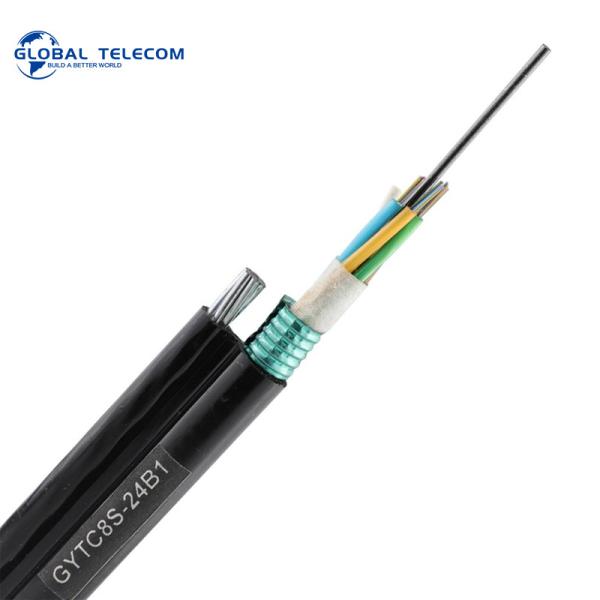

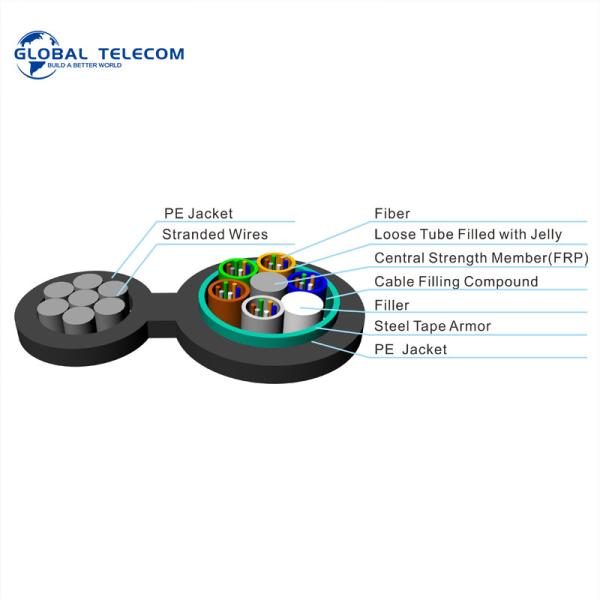

The mental strength member is made up of stranded steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.

Features:

Figure 8 Self-supporting fiber optic cable

02-144 fibers, SM G652D

Stranded loose tube structure

Corrugated steel tape armored

PE outer sheath
Good mechanical and temperature resistant performance.
Crush resistance and flexibility.
Easy to installation and operation.

More than 30 years life span.

Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)		 '@850nm ≤3.0 dB/km ≤3.0 dB/km
'@1300nm ≤1.0 dB/km ≤1.0 dB/km
'@1310nm ≤0.36 dB/km ≤0.40 dB/km
'@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth
(Class A)		 '@850nm ≥500 MHz·km ≥200 MHz·km
'@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters

Cable Type Fiber Count tubes fillers Cable Weight kg/km Tensile Strength
Long/Short TermN		 Crush Resistance
Long/Short Term N/100mm		 Bending Radius
Static/Dynamic mm
GYTC8S-2~6 2~6 1 4 214 1000/3000 300/1000 10D/20D
GYTC8S-8~12 8~12 2 3 214 1000/3000 300/1000 10D/20D
GYTC8S-14~18 14-18 3 2 214 1000/3000 300/1000 10D/20D
GYTC8S-20~24 20-24 4 1 214 1000/3000 300/1000 10D/20D
GYTC8S-26~30 26-30 5 0 214 1000/3000 300/1000 10D/20D

ftth outdoor armored fiber optic cable single mode GYTC8S cableftth outdoor armored fiber optic cable single mode GYTC8S cable

ftth outdoor armored fiber optic cable single mode GYTC8S cable

ftth outdoor armored fiber optic cable single mode GYTC8S cableftth outdoor armored fiber optic cable single mode GYTC8S cable

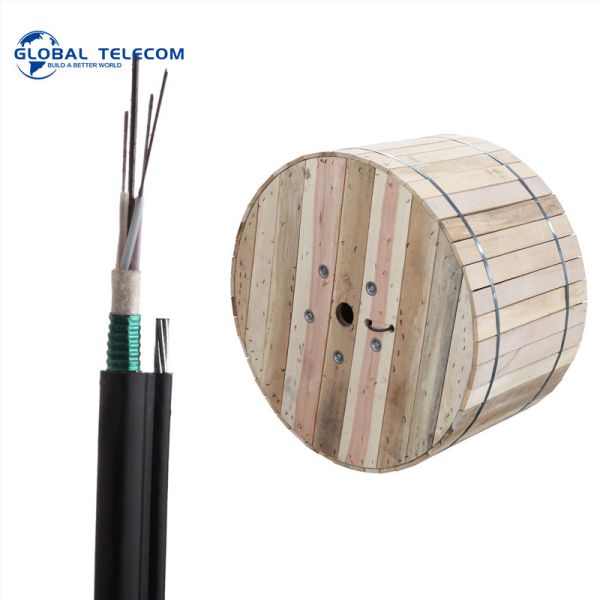

Shipping and Loading :

ftth outdoor armored fiber optic cable single mode GYTC8S cable
