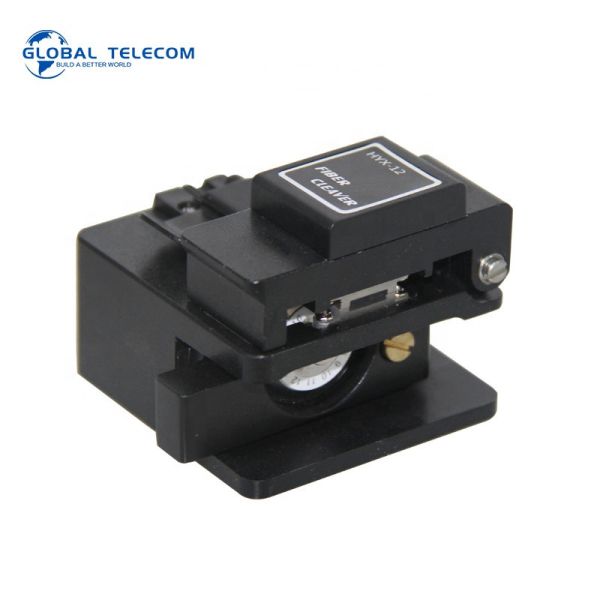

HYX 12 Fiber Optic Cable Cleaver For High Precision Fiber Cutting
HYX 12 Fiber Optic Cable Cleaver For High Precision Fiber Cutting
HYX 12 Fiber Optic Cable Cleaver For High Precision Fiber Cutting
HYX 12 Fiber Optic Cable Cleaver For High Precision Fiber Cutting
Specifications
Brand Name :
HYX
Model Number :
HYX-12
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-8 work days
Packaging Details :
stander packing
Type :
fiber cleaver, Single & Ribbon fiber cable cleaver
Typical Blade Life Span :
Total 48,000 fiber cleaves
Cleaved Length :
Single fiber: 8-20mm / Ribbon fiber: 10mm
Cladding Diameter :
125um
Reclaim Function :
Blade pushback
Typical Cleaved Angle :
Less than 0.5 Degrees
Dimensions :
2.44" x 3.93" x 3.14" (62mm x 100mm x 80mm)
Holder :
Single: Universal holder / Ribbon: Replaceable holder
Description

Optical Fiber Cleaver HYX-12 Fiber Cable Cutter High Precision

HYX-12 High Precision Cleaver is an instrument for high precision fiber cutting.

HYX-12 can be installed with a variety of holders for ribbon cable up to 12 fibers as well as universal holder which is applicable to 250μm, 900μm, 3.0mm fiber and flat cable.

Work efficiency can be maximized with easy and simple 2 step operations.

The blade provides over 48,000 fiber cleaves by easy and simple blade position selection. Helped by unmatched functionalities, users can achieve the most accurate cleaving and ideally prepare their fusion splicing.

HYX 12 Fiber Optic Cable Cleaver For High Precision Fiber Cutting

Features

01,Real one-step operation to complete cutting ;

02,Convenient operation,right ot left hand in the hand or desktop;

03,Optical fiber placement is simple ,sutomatically reset after cutting,improve work efficiency;

04,Ingenious presser foot design to prevent fiber damage caused by secondary return;

05,The life of the blade is morethan 3000 times on one side,with 16 cutting end faces;

06,Made of magnesium alloy material, high strength, small submission and light weight;

07,Lining elastic sponge pad .

HYX 12 Fiber Optic Cable Cleaver For High Precision Fiber Cutting

Type

Single & ribbon fiber cable cleaver

Cladding Diameter

125μm

Cleaved Length

Single fiber: 8~20mm / Ribbon fiber: 10mm

Applicable Fiber Cable

Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable
Ribbon fiber: 2 to 12 ribbon fiber cable

Typical Cleaved Angle

Less than 0.5 Degrees

Typical Blade Life Span

Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)

Operation Steps

2 Steps

Reclaim Function

Blade push back

Holder

Single: Universal holder / Ribbon: Replaceable holder

Dimensions:

2.44" x 3.93" x 3.14" (62mm x 100mm x 80mm)

Weight:

0.83lbs (379 grams)
