Specifications
Brand Name :
Fujikura
Model Number :
FSM-70S
Certification :
CE/Rosh/ISO9001
Place of Origin :
Japan
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 sets per month
Delivery Time :
5-8 working days after payment depends on quantity
Packaging Details :
fujikura stander packing
Name :
FIber optic fusion splicer machine
Brand :
Fujikura
Model :
FSM-70S
Origin of place :
Japan
Use :
FTTX/FTTH
Splice mode :
Single fiber
Splice loss :
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Fiber type :
SM MM DS NZDS
Warranty :
3 years
Language :
English
Description

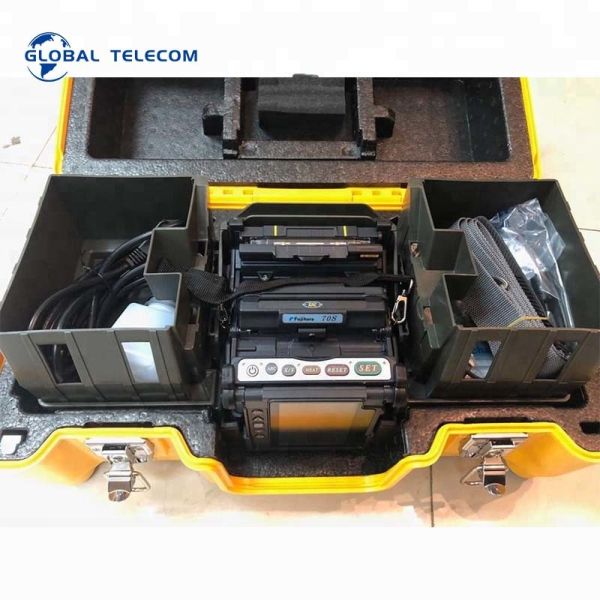

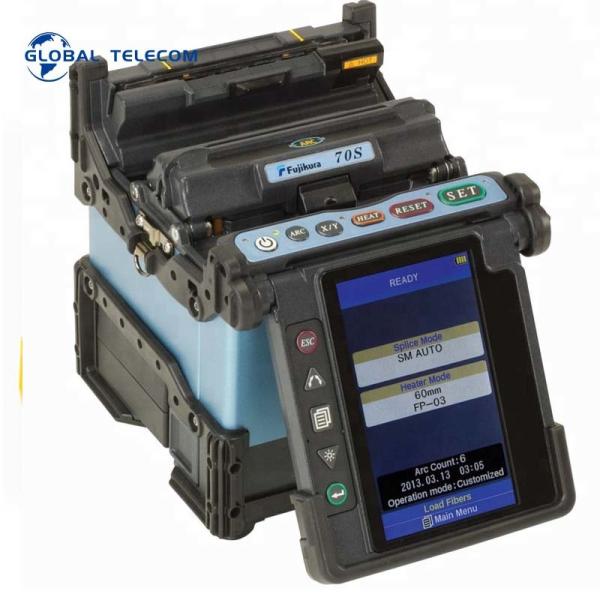

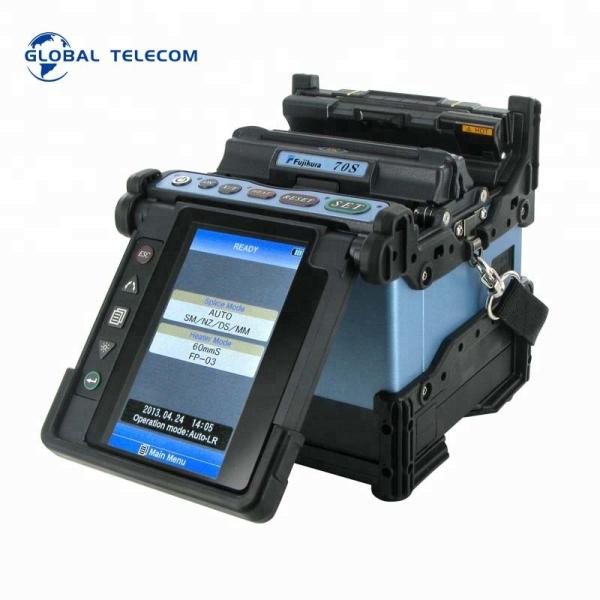

Japanese brand fujikura FSM-70S with CT-30 cleaver arc fusion splicer for fiber optic splicing machine

Fujikura fusion splicer with CT-06 or CT-30 fiber cleaver, 4.1" color screen, standard accessories, Multiple foreign languages menu is optional.

Features:
1.Automated and programmable wind protector
2.14-second automated tube heater
3.Fully ruggedized for shock, dust and moisture
4.Li-Ion battery with 200 splices/shrinks per charge
5. 5mm cleave length for splice on connector or small package needs
6.Sheath clamp or fiber holder operation
7.On-board training and support videos
8.Internet software upgrades
9.Multi-function transit case with integrated workstation
Parameter
Applicable fibers

Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF

(G.655)

Cladding dia. 80-150um
Cleave length 5mm to 16mm with sheath clamp
Splice mode / heating mode Total 100 splice modes / 30 heating modes
Splice loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and

0.04dB (NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.

Attenuation splice function

Intentional high splice loss of 0.1dB to 15dB(0.1dB step)can be made for an in-line fixed attenuator.
Splice time / tube heating time Typical 7sec with SM / Typical 14sec with FP-03 (60mm) sleeve
Splice result storage Last 2000 splices
Viewing methods / magnification

2 axis CMOS camera with 4.73” color LCD.

X / Y (320X magnification), or both X and Y simultaneously (200X magnification)

Tension test 1.96 to 2.25N
Applicable protection sleeve 60mm, 40mm and Fujikura micro sleeves
No. of splice / heating per battery full charge Typical 200 cycles with BTR-09
Electrode life 3000 splices
Size / weight 146W x 159D x 150H (mm) / 2.7kg (including battery)
Operating condition

Altitude : 0 to 5,000m above sea level, Wind : 15m/sec

Temperature : -10 to 50deg C,

Humidity : 0 to 95%RH, non-dew

Resistance features*1

Shock : 76cm (30inch) all surface drop

Dust : Exposure to dust (0.1 to 500um dia Alumina Silicate), IP5X Rain :H=10mm/hr for 10min, IPX2

Other features PC software upgrade / data management
Terminals

USB 2.0 (Mini-B type) connector for PC communication.

6-pin Mini-DIN connector for HJS-02 or HJS-03 power supply
