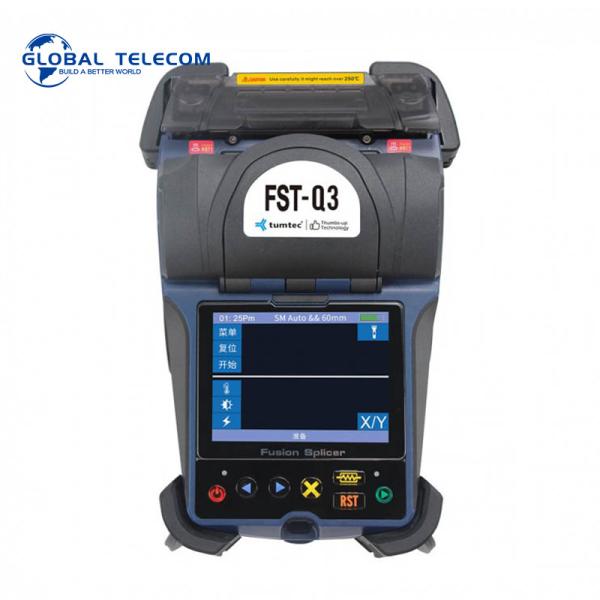

FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
Specifications
Brand Name :
Tumtec
Model Number :
FST-V1 FST-Q3
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-10 work days
Packaging Details :
stander packing
Type :
Fiber fusion splicer, FTTx and FTTH
Warranty Time :
3 years
Application :
Fiber cable splicing
Operating temperature :
re: -15~+55℃
Use :
FTTH
Motor numbers :
4
Language :
Multi Language
Battery :
2200mAh
Description

Tumtec FST-V1 FST-Q3 Optic Fiber Fusion Splicer Machine high quality hot sales fusion splicer

Features
Tumtec new fiber fusion splicer FST-V1, up to 3S boot, 6S splicing. 13S heating

Compact active V-groove fusion splicer, Unique three-dimensional core setting, excellent splicing effect, lower loss, improve the work efficiency.
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint MachineFST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
FST-V1 FST-Q3 Fusion Splicing Machine 4 Motor Fiber Optic Cable Joint Machine
Model
FST-Q3/V1
Appicable Fibers
SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable
0.25-3.0mm/Indoor Cable
Cleaved Length
Coating Diameter: 0.125-1mm/Cleave length:8-16mm
Splicing Mode
Preset 41 splicing modes, storable 100 modes
Typical Splice Loss
SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard)
Return Loss
≥60db
Lighting
2 powerful white LEDs
Splicing Time
SM fast mode: 6s
Estimated Splice Loss
yes
Protection Sleeve Length
20-60mm
Heating tank
Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes
Heating Time
Fast heating time: 13s, Typical Heating Time: 30s
Results Storage
20000 latest records & 200 images
Tension Test
1.5-2.0N
Display
3.5" high resolution display with touch screen
Fiber View & Magnification
X,Y,XY,X/Y:380×Magnification
Power Supply
AC Input 100-240V,DC Input 12-15V

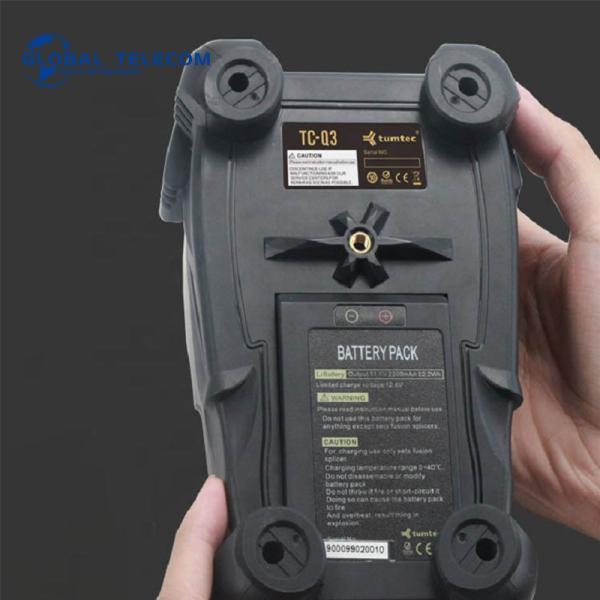

Battery capacity
2200mAh battery capacity
Heating times
typical above 120 times(splicing+heating)
Operating Methods
Button/Touch Screen
Automatic Calibration
Automatic ARC calibration by air pressure and temperature
Electrode Life
Automatic ARC calibration by air pressure and temperature
Terminal
USB 2.0
Weight
1.15 KG (including rubber Bumper)
Dimension
132W*205L*98Hmm (including rubber Bumper)
Operating Condition
Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s
Storage Condition
0~95% relative humidity, -40~80℃; battery storage: -20~30℃
