3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
Specifications
Brand Name :
Signal Fire
Model Number :
Ai-9
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-8 work days
Packaging Details :
stander packing
Product name :
Fiber Fusion Splicer
Type :
Core Alignment
Language :
Multiple Languages
Splicing time :
6 seconds
Electrodes life :
3000 arcs
Heating time :
14 seconds
Battery :
7800 mAh
Typical splice Loss :
0.025dB(SM),0.01dB(MM) 0.04dB(DS/NZDS)
Warranty :
3 Years
Description

Cheap price fusion splicing machine, factory supply AI-9, fiber optic fusion splicer

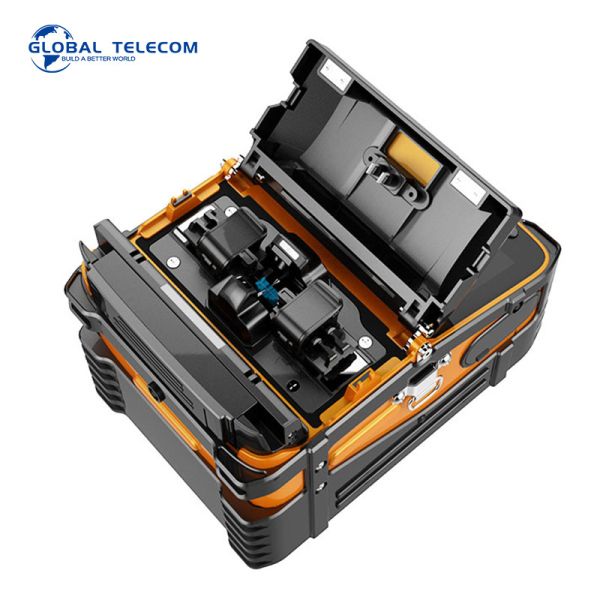

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer.
It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine. In the market with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 16 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design.
The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation.
The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
3000 arcs Optical Fiber Fusion Splicer , core alignment ai9 splicing machine
Fiber alignment Core/cladding alignment / Manual alignment
Splicing time 6S
Heating time 14S
Heating mode Automatic heating (Preheating)
Focus mode Six motors Auto focus
Applicable Rbers SM(G.652&G.657},MM (G.651),DS(G.657),NZDS (G.655)
Splice Loss 0.025dB (SM),0.0IdB (MM) 0.04dB (DS/NZDS)
Control technology Real-time control and calibration of fusion ARC
Return loss Better than 60DB
Fiber diameter Cladding Diameter: 80-150pm Coating Diameter: 100-1000pm
Fiber Cleave Length Coating less than 250pm: 8-16mm Coating less than 250-1000pm: 16mm
Built-in lighting easy for night operation
Tension Test Standard 2N
Fiber holders 3 in ' fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification 3001or XorY view, 150 for X or Y view
Screen 5 inch TFT color display
Splicing Mode Normal / high precision splicing
Splicing record storage Synchronize to the phone, the server to cloud storage unlimited
Built-in battery 780C mA high-capacity lithium battery, charghg time < 3.5 hours, continuous splicing and heating about 260 times
