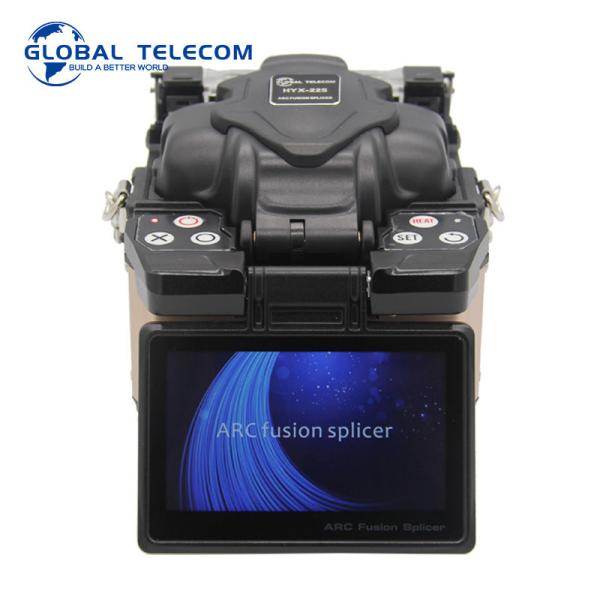

HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
Specifications
Brand Name :
HYX or OEM
Model Number :
HYX-22S
Certification :
CE/ROSH/IOS9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500sets
Delivery Time :
5-8 work days
Packaging Details :
stander packing
Type :
fusion splicer, Core Alignment
Warranty Time :
2 Years
Power Input :
50W
Max Capacity :
4000mAh
Heating time :
14 seconds
Splicing time :
6 seconds
Battery :
5200 mAh
Electrodes life :
5000 arcs
Description
Hot sales HYX-22S tumtec core alignment chinese manufacturer touch screen 6 mortor fusion splicer price

HYX-22S mainly suitable for FTTH construction,high quality and low loss;precise alignment clad alignment , portable size, ruggedized housing, can used in harsh environment.

Features:
•Industrial quad core CPU, high quality and low loss.
•4.3'' high ewsolution color LCD touch screen, 400X magnification, visible clearly with bare eyes
•3 high-power white LEDs and illuminated keypads simplifies your work at night.
•Detachable multifunction fixture, suitable for various fiber type.
HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
HYX-22S Fiber Optic Splicing Machine Touch Screen 6 Mortor
Model HYX-22S
Dimension 120Wx140Lx130H
Weight 1.5KG (with battery)
Applicable Fibers SM(ITU-T G.652&G.657)/MM(ITU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655)
Compatible Fiber/Cable 0.25-3.0mm/Indoor Cable
Cleaved Lenghth Diameter:0.125-1mm/Cleave length:8-16mm
Cladding Diameter 80-15-μm
Splicing Mode Pre-set 41 splicing modes,max 100 modes
Heating Mode Pre-set 5 heating modes (20/3040/50/60mm),max 100 modes
Typical Splice Loss SM:0.03dB/MM:0.02dB/DS:0.05dB/NZDS:0.05dB/G.657:0.03dB(ITU-T Standard)
Return Loss ≥60dB
Splicing time Qucik mode:6S
Estimated Splice Loss Available
Heating Sleeve Length 20-60mm
Tension Test 1.96-2.25N
Storage Condition 0~95% relative humidity,-40~80℃
Display 90°bi-directional view,5.0"Color High Resolution Display
Power Supply AC Input 100-240V,DC Input 12-15V
No.of splice/heating with Battery 5200mAh Bettery Capacity,Typical 250 times (Splice+Heat)
Operating Methods Button/Touch Screen
