Cat6a Cat5e Single Mode SC UPC Fiber Optic Patch Cord
Cat6a Cat5e Single Mode SC UPC Fiber Optic Patch Cord
Cat6a Cat5e Single Mode SC UPC Fiber Optic Patch Cord
Cat6a Cat5e Single Mode SC UPC Fiber Optic Patch Cord
Cat6a Cat5e Single Mode SC UPC Fiber Optic Patch Cord
Cat6a Cat5e Single Mode SC UPC Fiber Optic Patch Cord
Specifications
Brand Name :
FUJIOPTICS
Model Number :
fiber optic patch cord
Certification :
ROHS ,CE ,ISO
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs
Delivery Time :
5-7 working days
Packaging Details :
PE Bag and carton
Application :
WAN LAN FTTX CATV
Connector :
SC/UPC
Material :
PVC
Fiber cable diameter :
3.0mm,2.0mm,0.9mm
Type: :
Single Mode
Description

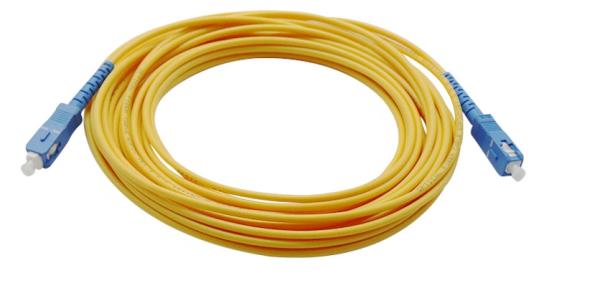

Single Mode SC/UPC Fiber Optic Patch Cord , Cat6a Cat5e Patch Cord

Product Description

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


Feature:

Screw-thread coupling mechanism.

Ceramic ferrules.

Low insertion loss, high return loss.

Good in repeatability and exchangeability.

100% Insertion, Return Loss, End Face and Interference inspection.

Excellent mechanical endurance.

High credibility and stability.

Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.

Applications:

1. CATV.

2. Optical fiber communication systems.

3. Optical fiber data transmission.

4. Building network access.

5. Cabling system, ODF.

6. FTTX applications.

Connector type FC,SC,LC,ST,MU,E2000,D4,DIN
Fiber mode SM MM
End face PC UPC APC PC
IL(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
RL(dB) ≥45 ≥50 ≥60 ≥35
Other model MT-RJ,MPO
IL(dB) ≤0.7 / ≤0.7 ≤0.5
RL(dB) ≥30 / ≥50 ≥25

Ordering options:

1) Connector type: FC, SC, LC, ST

2) Ferrule End-face: PC, UPC, APC

3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4) Cable Quantity: Simplex, Duplex

5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm

6) Cable Length: 1, 2, 3 meter or customized

7) Cable type: PVC, LSZH
