24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
Specifications
Brand Name :
Fujioptics/OEM/ODM
Model Number :
FJ-SC0155
Certification :
ROHS.CE ,ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, D/P, Western Union
Supply Ability :
10000pcs
Delivery Time :
5-7 working days
Packaging Details :
PE bag ,Carton box
Connector Type :
MPO
Ferrule End-face :
UPC, APC
Fiber Type :
SM/MM
Cable Type :
8core, 12core, 24core
Cable OD :
3.0mm
Cable Jacket :
PVC LSZH OFNR OFNP
Cable Length :
1M, 2M, 3M Or Customized
Cable Color :
Orange, Yellow, Aqua, Purple, Violet Or
High Light :
fiber optic cassette, optical fiber connector
Description

24 Core OM4 MTP / MPO Fiber Optic Patch Cord for MPO Cassettes
Description:

MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic connectors.
They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc.

Features:

100% optic test
Good exchange ability and good durability;
Available in fiber bunch, ribbon fan-out, pigtail available;
Meets ISO9001, ROHS and Bell core GR 326-core standards;
Customized specifications welcomed.

Application:

CATV, metro Test equipment
Telecommunication networks
Local area networks (LAN)
Wide area networks (WAN)
Premise installations
Specification:

Fiber Connector

Connector A
Connector Type 8, 12 or 24 -Fiber MPO /MTP
Ferrule of end-face UPC, APC
Housing Color MM (Beige/Aqua), SM (Yellow/Green)
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(500 Matings) < 0.2dB
Connector B
Connector Type LC/SC
Ferrule of end-face UPC, APC
Housing Color Blue, Beige, Aqua
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(1000 Matings) < 0.2dB


Fiber Cable

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24 cores
Outer diameter 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength 500N
Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C


Order Information:

MPO/UPC-MPO/UPC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
① Connector type: FC, SC, LC, ST, MTRJ, MU,MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP

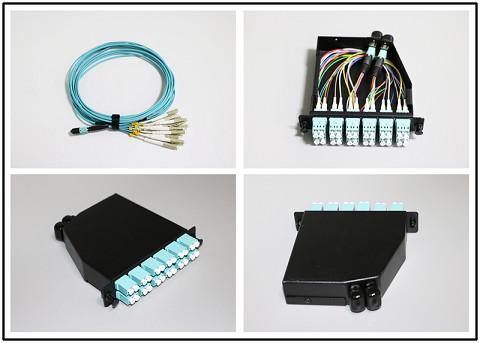

Product Picture:
24 Core OM4 Fiber Optic Patch Cord For MPO Cassettes
