2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
2*32 PLC Fiber Optic Splitter For FTTH Network
Specifications
Brand Name :
Fujioptics/OEM/ODM
Model Number :
FJ-SC01668
Certification :
ROHS.CE ,ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, D/P, Western Union
Supply Ability :
10000pcs
Delivery Time :
5-7 working days
Packaging Details :
PE bag ,Carton box
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
PC, UPC,APC
Fiber Type :
G652D G657A1 G657A2
Fiber Mode :
Singlemode
Package :
Steel Tube, ABS
Structure :
2x32
High Light :
optical fiber splitter, fiber optic plc splitter
Description

2*32 PLC Fiber Optic Splitter for FTTH Network

Description:

PLC Fiber optic splitter is a micro-optical element using photolithographic techniques to form optical waveguide at medium or semiconductor substrate for realizing branch distribution function

Feature:

Good high temperature low temperature performance

Convenient engineering applications

Tight and fine structure
Excellent parameters on IL & RL

High reliability and directivity

Non-sensitive wavelength

Fine polarization

Wide scope wavelength

Application:

FTTX (FTTB, FTTH, FTTC) Systems

Optical Signal Distribution

Fiber optical sensors

Passive Optical Network (PON)

Cable Television (CATV)

Fiber optical communication system

Specification:


Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

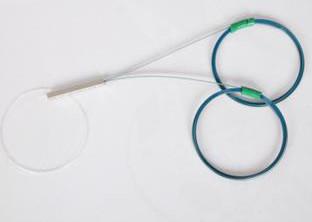

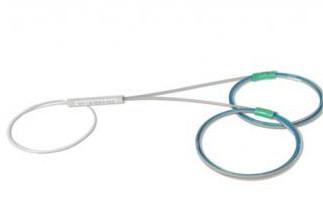

Product Picture:

2*32 PLC Fiber Optic Splitter For FTTH Network
