2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
Specifications
Brand Name :
Fujioptics/OEM/ODM
Model Number :
FJ-SC01668
Certification :
ROHS.CE ,ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, D/P, Western Union
Supply Ability :
10000pcs
Delivery Time :
5-7 working days
Packaging Details :
PE bag ,Carton box
Connector Type :
SC,FC,LC,ST
Ferrule End-face :
PC, UPC,APC
Fiber Type :
G652D G657A
Fiber Mode :
SM MM
Package :
Steel Tube, ABS
Structure :
1*2/1*4/1*8/1*16/1*32/1*64
High Light :
optical fiber splitter, fiber optic coupler
Description

2x4 PLC Fiber optic Splitter for CWDM System with 250um Bare Fiber

Description:

PLC Fiber Optic Splitter, is based on a quartz substrate of integrated waveguide optical power distribution device, the same as coaxial cable transmission system, The optical network system also needs to be an optical signal coupled to the branch distribution, which requires the fiber optic splitter.

Feature:

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength:

From 1260nm to 1620nm

Wide Operating Temperature:

From -40°C to 85°C

High Reliability and Stability

Application:

FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Fiber optic communication system
FTTX access network based on PON structure

Specification:

Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

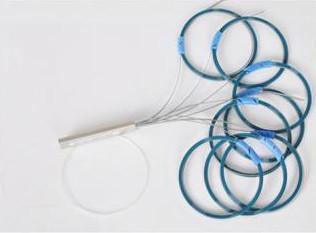

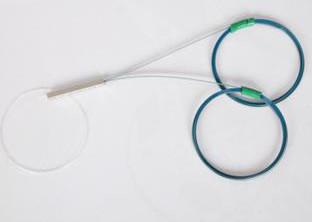

Product Picture:

2*4 250um Bare Fiber Optic PLC Splitter For CWDM System
