19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
Specifications
Brand Name :
Fujioptics/OEM/ODM
Model Number :
FJ-SC0122
Certification :
ROHS.CE ,ISO9001
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, D/P, Western Union
Supply Ability :
10000pcs
Delivery Time :
5-7 working days
Packaging Details :
PE bag ,Carton box
Connector Type :
SC
Ferrule End-face :
APC
Fiber Type :
G652D G657A1 G657A2
Fiber Mode :
Singlmode
Package :
Steel Tube, ABS
Structure :
1x32 2x32
High Light :
optical fiber splitter, fiber optic coupler
Description

19 inch Rack Mounted Splitter Box with SC / APC PLC Fiber Splitter

Description:

Rack mounted Splitter Box is of 19" interface design

Used for installation of various of splitter
Meet need of signal distribution and management in passive optical network

TTI provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.

Feature:

19" standard installation, adjustable position in forward and backward direction, applicable for various of cabinet and rack's installation.

Compact aluminum body with electrostatic spraying surface, light structure and fine-looking appearance
Protection of arc shaped plastic part, prevent optical fiber from damage or strain.
Kinds adapter panels makes it convenient and flexible in usage.
Large tray body, customized output panel for pigtail is available.

Application:

Fiber to the point (FTTX)

Fiber to the home (FTTH)

Passive optical networks(PON, GEPON)

Local area networks (LAN)

Cable television (CATV)

Test Equipment

Specification:


Table 1 – 1×N PLC Fiber Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Table 2 – 2×N PLC Fiber Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260～1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40～85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40～85
Storage Temperature (℃) -40～85
Package Steel Tube or ABS

Notes:

  1. Specified without connectors.
  2. Add an additional 0.15dB loss per connector

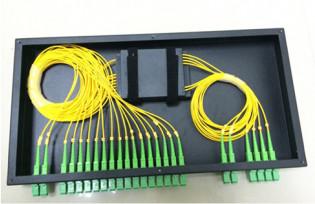

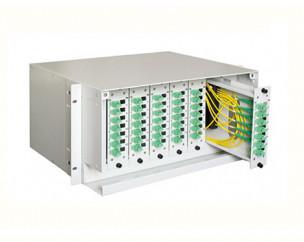

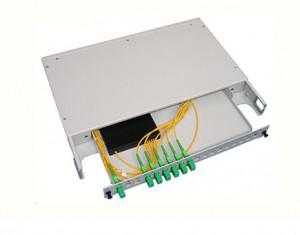

Product Picture:

19 Inch Rack Mounted Splitter Box With SC APC PLC Fiber Splitter
