LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
Specifications
Brand Name :
Fuji
Model Number :
SC/APC Connector
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
3~7 work days
Packaging Details :
plastic zip bag and carton
Transmission Medium :
Single-Mode
Number of Cores :
Single-Core
Fabrication Process :
Moulded
Application :
Fiber Distribution Frame, Network Equipment, Fiber Module
Cable type :
0.9mm, 2.0mm and 3.0mm
HS Code :
8544700000
Description

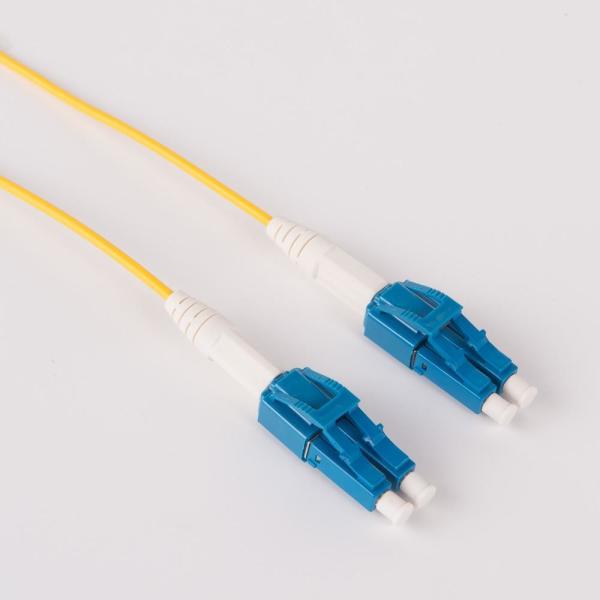

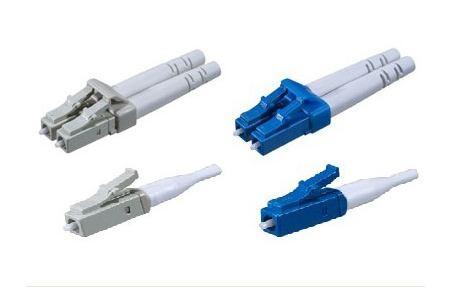

LC PC / APC Single Mode Multi Mode Simplex Duplex Fiber Optic Connector

The LC connector licensed by Lucent Technologies provides a pull-proof design and small size perfect for high-density applications. Available in simplex or duplex versions. The LC connector is provided with a 1.25mm zirconia ferrule. The LC also incorporates a unique latching mechanism providing stability in system rack mounts.

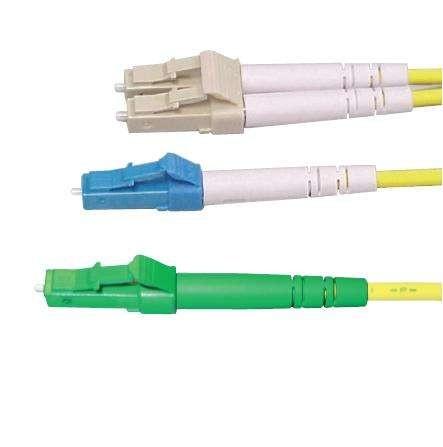

LC connectors come in single mode and multi-mode tolerances. For single mode, it also features LC/UPC and LC/APC polish. And LC/APC Connector has a 8 degree angle to minimize back reflection and can be easily recognized by its green colored housing and strain relief boot.


APPLICATIONS


· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)

FEATURE


Low insertion loss and back reflection
One-piece construction and pull-proof design
Free-floating pre-radiuses ceramic ferrule
Precision anti-rotation key and Corrosion resistant body
Variety of boot types and colors

Parameter

Type LC Fiber Count Simplex
Insertion Loss ≤0.2dB Fiber Mode Singlemode
Return loss >50dB (UPC) Boot Size 0.9mm/2.0mm/3.0mm

LC PC / APC Single Mode Fiber Connectors Single Core Multi Mode Simplex Duplex
