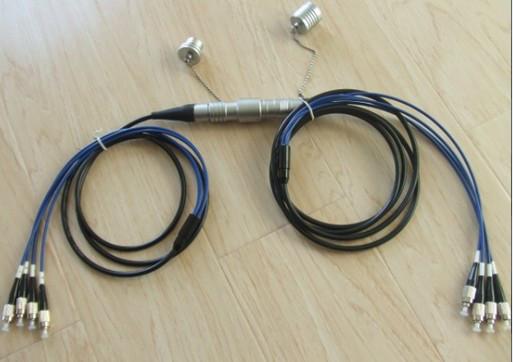

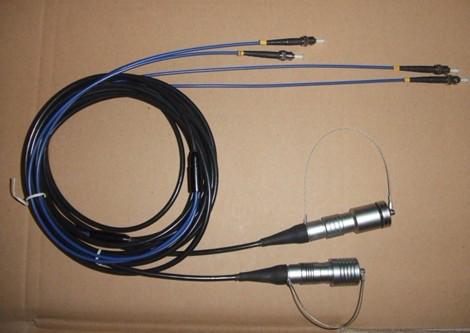

Military tactical fiber optical cable is a kind of non-metal optical cable which can be quickly retrieved and replaced in the field

and harsh environment. It is specially designed for rapid deployment or repeated deployment in field and complex environments.

Outdoor Armoured Fiber Patch Cord Introduction:

1. Outdoor patch cord, FC/UPC-LC/UPC, armored cable(outdoor type), 6 cores, 5.0mm(0.6mm inside), LSZH jacket; with metal fanout kit, without armor tube on breakouts.

2. Outdoor patch cord, FC/UPC-LC/UPC, armored cable(outdoor type), SM G657A1, 12 cores, 5.8mm(0.6mm inside), 20m, LSZH jacket; with metal fanout kit, without armor tube on breakouts.

3. Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection

tube which saves space and is quite convenient for maintenance. Also it has the construction including

stainless steel tube which protects optical fiber and provide better security for the whole system.

Armored tactical cable features strong tensile strength, strong pressure resistance and good flexibility characteristics. Besides, it is bending resistant, oil resistant, wear resistant and flame retardant. Therefore, armored tactical cable is ideal for both indoor and outdoor applications, such as rapid wiring or repeated retrieval in military field or connecting the networks of two buildings either through the use of an underground conduit or not.

Application:

Used for military networks, industrial Ethernet, combat vehicles and other harsh environment

Characterisics:

• Protection of stainless steel tube with small caliber.
• Avoid the damage of torsion.
• High tensile coefficient and stress coefficient.
• Convenient for application, highly security.
• Application without damage to cable.
• Manufacture without damage to cable.
• Cost cutting for maintenance.

Structure of the armored cable:

Specification of armored cable:

Tight-buffered fiber: SM or MM; 0.6mm tight-buffered fiber
General attenuation: SM-- 1310 nm≤0.35dB/km; 1550 nm≤0.25dB/km
MM-- 850 nm≤3.0dB/km; 1300 nm≤1.0dB/km

Armor:
Material: stainless steel
Gap (p): 0.25±0.02 mm
Compression resistant strength: ≥300KGf/100MM

Aramid yarn:
Tensile strength: Short term: ≥300N: long term:≥150N.

Jacket:
Material:PVC/LSZH /OFNP/ PE
Outer diameter: 5.0±0.1mm

1. FC/UPC connector, 6 12 cores
2. Breakouts, 2.0mm LSZH tubes, without armor tube
3. Fanout kit, metal, with heat shrink tube covered
4. Armored cable, outdoor type, 6cores, 5.0mm(OD)
5. LC/UPC connector, 6 cores 12 cores
