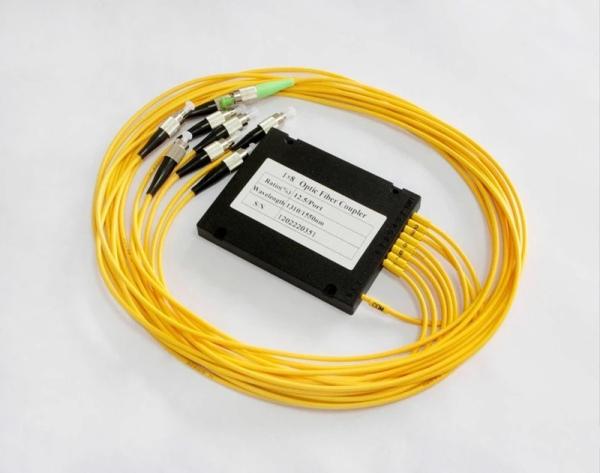

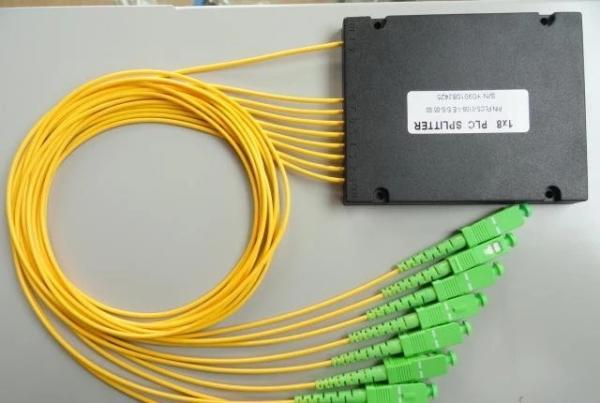

ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type
ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type
ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type
ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type
Specifications
Brand Name :
Fujioptic
Model Number :
PLC-008
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Wuhan, China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
3~7 work days
Packaging Details :
plastic zip bag and carton
Connector Type :
SC LC FC ST
Polish Type :
PC / APC
Configuration Type :
1x2 1x4 1x8 1x16 1X32 1X64 or 1XN
Fiber Mode :
SM MM
Fiber Diameter :
2.0mm 3.0mm 0.09mm
Application :
CATV FTTH PON systems
Description

FC / SC / LC ST Connector ABS Box Fiber Optic Splitter PLC Splitter

1. Feature

Good uniformity and low insertion loss
Low polarization dependent loss
Excellent environmental stability
Excellent mechanical
Compact design,suitable for installation in optical equipment
Wide operating temperature:-40~85 ℃
High reliability and stability

2. Specification

Parameter Unit Value
Product Type 1×2 1×3 1×4 1×6 1×8 1×12 1×16 1×24 1×32 1×64 1×128
Operation Wavelength nm 1260~1650
Insertion Loss Typ. dB 3.6 6 7 9.2 10.3 12.2 13.6 15.8 16.6 20.1 24.5
Max. 4.3 6.2 7.4 9.5 10.7 12.5 13.9 16 17.2 21.5 25.5
Uniformity (Max.) dB 0.5 0.6 0.8 0.8 0.8 1.2 1.4 1.5 1.5 2 2.6
PDL(Max.) dB 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.5 0.8
TDL(Max.) dB 0.5
Return Loss dB ≥55/50
Directivity dB ≥55
Operating Temperature ℃ -40~85
Storage Temperature ℃ -40~85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93

3. Application

ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type

ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type

ABS Box Fiber Optic Splitter Wide Operating Temperature FC / LC ST Connector Type
