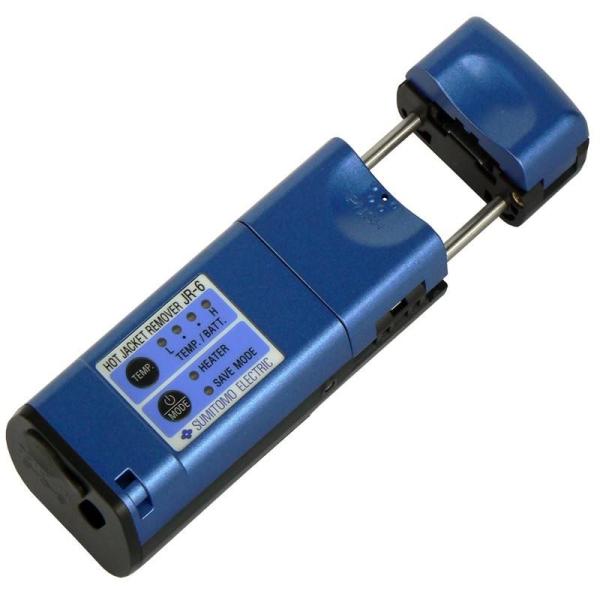

Shock Resistant Hot Jacket Remover Battery Operate For Single Optical Fiber And Ribbon
Shock Resistant Hot Jacket Remover Battery Operate For Single Optical Fiber And Ribbon
Specifications
Brand Name :
Sumitomo
Model Number :
JR-6
Certification :
ROHS, REACH, UL, ISO
Place of Origin :
Japan
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000 pcs per month
Delivery Time :
10~15 work days
Packaging Details :
plastic zip bag and carton
Applicable Fiber :
Single / 2 to 12 Ribbon Fiber
Coating Removal Length :
Max.30mm
Power Source :
Battery / DC / AC
Operating Duration :
Approximately 10 Hours
Size :
45(W) × 138(D)× 38(H) mm
Weight :
235g (Including Battery)
Description

Thermal Jacket Remover, for Single Optical Fiber and Ribbon

Feature:

  • Lightweight, Shock Resistant, Portable, Rugged Design
  • Easy Fiber Coating Removal
  • 3-Way Power Supply (Battery,AC/DC, and Fusion Splicer’sht:nn12V DC Output)
  • Rechargeable Lithium-Ion Battery.
  • The control panel is located in the front of the wire stripping pliers,,easy to operate.
  • Various LED light is easy to confirmed the condition about thewire stripping pliers.
  • Field Replaceable Blades
  • Save electricity and automatic power off function.

Specification:

Applicable Fiber Optical Fiber Material
Silica Glass
Fiber Count Coating Thickness
Single Fiber: Fiber Coating 250 ~ 400µm
2 to 12 Ribbon Fiber: Coating Thickness 300 ~ 400µm
Cladding Diameter
125µm
Coating Removal
Length		 Max.30mm
Power Source Battery Operation (with BU-JR6B):
Nominal Voltage 7.4V; Nominal Capacity 1620mAh
DC Operation (Power Supplied from Fusion Splicer):
DC9~15V
AC Operation (with ADC-1220S):
AC100~240V, 50/60Hz
Operating Duration Approximately 10 Hours
Number of Removal
Cycles		 Approximately 200 on Fully Charged Battery
Battery Charging Time Approximately 2 Hours
Function Temperature Settings: 4 levels
Power Saving Function: Normal Mode / Power Save Mode
Battery Remaining Capacity is Indicated in One of Four
Levels when JR-6 is Powered On.
Environmental
Conditions		 Operating Condition
Operating Temperature: 0° ~ +40°,
Humidity: 0% ~ 95% (Non-Condensing)
Storage Condition:
Storage Temperature: -40° ~ +60°,
Humidity: 0% ~ 95% (Non-Condensing)
Size 45(W) × 138(D)× 38(H) mm
Weight 235g (Including Battery)

Note:

1. when use the TYPE-25e Fusion Splicer OfSUMITOMOELECTRICFusion Splicer

2. For DC power supply, using the specialized DC power cord.

Shock Resistant Hot Jacket Remover Battery Operate For Single Optical Fiber And Ribbon
