QSFP28-4SFP28 Active Optical Cable With Fiber Optic Transceiver Module
QSFP28-4SFP28 Active Optical Cable With Fiber Optic Transceiver Module
QSFP28-4SFP28 Active Optical Cable With Fiber Optic Transceiver Module
QSFP28-4SFP28 Active Optical Cable With Fiber Optic Transceiver Module
Specifications
Brand Name :
Fujioptic
Model Number :
100G QSFP28-4SFP28
Certification :
RoHS 6 compliant
Place of Origin :
Wuhan, China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
3~7 work days
Packaging Details :
plastic zip bag and carton
Fiber Type :
OM3/OM4 MM
Transmission Distance :
≤100M
Data Rate :
100G
Description

QSFP28-4SFP28 AOC 100G Active Optical Cable fiber cable optical transceiver module manufacturer

Product Description

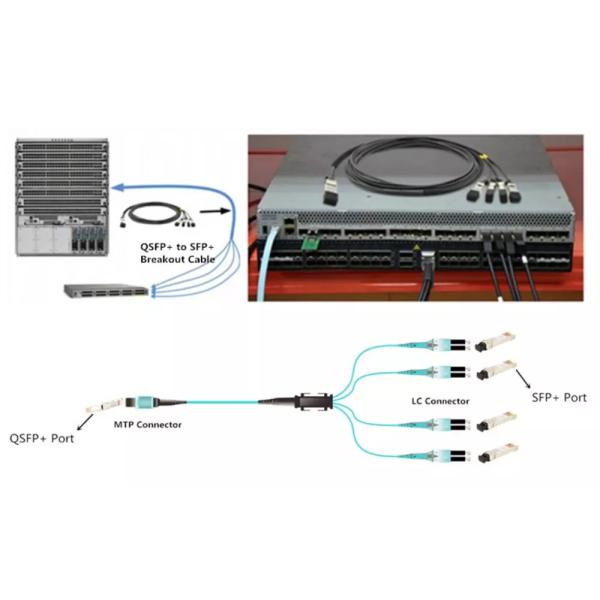

QSFP28-4SFP28-AOC active optical cable, integrated four data channels, the total bandwidth of 100Gbps. 4 transmission channels, each channel can run at 25.3125 Gbps. QSFP + to 4x SFP + AOC cables are 100GBase QSFP + hybrid cables. One end is a QSFP + optical connector and the other end is a 4 SFP + optical connector. Transmission distance of not more than 100 meters. The fiber optic cable is a high-performance module for short-range multi-channel data communications and interconnect applications.

Features

• OM3/OM4 MMF optical cable

• Full duplex 4 channel 850nm parallel active optical cable

• Transmission data rate up to 25.3125Gbit/s per channel

• SFF-8665 QSFP+ compliant housing and hot pluggable electrical interface

• Management Interface and digital diagnostic monitoring(DDM) through I2C

• 4ch 850nm 25G VCSEL array

• 4ch 25G PIN photo detector array

• Support serial ID function through EEPROM

• Power consumption less than 2.5W

• Operating case temperature 0ºC to +70ºC

• 3.3V power supply voltage

• RoHS 6 compliant

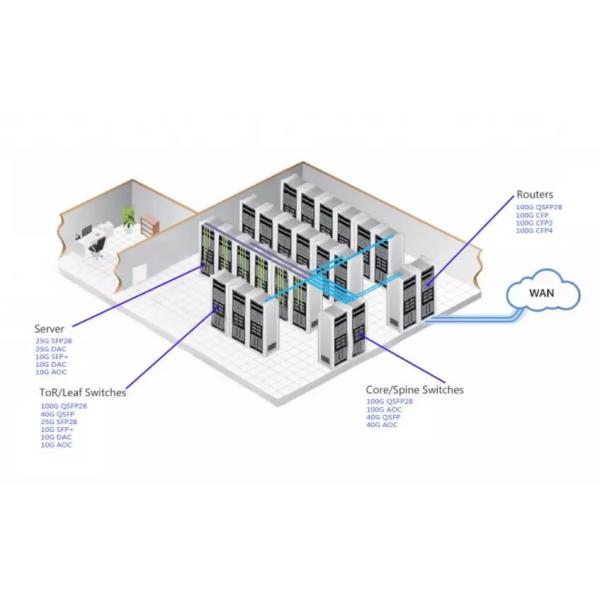

Application

• Switch / router / HBA / SAN, NIC card

• Servers and storage devices

• Data center network

• Fiber Channel

• InfiniBand FDR/EDR

• 100Gbs Ethernet

QSFP28-4SFP28 Active Optical Cable With Fiber Optic Transceiver Module

QSFP28-4SFP28 Active Optical Cable With Fiber Optic Transceiver Module
