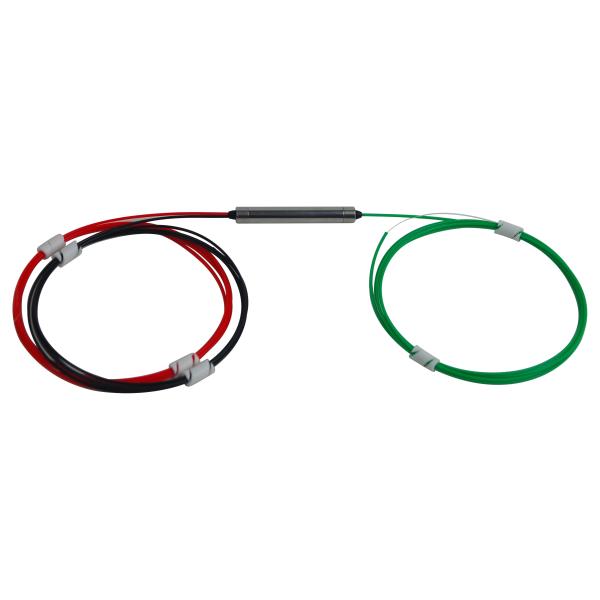

In Line Fiber Optic Isolator EDFA Wide Band High Isolation 3 Ports 1 x 2 Polarization Insensitive
In Line Fiber Optic Isolator EDFA Wide Band High Isolation 3 Ports 1 x 2 Polarization Insensitive
Specifications
Brand Name :
Fujioptic
Model Number :
PM-003
Certification :
IEC/RoHS/SGS
Place of Origin :
Wuhan, China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
3~7 work days
Packaging Details :
plastic zip bag and carton
Connector Type :
LC / UPC
Material :
Fiber
Configuration :
Port 1 to 2 to 3
Wavelength :
845-860
Application :
EDFA,Test Equipment
OEM :
Accept
Description

EDFA Wide Band High Isolation 3 Ports 1 x 2 Polarization Insensitive Fiber Optic In-Line Isolator

Features:

. High Isolation

. LOW Isolation Loss

. Low PDL t

. High Return loss

Applications:

. EDFA

. Fiber Laser

. est Instrument

. Fiber Sensor

Parameters Unit Single Stage Dual Stage
Operating Wavelength nm 1310,1480,1550,1600
Isolation(λc±20nm,23℃,all SOP) dB ≥27 ≥50
Isolation(λc±20nm,0~70℃,all SOP) dB ≥20 ≥40
Insertion Loss(λc±20nm,23℃,all SOP) dB ≤0.3 ≤0.4
Insertion Loss(λc±20nm,0~70℃,all SOP) dB ≤0.5 ≤0.6
PDL dB ≤0.05 ≤0.1
PDM Ps ≤0.25 ≤0.05
Return Loss dB ≥60 ≥60
Maximum Power Handing mW 300
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85

Package Dimension

mm

 SB:φ4.5×35
SL:φ5.5×40
CB:φ3×25
CL:φ3×25

1. ALL specification include the effect of all states of polarization.

2. Values referenced without connectors,insertion loss for a connector-pair is 0.20dB to 0.30dB.

3. Package dimension excludes rubber boot.
